centroid
polyshape
の重心
説明
例
多角形の重心
複数の領域がある多角形に関連付けられた重心を計算します。

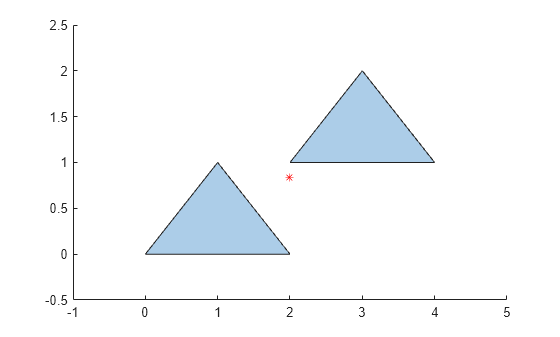

2 つの固体領域をもつ多角形を作成し、その重心を計算します。
x1 = [0 1 2]; y1 = [0 1 0]; x2 = [2 3 4]; y2 = [1 2 1]; polyin = polyshape({x1,x2},{y1,y2}); [x,y] = centroid(polyin); plot(polyin) hold on plot(x,y,'r*') hold off
各領域の重心を個別に計算するには、2 番目の引数で各領域の境界インデックスを指定します。
[x,y] = centroid(polyin,[1 2]); plot(polyin) hold on plot(x(1),y(1),'r*',x(2),y(2),'r*') hold off
あるいは、最初に領域を個別の polyshape
オブジェクトに分離して各領域の重心を計算することもできます。関数 regions
を使用して、polyshape
オブジェクトの配列を作成します。この配列の各要素は、三角形領域のうちの 1 つを定義する polyshape
です。
polyarray = regions(polyin)
polyarray = 2x1 polyshape array with properties: Vertices NumRegions NumHoles
[x,y] = centroid(polyarray)
x = 2×1
1
3
y = 2×1
0.3333
1.3333
入力引数
polyin
— 入力 polyshape
スカラー | ベクトル | 行列 | 多次元配列
入力 polyshape
。スカラー、ベクトル、行列または多次元配列として指定します。
データ型: polyshape
I
— 境界インデックス
スカラー整数 | 整数のベクトル
境界インデックス。スカラー整数または整数のベクトルとして指定します。I
の各要素は、入力 polyshape
の 1 つの境界に対応します。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
出力引数
x
— x 座標
スカラー | ベクトル | 行列 | 多次元配列
polyshape
の重心の x 座標。スカラー、ベクトル、行列または多次元配列として返されます。入力が polyshape
オブジェクトの配列である場合、x
には各 polyshape
の重心の x 座標が含まれます。
y
— y 座標
スカラー | ベクトル | 行列 | 多次元配列
polyshape
の重心の y 座標。スカラー、ベクトル、行列または多次元配列として返されます。入力が polyshape
オブジェクトの配列である場合、y
には各 polyshape
の重心の y 座標が含まれます。
バージョン履歴
R2017b で導入
