# mapclip

## Description

clips the specified planar point, line, or polygon shapes to the specified
`clipped`

= mapclip(`shape`

,`xlimits`

,`ylimits`

)*xy*-limits. Specify the shapes using `shape`

, the
*x*-limits using `xlimits`

, and the
*y*-limits using `ylimits`

.

To crop raster data that is represented by an array and a map raster reference object,
use the `mapcrop`

function
instead.

clips the shapes to the specified clipper polygon.`clipped`

= mapclip(`shape`

,`clipperPolygon`

)* (since R2024b)*

## Examples

### Clip Planar Shapes to *xy*-Limits

Read hydrography data as a geospatial table. Extract the polygon shape for a pond.

```
hydro = readgeotable("concord_hydro_area.shp");
shape = hydro.Shape(14)
```

shape = mappolyshape with properties: NumRegions: 1 NumHoles: 3 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]

Specify the *xy*-limits and clip the shape.

xlimits = [207736 208212]; ylimits = [912283 912636]; clipped = mapclip(shape,xlimits,ylimits);

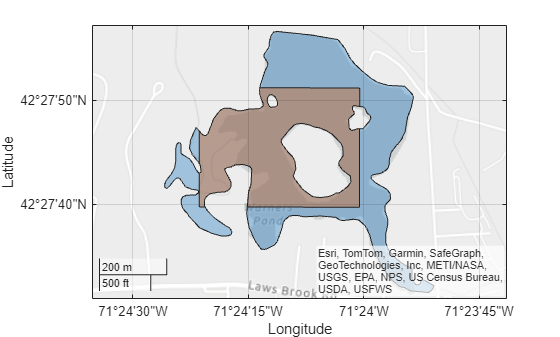

Display the shape and the clipped shape on a map.

```
figure
geoplot(shape)
hold on
geoplot(clipped)
```

### Clip Planar Shape to Polygon

*Since R2024b*

Read road data for an area in Boston as a geospatial table. The table represents the roads using line shapes in planar coordinates. Extract the line shapes.

```
roads = readgeotable("boston_roads.shp");
shape = roads.Shape
```

`shape=`*2795×1 maplineshape array with properties:*
NumParts: [2795×1 double]
Geometry: "line"
CoordinateSystemType: "planar"
ProjectedCRS: [1×1 projcrs]
⋮

Specify the clipper polygon. Create a geospatial table that contains a point shape object for a named location in Boston. Then, define an area of interest (AOI) by creating a circle with a radius of 1000 meters that is centered on the point shape.

places = readgeotable("boston_placenames.shp"); flagstaff = geocode("FLAGSTAFF HILL",places); clipperPolygon = aoicircle(flagstaff,1000)

clipperPolygon = mappolyshape with properties: NumRegions: 1 NumHoles: 0 Geometry: "polygon" CoordinateSystemType: "planar" ProjectedCRS: [1×1 projcrs]

Verify that the road data and the AOI use the same projected coordinate reference system (CRS).

isequal(shape.ProjectedCRS,clipperPolygon.ProjectedCRS)

`ans = `*logical*
1

Clip the road data to the AOI.

clipped = mapclip(shape,clipperPolygon);

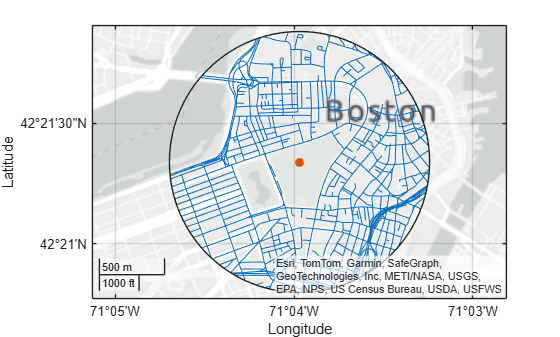

Create a map that displays the clipped road data, the named location, and the AOI.

figure geoplot(clipped,LineWidth=0.8) hold on geoplot(flagstaff,MarkerSize=20) geoplot(clipperPolygon,FaceColor="none")

### Remove Shapes with No Coordinate Data from Output

Read the names and locations of places in Boston as a geospatial table. Extract the point shapes.

```
places = readgeotable("boston_placenames.shp");
shape = places.Shape
```

shape = 13x1 mappointshape array with properties: NumPoints: [13x1 double] X: [13x1 double] Y: [13x1 double] Geometry: "point" CoordinateSystemType: "planar" ProjectedCRS: [1x1 projcrs]

Specify the *xy*-limits and clip the shapes.

xlimits = [235226 237174]; ylimits = [900179 901059]; clipped = mapclip(shape,xlimits,ylimits);

When a point shape lies outside the specified limits, the clipped shape has no coordinate data and the `NumPoints`

property is `0`

. Remove shapes with no coordinate data from the clipped shapes.

idx = clipped.NumPoints ~= 0; clipped = clipped(idx)

clipped = 5x1 mappointshape array with properties: NumPoints: [5x1 double] X: [5x1 double] Y: [5x1 double] Geometry: "point" CoordinateSystemType: "planar" ProjectedCRS: [1x1 projcrs]

When a line or polygon shape has no coordinate data, its respective the `NumParts`

or `NumRegions`

property is `0`

.

### Clip Projected Shape Using Geographic Limits

If your shape is in projected coordinates and your limits are in geographic coordinates, then you must project the geographic coordinates before clipping the shape. To use this approach:

You must know the projected coordinate reference system (CRS) for the shape. You can determine whether a shape object is associated with a projected CRS by querying the

`ProjectedCRS`

property.The projection method for the CRS must result in

*x*-coordinates and*y*-coordinates that run approximately west-to-east and south-to-north, respectively, such as transverse Mercator or Lambert Conic Conformal. This approach is not valid for projection methods such as polar stereographic. You can find the projection method for a projected CRS object by querying the`ProjectionMethod`

property.

Read road data for an area in Concord, MA as a geospatial table. Extract the line shapes.

```
roads = readgeotable("concord_roads.shp");
shape = roads.Shape
```

`shape=`*609×1 object*
16×1 maplineshape array with properties:
NumParts: [16×1 double]
Geometry: "line"
CoordinateSystemType: "planar"
ProjectedCRS: [1×1 projcrs]
⋮

Verify that the shape has a projected CRS with an appropriate projection method.

crs = shape.ProjectedCRS

crs = projcrs with properties: Name: "NAD83 / Massachusetts Mainland" GeographicCRS: [1×1 geocrs] ProjectionMethod: "Lambert Conic Conformal (2SP)" LengthUnit: "meter" ProjectionParameters: [1×1 map.crs.ProjectionParameters]

Specify the latitude and longitude limits using geographic coordinates. Project the latitude and longitude limits to *xy*-limits by using the projected CRS and the `projfwd`

function.

latlim = [42.4657 42.4687]; lonlim = [-71.3996 -71.3946]; [xlimits,ylimits] = projfwd(crs,latlim,lonlim);

Clip the shapes.

clipped = mapclip(shape,xlimits,ylimits);

Display the clipped shapes on a map. Compare the limits you specified with the limits of the plot by setting the tick format to decimal degrees.

```
figure
geoplot(clipped)
geotickformat("dd")
```

## Input Arguments

`shape`

— Shape

`mappointshape`

, `maplineshape`

, or
`mappolyshape`

object | array of `mappointshape`

, `maplineshape`

, or
`mappolyshape`

objects

Shape, specified as a `mappointshape`

,
`maplineshape`

, or
`mappolyshape`

object or as an array of `mappointshape`

, `maplineshape`

,
or `mappolyshape`

objects. When you specify an array, you can include a
combination of point, line, and polygon shape objects.

`xlimits`

— *x*-limits

two-element vector

*x*-limits, specified as a two-element vector of the form
`[xmin xmax]`

, where `xmax`

is greater than
`xmin`

.

The units of `xlimits`

must match the units of
`shape`

. If the `ProjectedCRS`

property of
`shape`

contains a `projcrs`

object,
you can find the units by querying the `LengthUnit`

property of the
`projcrs`

object, for example
`shape.ProjectedCRS.LengthUnit`

.

`ylimits`

— *y*-limits

two-element vector

*y*-limits, specified as a two-element vector of the form
`[ymin ymax]`

, where `ymax`

is greater than
`ymin`

.

The units of `ylimits`

must match the units of
`shape`

. If the `ProjectedCRS`

property of
`shape`

contains a `projcrs`

object,
you can find the units by querying the `LengthUnit`

property of the
`projcrs`

object, for example
`shape.ProjectedCRS.LengthUnit`

.

`clipperPolygon`

— Clipper polygon

`mappolyshape`

object

*Since R2024b*

Clipper polygon, specified as a `mappolyshape`

object.

The `ProjectedCRS`

properties of
`clipperPolygon`

and `shape`

must be equal,
unless one of the `ProjectedCRS`

properties is empty.

## Output Arguments

`clipped`

— Clipped shape

`mappointshape`

, `maplineshape`

, or
`mappolyshape`

object | array of `mappointshape`

, `maplineshape`

, or
`mappolyshape`

objects

Clipped shape, returned as a `mappointshape`

,
`maplineshape`

, or
`mappolyshape`

object or as an array of `mappointshape`

, `maplineshape`

,
or `mappolyshape`

objects.

`clipped`

has the same type and size as
`shape`

.

If an element of `shape`

lies completely outside the specified
limits, then the corresponding element of `clipped`

does not contain
coordinate data. When a point, line, or polygon shape does not contain coordinate data,
its respective `NumPoints`

, `NumParts`

, or
`NumRegions`

property is `0`

.

## Tips

If you clip a shape within a geospatial table, the function does not modify any attributes of the table.

## Version History

**Introduced in R2022a**

### R2024b: Clip shape objects to polygon

Clip point, line, and polygon shape objects to a polygon shape.
