lteDLConformanceTestTool

Opens the LTE Throughput Analyzer app for performing downlink PDSCH demodulation conformance tests

collapse all in page

Syntax

lteDLConformanceTestTool

Description

lteDLConformanceTestTool opens the LTE Throughput Analyzer app for performing downlink PDSCH demodulation conformance tests as defined in TS 36.101 [1].

The throughput performance graphs update dynamically during the simulation run and provides an early understanding system behavior for a given setup. For more information, see LTE Throughput Analyzer.

example

Examples

collapse all

Open Live Script
lteDLConformanceTestTool

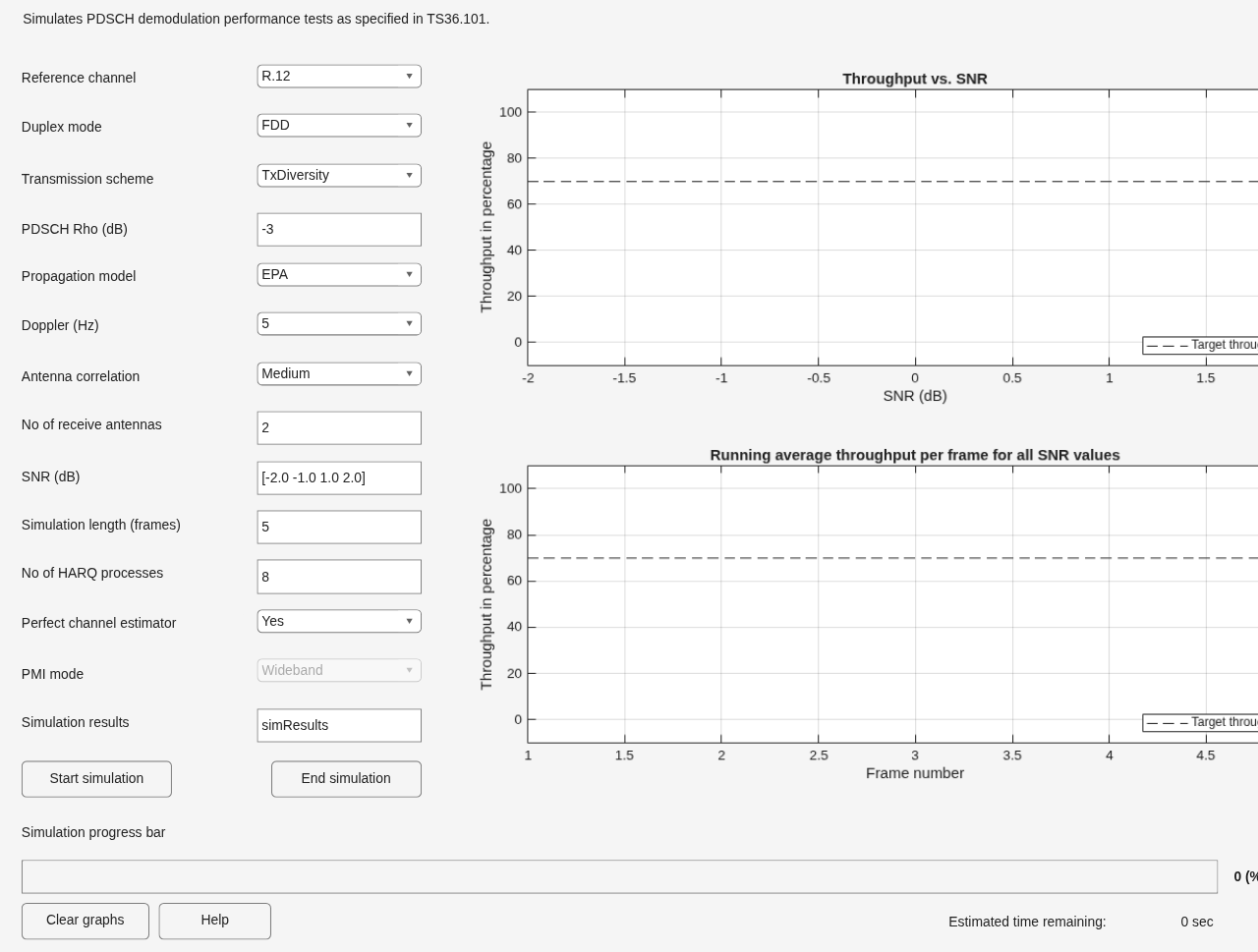

Figure LTE PDSCH Conformance Testing contains 2 axes objects and other objects of type uicontrol, uipanel. Axes object 1 with title Throughput vs. SNR, xlabel SNR (dB), ylabel Throughput in percentage contains an object of type line. This object represents Target throughput. Axes object 2 with title Running average throughput per frame for all SNR values, xlabel Frame number, ylabel Throughput in percentage contains an object of type line. This object represents Target throughput.

The LTE PDSCH Conformance Testing user interface opens.

References

[1] 3GPP TS 36.101. “Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE) Radio Transmission and Reception.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network. URL: https://www.3gpp.org.

Version History

Introduced in R2014a
