The command-line interface enables you to run the genetic algorithm
many times, with different options settings, using a file. For example,
you can run the genetic algorithm with different settings for Crossover
fraction to see which one gives the best results. The following
code runs the function
ga 21 times, varying
0.05, and records the results.
options = optimoptions('ga','MaxGenerations',300,'Display','none'); rng default % for reproducibility record=; for n=0:.05:1 options = optimoptions(options,'CrossoverFraction',n); [x,fval]=ga(@rastriginsfcn,2,,,,,,,,options); record = [record; fval]; end
You can plot the values of
fval against the
crossover fraction with the following commands:
plot(0:.05:1, record); xlabel('Crossover Fraction'); ylabel('fval')

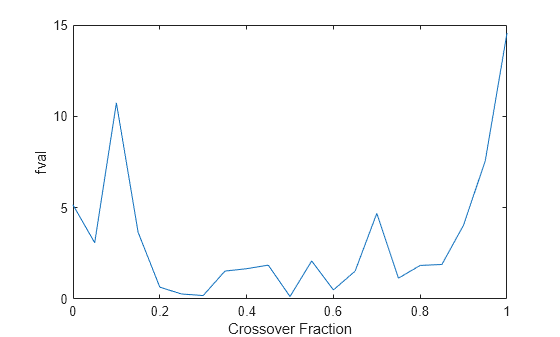

The following plot appears.
The plot suggests that you get the best results by setting
a value somewhere between
You can get a smoother plot of
fval as a
function of the crossover fraction by running
times and averaging the values of
fval for each

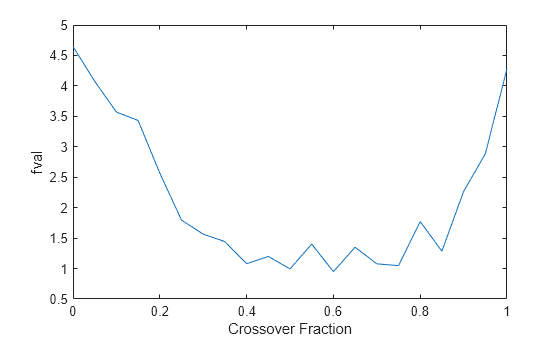

crossover fraction. The following figure shows the resulting plot.
This plot also suggests the range of best choices for
