tunefis

Tune fuzzy inference system or tree of fuzzy inference systems

Syntax

``fisOut = tunefis(fisIn,paramset,in,out)``
``fisOut = tunefis(fisIn,paramset,custcostfcn)``
``fisOut = tunefis(___,options)``
``[fisOut,summary] = tunefis(___)``

Description

````fisOut = tunefis(fisIn,paramset,in,out)` tunes the fuzzy inference system `fisin` using the tunable parameter settings specified in `paramset` and the training data specified by `in` and `out`.```

example

````fisOut = tunefis(fisIn,paramset,custcostfcn)` tunes the fuzzy inference system using a function handle to a custom cost function, `custcostfcn`.```
````fisOut = tunefis(___,options)` tunes the fuzzy inference system with additional options from the object `options` created using `tunefisOptions`.```

example

````[fisOut,summary] = tunefis(___)` tunes the fuzzy inference system and returns additional information about the tuning algorithm in `summary`.```

Examples

collapse all

Create the initial fuzzy inference system using `genfis`.

```x = (0:0.1:10)'; y = sin(2*x)./exp(x/5); options = genfisOptions('GridPartition'); options.NumMembershipFunctions = 5; fisin = genfis(x,y,options);```

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

`[in,out,rule] = getTunableSettings(fisin);`

Tune the membership function parameters with `"anfis"`.

`fisout = tunefis(fisin,[in;out],x,y,tunefisOptions("Method","anfis"));`
```ANFIS info: Number of nodes: 24 Number of linear parameters: 10 Number of nonlinear parameters: 15 Total number of parameters: 25 Number of training data pairs: 101 Number of checking data pairs: 0 Number of fuzzy rules: 5 Start training ANFIS ... 1 0.0694086 2 0.0680259 3 0.066663 4 0.0653198 Step size increases to 0.011000 after epoch 5. 5 0.0639961 6 0.0626917 7 0.0612787 8 0.0598881 Step size increases to 0.012100 after epoch 9. 9 0.0585193 10 0.0571712 Designated epoch number reached. ANFIS training completed at epoch 10. Minimal training RMSE = 0.0571712 ```

Create the initial fuzzy inference system using `genfis`.

```x = (0:0.1:10)'; y = sin(2*x)./exp(x/5); options = genfisOptions('GridPartition'); options.NumMembershipFunctions = 5; fisin = genfis(x,y,options); ```

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

`[in,out,rule] = getTunableSettings(fisin);`

Tune the rule parameter only. In this example, the pattern search method is used.

`fisout = tunefis(fisin,rule,x,y,tunefisOptions("Method","patternsearch"));`
```Iter Func-count f(x) MeshSize Method 0 1 0.346649 1 1 15 0.346649 0.5 Refine Mesh 2 33 0.346649 0.25 Refine Mesh 3 51 0.346649 0.125 Refine Mesh 4 69 0.346649 0.0625 Refine Mesh 5 87 0.346649 0.03125 Refine Mesh 6 105 0.346649 0.01562 Refine Mesh 7 123 0.346649 0.007812 Refine Mesh 8 141 0.346649 0.003906 Refine Mesh 9 159 0.346649 0.001953 Refine Mesh 10 177 0.346649 0.0009766 Refine Mesh 11 195 0.346649 0.0004883 Refine Mesh 12 213 0.346649 0.0002441 Refine Mesh 13 231 0.346649 0.0001221 Refine Mesh 14 249 0.346649 6.104e-05 Refine Mesh 15 267 0.346649 3.052e-05 Refine Mesh 16 285 0.346649 1.526e-05 Refine Mesh 17 303 0.346649 7.629e-06 Refine Mesh 18 321 0.346649 3.815e-06 Refine Mesh 19 339 0.346649 1.907e-06 Refine Mesh 20 357 0.346649 9.537e-07 Refine Mesh patternsearch stopped because the mesh size was less than options.MeshTolerance. ```

You can configure `tunefis` to learn the rules of a fuzzy system. For this example, learn rules for a tipping FIS.

Load the original tipping FIS.

`fisin = readfis('tipper'); `

Generate training data using this FIS.

```x = 10*rand(100,2); y = evalfis(fisin,x);```

Remove the rules from the FIS.

`fisin.Rules = [];`

To learn rules, set the `OptimizationType` option of `tunefisOptions` to "`learning"`.

```options = tunefisOptions( ... "OptimizationType","learning", ... "Display","none");```

Set the maximum number of rules in the tuned FIS to 5.

`options.NumMaxRules = 5;`

Learn the rules without tuning any membership function parameters.

`fisout = tunefis(fisin,[],x,y,options);`

Create the initial fuzzy inference system using `genfis`.

```x = (0:0.1:10)'; y = sin(2*x)./exp(x/5); options = genfisOptions('GridPartition'); options.NumMembershipFunctions = 5; fisin = genfis(x,y,options);```

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

`[in,out,rule] = getTunableSettings(fisin);`

You can tune with custom parameter settings using `setTunable` or dot notation.

Do not tune input 1.

`in(1) = setTunable(in(1),false);`

For output 1:

• do not tune membership functions 1 and 2,

• do not tune membership function 3,

• set the minimum parameter range of membership function 4 to -2,

• and set the maximum parameter range of membership function 5 to 2.

```out(1).MembershipFunctions(1:2) = setTunable(out(1).MembershipFunctions(1:2),false); out(1).MembershipFunctions(3).Parameters.Free = false; out(1).MembershipFunctions(4).Parameters.Minimum = -2; out(1).MembershipFunctions(5).Parameters.Maximum = 2;```

For the rule settings,

• do not tune rules 1 and 2,

• set the antecedent of rule 3 to non-tunable,

• allow NOT logic in the antecedent of rule 4,

• and do not ignore any outputs in rule 3.

```rule(1:2) = setTunable(rule(1:2),false); rule(3).Antecedent.Free = false; rule(4).Antecedent.AllowNot = true; rule(3).Consequent.AllowEmpty = false;```

Set the maximum number of iterations to 20 and tune the fuzzy inference system.

```opt = tunefisOptions("Method","particleswarm"); opt.MethodOptions.MaxIterations = 20; fisout = tunefis(fisin,[in;out;rule],x,y,opt);```
``` Best Mean Stall Iteration f-count f(x) f(x) Iterations 0 90 0.3265 1.857 0 1 180 0.3265 4.172 0 2 270 0.3265 3.065 1 3 360 0.3265 3.839 2 4 450 0.3265 3.386 3 5 540 0.3265 3.249 4 6 630 0.3265 3.311 5 7 720 0.3265 2.901 6 8 810 0.3265 2.868 7 9 900 0.3181 2.71 0 10 990 0.3181 2.068 1 11 1080 0.3181 2.692 2 12 1170 0.3165 2.146 0 13 1260 0.3165 1.869 1 14 1350 0.3165 2.364 2 15 1440 0.3165 2.07 0 16 1530 0.3164 1.678 0 17 1620 0.2978 1.592 0 18 1710 0.2977 1.847 0 19 1800 0.2954 1.666 0 20 1890 0.2947 1.608 0 Optimization ended: number of iterations exceeded OPTIONS.MaxIterations. ```

Since R2020a

To prevent the overfitting of your tuned FIS to your training data using k-fold cross validation.

Load training data. This training data set has one input and one output.

`load fuzex1trnData.dat`

Create a fuzzy inference system for the training data.

```opt = genfisOptions('GridPartition'); opt.NumMembershipFunctions = 4; opt.InputMembershipFunctionType = "gaussmf"; inputData = fuzex1trnData(:,1); outputData = fuzex1trnData(:,2); fis = genfis(inputData,outputData,opt);```

For reproducibility, set the random number generator seed.

`rng('default')`

Configure the options for tuning the FIS. Use the default tuning method with a maximum of `30` iterations.

```tuningOpt = tunefisOptions; tuningOpt.MethodOptions.MaxGenerations = 30;```

Configure the following options for using k-fold cross validation.

• Use a k-fold value of `3`.

• Compute the moving average of the validation cost using a window of length `2`.

• Stop each training-validation iteration when the average cost is 5% greater than the current minimum cost.

```tuningOpt.KFoldValue = 3; tuningOpt.ValidationWindowSize = 2; tuningOpt.ValidationTolerance = 0.05;```

Obtain the settings for tuning the membership function parameters of the FIS.

` [in,out] = getTunableSettings(fis);`

Tune the FIS.

`[outputFIS,info] = tunefis(fis,[in;out],inputData,outputData,tuningOpt);`
```Single objective optimization: 16 Variables Options: CreationFcn: @gacreationuniform CrossoverFcn: @crossoverscattered SelectionFcn: @selectionstochunif MutationFcn: @mutationadaptfeasible Best Mean Stall Generation Func-count f(x) f(x) Generations 1 400 0.2257 0.534 0 ga stopped by the output or plot function. The reason for stopping: Validation tolerance exceeded. Cross validation iteration 1: Minimum validation cost 0.307868 found at training cost 0.262340 Single objective optimization: 16 Variables Options: CreationFcn: @gacreationuniform CrossoverFcn: @crossoverscattered SelectionFcn: @selectionstochunif MutationFcn: @mutationadaptfeasible Best Mean Stall Generation Func-count f(x) f(x) Generations 1 400 0.26 0.5522 0 2 590 0.222 0.4914 0 ga stopped by the output or plot function. The reason for stopping: Validation tolerance exceeded. Cross validation iteration 2: Minimum validation cost 0.253280 found at training cost 0.259991 Single objective optimization: 16 Variables Options: CreationFcn: @gacreationuniform CrossoverFcn: @crossoverscattered SelectionFcn: @selectionstochunif MutationFcn: @mutationadaptfeasible Best Mean Stall Generation Func-count f(x) f(x) Generations 1 400 0.2588 0.4969 0 2 590 0.2425 0.4366 0 3 780 0.2414 0.4006 0 ga stopped by the output or plot function. The reason for stopping: Validation tolerance exceeded. Cross validation iteration 3: Minimum validation cost 0.199193 found at training cost 0.242533 ```

Evaluate the FIS for each of the training input values.

`outputTuned = evalfis(outputFIS,inputData);`

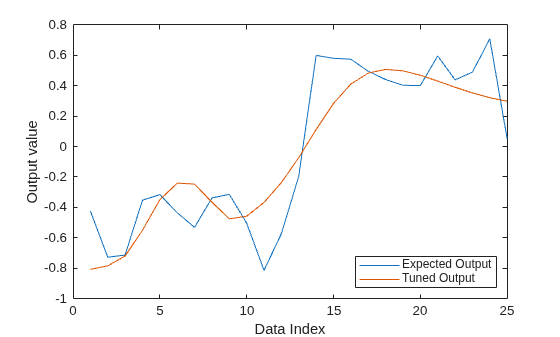

Plot the output of the tuned FIS along with the expected training output.

```plot([outputData,outputTuned]) legend("Expected Output","Tuned Output","Location","southeast") xlabel("Data Index") ylabel("Output value")```

Create a FIS tree to model $\frac{\mathrm{sin}\left(\mathit{x}\right)+\mathrm{cos}\left(\mathit{x}\right)}{\mathrm{exp}\left(\mathit{x}\right)}$, as shown in the following figure. For more information on creating FIS trees, see FIS Trees.

Create `fis1` with two inputs, both with range [0, 10] and three MFs each. Use a smooth, differentiable MF, such as `gaussmf`, to match the characteristics of the data type you are modeling.

```fis1 = sugfis("Name","fis1"); fis1 = addInput(fis1,[0 10], ... "NumMFs",3, ... "MFType","gaussmf"); fis1 = addInput(fis1,[0 10], ... "NumMFs",3, ... "MFType","gaussmf");```

Add an output with the range [–1.5, 1.5] having nine MFs corresponding to the nine possible input MF combinations. Set the output range according to the possible values of $\mathrm{sin}\left(\mathit{x}\right)+\mathrm{cos}\left(\mathit{x}\right)$.

`fis1 = addOutput(fis1,[-1.5 1.5],"NumMFs",9);`

Create `fis2` with two inputs. Set the range of the first input to [–1.5, 1.5], which matches the range of the output of `fis1`. The second input is the same as the inputs of `fis1`. Therefore, use the same input range, [0, 10]. Add three MFs for each of the inputs.

```fis2 = sugfis("Name","fis2"); fis2 = addInput(fis2,[-1.5 1.5], ... "NumMFs",3, ... "MFType","gaussmf"); fis2 = addInput(fis2,[0 10], ... "NumMFs",3, ... "MFType","gaussmf");```

Add an output with range [0, 1] and nine MFs. The output range is set according to the possible values of $\frac{\mathrm{sin}\left(\mathit{x}\right)+\mathrm{cos}\left(\mathit{x}\right)}{\mathrm{exp}\left(\mathit{x}\right)}$.

`fis2 = addOutput(fis2,[0 1],"NumMFs",9);`

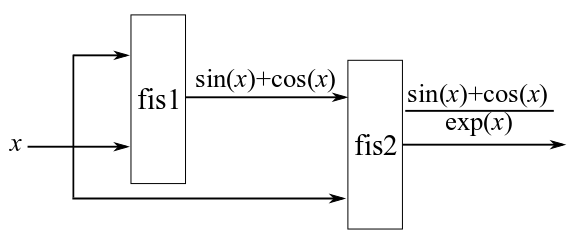

Connect the inputs and the outputs as shown in the diagram. The first output of `fis1` connects to the first input of `fis2`. The inputs of `fis1` connect to each other and the second input of `fis1` connects to the second input of `fis2`.

```con1 = ["fis1/output1" "fis2/input1"]; con2 = ["fis1/input1" "fis1/input2"]; con3 = ["fis1/input2" "fis2/input2"];```

Create a FIS tree using the specified FISs and connections.

`fisT = fistree([fis1 fis2],[con1;con2;con3]);`

Add an additional output to the FIS tree to access the output of `fis1`.

`fisT.Outputs = ["fis1/output1";fisT.Outputs];`

For this example, generate input and output training data using the known mathematical operations. Generate data for both the intermediate and final output of the FIS tree.

```x = (0:0.1:10)'; y1 = sin(x)+cos(x); y2 = y1./exp(x); y = [y1 y2];```

Learn the rules of the FIS tree using particle swarm optimization, which is a global optimization method.

```options = tunefisOptions( ... "Method","particleswarm", ... "OptimizationType","learning");```

This tuning step uses a small number of iterations to learn a rule base without overfitting the training data.

```options.MethodOptions.MaxIterations = 5; rng("default") % for reproducibility fisTout1 = tunefis(fisT,[],x,y,options);```
``` Best Mean Stall Iteration f-count f(x) f(x) Iterations 0 100 0.6682 0.9395 0 1 200 0.6682 1.023 0 2 300 0.6652 0.9308 0 3 400 0.6259 0.958 0 4 500 0.6259 0.918 1 5 600 0.5969 0.9179 0 Optimization ended: number of iterations exceeded OPTIONS.MaxIterations. ```

Tune all the FIS tree parameters at once using pattern search, which is a local optimization method.

```options.Method = "patternsearch"; options.MethodOptions.MaxIterations = 25;```

Use `getTunableSettings` to obtain input, output, and rule parameter settings from the FIS tree.

`[in,out,rule] = getTunableSettings(fisTout1);`

Tune the FIS tree parameters.

`fisTout2 = tunefis(fisTout1,[in;out;rule],x,y,options);`
```Iter Func-count f(x) MeshSize Method 0 1 0.596926 1 1 8 0.594989 2 Successful Poll 2 14 0.580893 4 Successful Poll 3 14 0.580893 2 Refine Mesh 4 36 0.580893 1 Refine Mesh 5 43 0.577757 2 Successful Poll 6 65 0.577757 1 Refine Mesh 7 79 0.52794 2 Successful Poll 8 102 0.52794 1 Refine Mesh 9 120 0.524443 2 Successful Poll 10 143 0.524443 1 Refine Mesh 11 170 0.52425 2 Successful Poll 12 193 0.52425 1 Refine Mesh 13 221 0.524205 2 Successful Poll 14 244 0.524205 1 Refine Mesh 15 329 0.508752 2 Successful Poll 16 352 0.508752 1 Refine Mesh 17 434 0.508233 2 Successful Poll 18 457 0.508233 1 Refine Mesh 19 546 0.506136 2 Successful Poll 20 569 0.506136 1 Refine Mesh 21 659 0.505982 2 Successful Poll 22 682 0.505982 1 Refine Mesh 23 795 0.505811 2 Successful Poll 24 818 0.505811 1 Refine Mesh 25 936 0.505811 0.5 Refine Mesh 26 950 0.504362 1 Successful Poll patternsearch stopped because it exceeded options.MaxIterations. ```

The optimization cost is lower after the second tuning process.

Evaluate the FIS tree using the input training data.

`yOut = evalfis(fisTout2,x);`

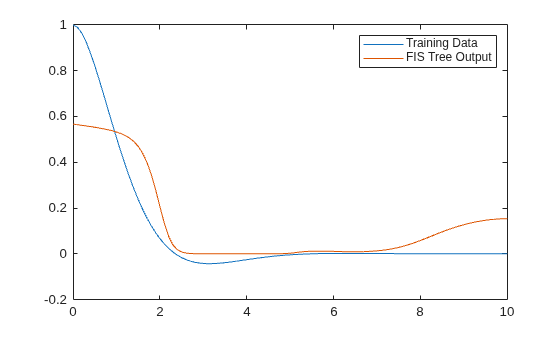

Plot the final output along with the corresponding output training data.

```plot(x,y(:,2),"-",x,yOut(:,2),"-") legend("Training Data","FIS Tree Output")```

The results do not perform well at the beginning and end of the input range. To improve performance, you could try:

• Increasing the number of training iterations in each stage of the tuning process.

• Increasing the number of membership functions for the input and output variables.

• Using a custom cost function to model the known mathematical operations. For an example, see Tune FIS Using Custom Cost Function.

Input Arguments

collapse all

Fuzzy inference system, specified as one of the following objects.

Tunable parameter settings, specified as an array of input, output, and rule parameter settings in the input FIS. To obtain these parameter settings, use the `getTunableSettings` function with the input `fisin`.

`paramset` can be the input, output, or rule parameter settings, or any combination of these settings.

Input training data, specified as an m-by-n matrix, where m is the total number of input datasets and n is the number of inputs. The number of input and output datasets must be the same.

Output training data, specified as an m-by-q matrix, where m is the total number of output datasets and q is the number of outputs. The number of input and output datasets must be the same.

FIS tuning options, specified as a `tunefisOptions` object. You can specify the tuning algorithm method and other options for the tuning process.

Custom cost function, specified as a function handle. The custom cost function evaluates `fisout` to calculate its cost with respect to an evaluation criterion, such as input/output data. `custcostfcn` must accept at least one input argument for `fisout` and returns a cost value. You can provide an anonymous function handle to attach additional data for cost calculation, as described in this example:

```function fitness = custcost(fis,trainingData) ... end custcostfcn = @(fis)custcost(fis,trainingData);```

Output Arguments

collapse all

Tuned fuzzy inference system, returned as one of the following objects.

• `mamfis` object — Mamdani fuzzy inference system

• `sugfis` object — Sugeno fuzzy inference system

• `mamfistype2` object — Type-2 Mamdani fuzzy inference system

• `sugfistype2` object — Type-2 Sugeno fuzzy inference system

• `fistree` object — Tree of interconnected fuzzy inference systems

`fisout` is the same type of FIS as `fisin`.

Tuning algorithm summary, specified as a structure containing the following fields:

• `tuningOutputs` — Algorithm-specific tuning information

• `totalFunctionCount` — Total number of evaluations of the optimization cost function

• `totalRuntime` — Total execution time of the tuning process in seconds

• `errorMessage` — Any error message generated when updating `fisin` with new parameter values

`tuningOutputs` is a structure that contains tuning information for the algorithm specified in `options`. The fields in `tuningOutputs` depend on the specified tuning algorithm.

When using k-fold cross validation:

• `tuningOutputs` is an array of k structures, each containing the tuning information for one training-validation iteration.

• `totalFunctionCount` and `totalRuntime` include the total function cost function evaluations and total run time across all k training-validation iterations.

Alternative Functionality

Fuzzy Logic Designer App

Starting in R2023a, you can interactively tune fuzzy inference systems using the Fuzzy Logic Designer app. For an example, see Tune Fuzzy Inference System Using Fuzzy Logic Designer.

Version History

Introduced in R2019a
