ルックアップ テーブルを使用した固定小数点平方根の実装
この例では、ルックアップ テーブルを使用して固定小数点平方根を実装する方法を説明します。ルックアップ テーブルを使用すると、組み込みデバイス用にコードを効率的に生成できます。
設定
この例で基本設定または設定が変更されないように、次のコードで元の状態を保存します。
originalFormat = get(0,'format'); format long g originalWarningState = warning('off','fixed:fi:underflow'); originalFiprefState = get(fipref); reset(fipref)
例の最後で、この状態に戻します。
平方根の実装
平方根アルゴリズムについて、ここで簡単にまとめます。
1 バイトのビット数を定数
B
として宣言します。この例では、B = 8
となります。例ルックアップ テーブルのデータの正規化に示す関数
fi_normalize_unsigned_8_bit_byte()
を使用して、u = x*2^n
、0.5 <= x < 2
、n
が偶数となるように入力u > 0
を正規化します。x
の上位B
ビットを抽出します。x_B
は、x
の上位B
ビットを示します。sqrt(x_B)
がインデックスsqrt(x_B) = SQRTLUT(i)
を検索して実行できるよう、整数i = x_B- 2^(B-2) + 1
がSQRTLUT
へのインデックスとして使用されるルックアップ テーブルSQRTLUT
を生成します。小数部として解釈されている残りのビット
r = x - x_B
を使用して、tableSQRTLUT(i+1)
のSQRTLUT(i)
と次の値の間で線形内挿を行います。残りのビットr
はx
の下位w - B
ビットを抽出して作成します。ここで、w
はx
の語長を示します。関数reinterpretcast()
を使用すると、これは小数部として解釈されます。最後に、ルックアップ テーブルと線形内挿を使用して、次のように出力を計算します。
sqrt(u) = sqrt(x*2^n)
= sqrt(x)*2^(n/2)
= (SQRTLUT(i) + r*(SQRTLUT(i+1) - SQRTLUT(i)))*2^(n/2)
このアルゴリズムは、この例の最後に定義されている関数 fi_sqrtlookup_8_bit_byte()
によって実装されます。
例
fi_sqrtlookup_8_bit_byte()
により、ルックアップ テーブルを使用して固定小数点平方根を計算します。固定小数点ルックアップ テーブルの結果を、sqrt
と倍精度を使用して計算された平方根と比較します。
u = fi(linspace(0,128,1000),0,16,12); y = fi_sqrtlookup_8_bit_byte(u); y_expected = sqrt(double(u));

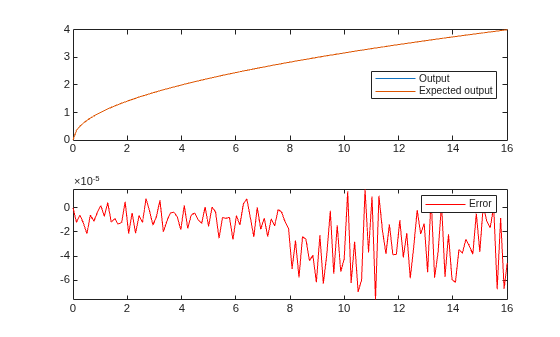

結果をプロットします。
clf subplot(211) plot(u,y,u,y_expected) legend('Output','Expected output','Location','Best') subplot(212) plot(u,double(y)-y_expected,'r') legend('Error')
figure(gcf)
クリーンアップ
元の状態に戻します。
set(0,'format',originalFormat);
warning(originalWarningState);
fipref(originalFiprefState);
sqrt_lookup_table
の関数定義
関数 sqrt_lookup_table
は、平方根値のルックアップ テーブルを読み込みます。テーブルは次を実行すると作成できます。
sqrt_table = sqrt((2^(B-2):2^(B))/2^(B-1));
function SQRTLUT = sqrt_lookup_table() B = 8; % Number of bits in a byte % sqrt_table = sqrt((2^(B-2):2^(B))/2^(B-1)) sqrt_table = [0.707106781186548 0.712609640686961 0.718070330817254 0.723489806424389 ... 0.728868986855663 0.734208757779421 0.739509972887452 0.744773455488312 ... 0.750000000000000 0.755190373349661 0.760345316287277 0.765465544619743 ... 0.770551750371122 0.775604602874429 0.780624749799800 0.785612818123533 ... 0.790569415042095 0.795495128834866 0.800390529679106 0.805256170420320 ... 0.810092587300983 0.814900300650331 0.819679815537750 0.824431622392057 ... 0.829156197588850 0.833854004007896 0.838525491562421 0.843171097702003 ... 0.847791247890659 0.852386356061616 0.856956825050130 0.861503047005639 ... 0.866025403784439 0.870524267324007 0.875000000000000 0.879452954966893 ... 0.883883476483184 0.888291900221993 0.892678553567856 0.897043755900458 ... 0.901387818865997 0.905711046636840 0.910013736160065 0.914296177395487 ... 0.918558653543692 0.922801441264588 0.927024810886958 0.931229026609459 ... 0.935414346693485 0.939581023648307 0.943729304408844 0.947859430506444 ... 0.951971638232989 0.956066158798647 0.960143218483576 0.964203038783845 ... 0.968245836551854 0.972271824131503 0.976281209488332 0.980274196334883 ... 0.984250984251476 0.988211768802619 0.992156741649222 0.996086090656827 ... 1.000000000000000 1.003898650263063 1.007782218537319 1.011650878514915 ... 1.015504800579495 1.019344151893756 1.023169096484056 1.026979795322186 ... 1.030776406404415 1.034559084827928 1.038327982864759 1.042083250033317 ... 1.045825033167594 1.049553476484167 1.053268721647045 1.056970907830485 ... 1.060660171779821 1.064336647870400 1.068000468164691 1.071651762467640 ... 1.075290658380328 1.078917281352004 1.082531754730548 1.086134199811423 ... 1.089724735885168 1.093303480283494 1.096870548424015 1.100426053853688 ... 1.103970108290981 1.107502821666834 1.111024302164449 1.114534656257938 ... 1.118033988749895 1.121522402807898 1.125000000000000 1.128466880329237 ... 1.131923142267177 1.135368882786559 1.138804197393037 1.142229180156067 ... 1.145643923738960 1.149048519428140 1.152443057161611 1.155827625556683 ... 1.159202311936963 1.162567202358642 1.165922381636102 1.169267933366857 ... 1.172603939955857 1.175930482639174 1.179247641507075 1.182555495526531 ... 1.185854122563142 1.189143599402528 1.192424001771182 1.195695404356812 ... 1.198957880828180 1.202211503854459 1.205456345124119 1.208692475363357 ... 1.211919964354082 1.215138880951474 1.218349293101120 1.221551267855754 ... 1.224744871391589 1.227930169024281 1.231107225224513 1.234276103633219 ... 1.237436867076458 1.240589577579950 1.243734296383275 1.246871083953750 ... 1.250000000000000 1.253121103485214 1.256234452640111 1.259340104975618 ... 1.262438117295260 1.265528545707287 1.268611445636527 1.271686871835988 ... 1.274754878398196 1.277815518766305 1.280868845744950 1.283914911510884 ... 1.286953767623375 1.289985465034393 1.293010054098575 1.296027584582983 ... 1.299038105676658 1.302041665999979 1.305038313613819 1.308028096028522 ... 1.311011060212689 1.313987252601790 1.316956719106592 1.319919505121430 ... 1.322875655532295 1.325825214724777 1.328768226591831 1.331704734541407 ... 1.334634781503914 1.337558409939543 1.340475661845451 1.343386578762792 ... 1.346291201783626 1.349189571557681 1.352081728298996 1.354967711792425 ... 1.357847561400027 1.360721316067327 1.363589014329464 1.366450694317215 ... 1.369306393762915 1.372156150006259 1.375000000000000 1.377837980315538 ... 1.380670127148408 1.383496476323666 1.386317063301177 1.389131923180804 ... 1.391941090707505 1.394744600276337 1.397542485937369 1.400334781400505 ... 1.403121520040228 1.405902734900249 1.408678458698081 1.411448723829527 ... 1.414213562373095]; % Cast to fixed point with the most accurate rounding method WL = 4*B; % Word length FL = 2*B; % Fraction length SQRTLUT = fi(sqrt_table,1,WL,FL,'RoundingMethod','Nearest'); % Set fimath for the most efficient math operations F = fimath('OverflowAction','Wrap',... 'RoundingMethod','Floor',... 'SumMode','KeepLSB',... 'SumWordLength',WL,... 'ProductMode','KeepLSB',... 'ProductWordLength',WL); SQRTLUT = setfimath(SQRTLUT,F); end
fi_sqrtlookup_8_bit_byte()
の関数定義
function y = fi_sqrtlookup_8_bit_byte(u) % Load the lookup table SQRTLUT = sqrt_lookup_table(); % Remove fimath from the input to insulate this function from math % settings declared outside this function. u = removefimath(u); % Declare the output y = coder.nullcopy(fi(zeros(size(u)),numerictype(SQRTLUT),fimath(SQRTLUT))); B = 8; % Number of bits in a byte w = u.WordLength; for k = 1:numel(u) assert(u(k)>=0,'Input must be non-negative.'); if u(k)==0 y(k)=0; else % Normalize the input such that u = x*2^n and 0.5 <= x < 2 [x,n] = fi_normalize_unsigned_8_bit_byte(u(k)); isodd = storedInteger(bitand(fi(1,1,8,0),fi(n))); x = bitsra(x,isodd); n = n + isodd; % Extract the high byte of x high_byte = storedInteger(bitsliceget(x,w,w-B+1)); % Convert the high byte into an index for SQRTLUT i = high_byte - 2^(B-2) + 1; % The upper byte was used for the index into SQRTLUT. % The remainder, r, interpreted as a fraction, is used to % linearly interpolate between points. T_unsigned_fraction = numerictype(0,w-B,w-B); r = reinterpretcast(bitsliceget(x,w-B,1),T_unsigned_fraction); y(k) = bitshift((SQRTLUT(i) + r*(SQRTLUT(i+1) - SQRTLUT(i))),... bitsra(n,1)); end end % Remove fimath from the output to insulate the caller from math settings % declared inside this function. y = removefimath(y); end
