simulate
Monte Carlo simulation of vector autoregression (VAR) model
Syntax
Description
Conditional and Unconditional Simulation for Numeric Arrays
uses additional options specified by one or more name-value arguments.
Y
= simulate(Mdl
,numobs
,Name=Value
)simulate
returns numeric arrays when all optional
input data are numeric arrays. For example,
simulate(Mdl,100,NumPaths=1000,Y0=PS)
returns a numeric
array of 1000, 100-period simulated response paths from
Mdl
and specifies the numeric array of presample
response data PS
.
To produce a conditional simulation, specify response data in the simulation
horizon by using the YF
name-value argument.
Unconditional Simulation for Tables and Timetables
returns the table or timetable Tbl
= simulate(Mdl
,numobs
,Presample=Presample
)Tbl
containing the random
multivariate response and innovations variables, which results from the
unconditional simulation of the response series in the model
Mdl
. simulate
uses the table or
timetable of presample data Presample
to initialize the
response series. (since R2022b)
simulate
selects the variables in
Mdl.SeriesNames
to simulate, or it selects all variables
in Presample
. To select different response variables in
Tbl
to simulate, use the
PresampleResponseVariables
name-value argument.
uses additional options specified by one or more name-value arguments. For
example,
Tbl
= simulate(Mdl
,numobs
,Presample=Presample
,Name=Value
)simulate(Mdl,100,Presample=PSTbl,PresampleResponseVariables=["GDP"
"CPI"])
returns a timetable of variables containing 100-period
simulated response and innovations series from Mdl
,
initialized by the data in the GDP
and CPI
variables of the timetable of presample data in PSTbl
. (since R2022b)
Conditional Simulation for Tables and Timetables
returns the table or timetable Tbl
= simulate(Mdl
,numobs
,InSample=InSample
,ResponseVariables=ResponseVariables
)Tbl
containing the random
multivariate response and innovations variables, which results from the
conditional simulation of the response series in the model
Mdl
. InSample
is a table or
timetable of response or predictor data in the simulation horizon that
simulate
uses to perform the conditional simulation
and ResponseVariables
specifies the response variables in
InSample
. (since R2022b)
uses additional options specified by one or more name-value arguments, using any
input argument combination in the previous two syntaxes. (since R2022b)Tbl
= simulate(___,Name=Value
)
Examples
Return Response Series in Matrix from Unconditional Simulation
Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data. Then, simulate a vector of responses from the estimated model.
Load the Data_USEconModel
data set.
load Data_USEconModel

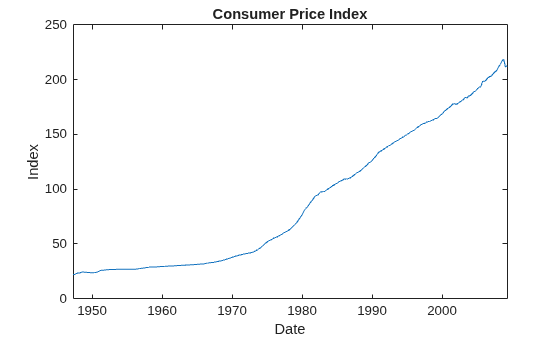

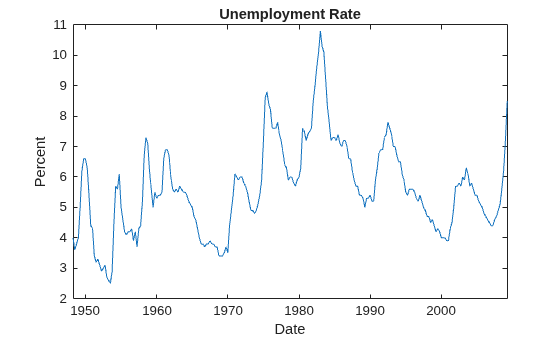

Plot the two series on separate plots.
figure plot(DataTimeTable.Time,DataTimeTable.CPIAUCSL); title("Consumer Price Index") ylabel("Index") xlabel("Date")
figure plot(DataTimeTable.Time,DataTimeTable.UNRATE); title("Unemployment Rate") ylabel("Percent") xlabel("Date")
Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series. Create a new data set containing the transformed variables, and do not include any rows containing at least one missing observation.
rcpi = price2ret(DataTimeTable.CPIAUCSL); unrate = DataTimeTable.UNRATE(2:end); dates = DataTimeTable.Time(2:end); Data = array2timetable([rcpi unrate],RowTimes=dates, ... VariableNames=["RCPI" "UNRATE"]); Data = rmmissing(Data);
Create a default VAR(4) model by using the shorthand syntax.
Mdl = varm(2,4); Mdl.SeriesNames = Data.Properties.VariableNames;
Estimate the model using the entire data set.
EstMdl = estimate(Mdl,Data.Variables);
EstMdl
is a fully specified, estimated varm
model object.
Simulate a response series path from the estimated model with length equal to the path in the data.
rng(1); % For reproducibility
numobs = height(Data);
Y = simulate(EstMdl,numobs);
Y
is a 245-by-2 matrix of simulated responses. The first and second columns contain the simulated CPI growth rate and unemployment rate, respectively.

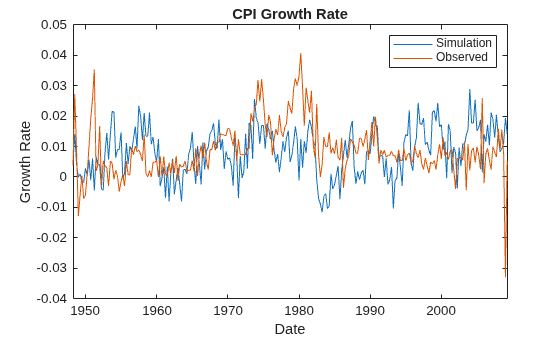

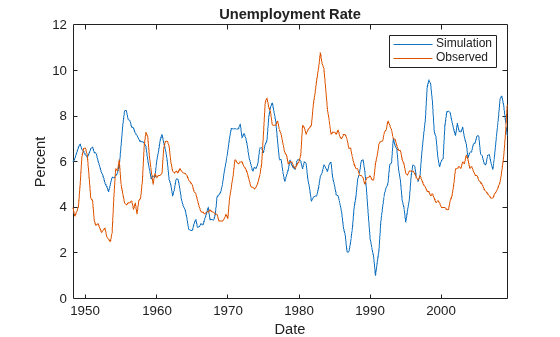

Plot the simulated and true responses.
figure plot(Data.Time,Y(:,1)); hold on plot(Data.Time,Data.RCPI) title("CPI Growth Rate"); ylabel("Growth Rate") xlabel("Date") legend("Simulation","Observed") hold off
figure plot(Data.Time,Y(:,2)); hold on plot(Data.Time,Data.UNRATE) ylabel("Percent") xlabel("Date") title("Unemployment Rate") legend("Simulation","Observed") hold off
Simulate Responses Using filter
Illustrate the relationship between simulate
and filter
by estimating a 4-D VAR(2) model of the four response series in Johansen's Danish data set. Simulate a single path of responses using the fitted model and the historical data as initial values, and then filter a random set of Gaussian disturbances through the estimated model using the same presample responses.
Load Johansen's Danish economic data.
load Data_JDanish
For details on the variables, enter Description
.
Create a default 4-D VAR(2) model.
Mdl = varm(4,2); Mdl.SeriesNames = DataTimeTable.Properties.VariableNames;
Estimate the VAR(2) model using the entire data set.
EstMdl = estimate(Mdl,DataTimeTable.Variables);
When reproducing the results of simulate
and filter
:
Set the same random number seed using
rng
.Specify the same presample response data using the
Y0
name-value argument.
Set the default random seed. Simulate 100 observations by passing the estimated model to simulate
. Specify the entire data set as the presample.
rng("default")
YSim = simulate(EstMdl,100,Y0=DataTimeTable.Variables);
YSim
is a 100-by-4 matrix of simulated responses. Columns correspond to the columns of the variables in Data
.
Set the default random seed. Simulate 4 series of 100 observations from the standard Gaussian distribution.
rng("default")
Z = randn(100,4);
Filter the Gaussian values through the estimated model. Specify the entire data set as the presample.
YFilter = filter(EstMdl,Z,Y0=DataTimeTable.Variables);
YFilter
is a 100-by-4 matrix of simulated responses. Columns correspond to the columns of the variables in the data Data
. Before filtering the disturbances, filter
scales Z
by the lower triangular Cholesky factor of the model covariance in EstMdl.Covariance
.
Compare the resulting responses between filter
and simulate
.
(YSim - YFilter)'*(YSim - YFilter)
ans = 4×4
0 0 0 0
0 0 0 0
0 0 0 0
0 0 0 0
The results are identical.
Simulate Arrays of Multiple Response and Innovations Paths
Load Johansen's Danish economic data. Remove all missing observations.
load Data_JDanish
Data = rmmissing(Data);
T = height(Data);
For details on the variables, enter Description
.
Create a default 4-D VAR(2) model.
Mdl = varm(4,2);
Estimate the VAR(2) model using the entire data set.
EstMdl = estimate(Mdl,Data);
When reproducing the results of simulate
and filter
:
Set the same random number seed using
rng
.Specify the same presample response data using the
Y0
name-value argument.
Simulate 100 paths of T – EstMdl.P
, the effective sample size, responses, and corresponding innovations by passing the estimated model to simulate
. Specify the same matrix of presample as the presample used in estimation (the earliest Mdl.P
observations, by default).
rng("default")
p = Mdl.P;
numobs = T - p;
PS = Data(1:p,:);
[YSim,ESim] = simulate(EstMdl,numobs,NumPaths=100,Y0=PS);
size(YSim)
ans = 1×3
53 4 100
YSim
and ESim
are 53-by-4-by-1000 numeric arrays of simulated responses and innovations, respectively. Each row corresponds to a period in the simulation horizon, each column corresponds to the variable in EstMdl.SeriesNames
, and pages are separate, independently simulated paths.

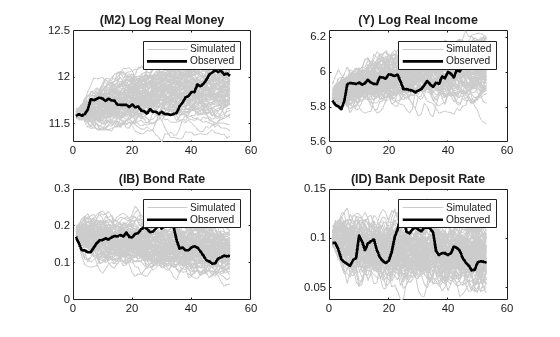

Plot each simulated response and innovations variable with their observations.
figure InSample = Data((p+1):end,:); tiledlayout(2,2) for j = 1:numel(EstMdl.SeriesNames) nexttile h1 = plot(squeeze(YSim(:,j,:)),Color=[0.8 0.8 0.8]); hold on h2 = plot(InSample(:,j),Color="k",LineWidth=2); hold off title(series(j)) legend([h1(1) h2],["Simulated" "Observed"]) end
E = infer(EstMdl,InSample,Y0=PS); figure tiledlayout(2,2) for j = 1:numel(EstMdl.SeriesNames) nexttile h1 = plot(squeeze(ESim(:,j,:)),Color=[0.8 0.8 0.8]); hold on h2 = plot(E(:,j),Color="k",LineWidth=2); hold off title("Innovations: " + EstMdl.SeriesNames{j}) legend([h1(1) h2],["Simulated" "Observed"]) end
Return Timetable of Responses and Innovations from Unconditional Simulation
Since R2022b
Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data. Then, perform an unconditional simulation of the estimated model and return the simulated responses and corresponding innovations in a timetable. This example is based on Return Response Series in Matrix from Unconditional Simulation.
Load and Preprocess Data
Load the Data_USEconModel
data set. Compute the CPI growth rate. Because the growth rate calculation consumes the earliest observation, include the rate variable in the timetable by prepending the series with NaN
.
load Data_USEconModel
DataTimeTable.RCPI = [NaN; price2ret(DataTimeTable.CPIAUCSL)];
T = height(DataTimeTable)
T = 249
Prepare Timetable for Estimation
When you plan to supply a timetable directly to estimate, you must ensure it has all the following characteristics:
All selected response variables are numeric and do not contain any missing values.
The timestamps in the
Time
variable are regular, and they are ascending or descending.
Remove all missing values from the table, relative to the CPI rate (RCPI
) and unemployment rate (UNRATE
) series.
varnames = ["RCPI" "UNRATE"]; DTT = rmmissing(DataTimeTable,DataVariables=varnames); T = height(DTT)
T = 245
rmmissing
removes the four initial missing observations from the DataTimeTable
to create a sub-table DTT
. The variables RCPI
and UNRATE
of DTT
do not have any missing observations.
Determine whether the sampling timestamps have a regular frequency and are sorted.
areTimestampsRegular = isregular(DTT,"quarters")
areTimestampsRegular = logical
0
areTimestampsSorted = issorted(DTT.Time)
areTimestampsSorted = logical
1
areTimestampsRegular = 0
indicates that the timestamps of DTT
are irregular. areTimestampsSorted = 1
indicates that the timestamps are sorted. Macroeconomic series in this example are timestamped at the end of the month. This quality induces an irregularly measured series.
Remedy the time irregularity by shifting all dates to the first day of the quarter.
dt = DTT.Time; dt = dateshift(dt,"start","quarter"); DTT.Time = dt; areTimestampsRegular = isregular(DTT,"quarters")
areTimestampsRegular = logical
1
DTT
is regular with respect to time.
Create Model Template for Estimation
Create a default VAR(4) model by using the shorthand syntax. Specify the response variable names.
Mdl = varm(2,4); Mdl.SeriesNames = varnames;
Fit Model to Data
Estimate the model. Pass the entire timetable DTT
. By default, estimate
selects the response variables in Mdl.SeriesNames
to fit to the model. Alternatively, you can use the ResponseVariables
name-value argument.
EstMdl = estimate(Mdl,DTT); p = EstMdl.P
p = 4
Perform Unconditional Simulation of Estimated Model
Simulate a response and innovations path from the estimated model and return the simulated series as variables in a timetable. simulate
requires information for the output timetable, such as variable names, sampling times for the simulation horizon, and sampling frequency. Therefore, supply a presample of the earliest p
= 4 observations of the data DTT
, from which simulate
infers the required timetable information. Specify a simulation horizon of numobs – p
.
rng(1) % For reproducibility
PSTbl = DTT(1:p,:);
numobs = T - p;
Tbl = simulate(EstMdl,T,Presample=PSTbl);
size(Tbl)
ans = 1×2
245 4
PSTbl
PSTbl=4×15 timetable
Time COE CPIAUCSL FEDFUNDS GCE GDP GDPDEF GPDI GS10 HOANBS M1SL M2SL PCEC TB3MS UNRATE RCPI
_____ _____ ________ ________ ____ _____ ______ ____ ____ ______ ____ ____ _____ _____ ______ _________
Q1-48 137.9 23.5 NaN 37.6 260.4 16.111 45 NaN 55.036 NaN NaN 170.5 1 4 0.0038371
Q2-48 139.6 24.15 NaN 39.7 267.3 16.254 48.1 NaN 55.007 NaN NaN 174.3 1 3.6 0.027284
Q3-48 144.5 24.36 NaN 41.4 273.9 16.556 50.2 NaN 55.398 NaN NaN 177.2 1.09 3.8 0.0086581
Q4-48 145.9 24.05 NaN 43.5 275.2 16.597 49.1 NaN 54.885 NaN NaN 178.1 1.16 4 -0.012807
head(Tbl)
Time RCPI_Responses UNRATE_Responses RCPI_Innovations UNRATE_Innovations _____ ______________ ________________ ________________ __________________ Q1-49 0.0037294 4.6036 -0.0038547 0.25039 Q2-49 0.0064827 5.0083 0.0070154 0.027504 Q3-49 -0.0073358 5.4981 -0.0045047 0.25199 Q4-49 -0.0057328 5.7007 -0.0065904 0.10593 Q1-50 -0.0060454 5.8687 -0.005022 0.13824 Q2-50 -0.0084475 5.5758 -0.0034013 -0.26192 Q3-50 -0.0067066 5.4129 -0.0033182 0.13055 Q4-50 -0.0020759 5.2191 0.0010595 0.11135
Tbl
is a 241-by-4 matrix of simulated responses and innovations. RCPI_Responses
is the simulated path of the CPI growth rate and RCPI_Innovations
is the corresponding innovations series, and the variables associated with the unemployment rate are similar. The timestamps of Tbl
follow directly from the timestamps of PSTbl
, and they have the same sampling frequency.
Simulate Responses from Model Containing Regression Component
Since R2022b
Estimate a VAR(4) model of the consumer price index (CPI), the unemployment rate, and the gross domestic product (GDP). Include a linear regression component containing the current and the last four quarters of government consumption expenditures and investment. Simulate multiple paths from the estimated model.
Load the Data_USEconModel
data set. Compute the real GDP.
load Data_USEconModel
DataTimeTable.RGDP = DataTimeTable.GDP./DataTimeTable.GDPDEF*100;

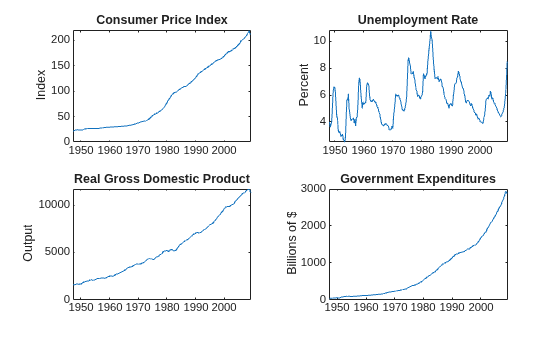

Plot all variables on separate plots.
figure tiledlayout(2,2) nexttile plot(DataTimeTable.Time,DataTimeTable.CPIAUCSL); ylabel("Index") title("Consumer Price Index") nexttile plot(DataTimeTable.Time,DataTimeTable.UNRATE); ylabel("Percent") title("Unemployment Rate") nexttile plot(DataTimeTable.Time,DataTimeTable.RGDP); ylabel("Output") title("Real Gross Domestic Product") nexttile plot(DataTimeTable.Time,DataTimeTable.GCE); ylabel("Billions of $") title("Government Expenditures")
Stabilize the CPI, GDP, and GCE by converting each to a series of growth rates. Synchronize the unemployment rate series with the others by removing its first observation.
varnames = ["CPIAUCSL" "RGDP" "GCE"]; DTT = varfun(@price2ret,DataTimeTable,InputVariables=varnames); DTT.Properties.VariableNames = varnames; DTT.UNRATE = DataTimeTable.UNRATE(2:end);
Make the time base regular.
dt = DTT.Time; dt = dateshift(dt,"start","quarter"); DTT.Time = dt;
Expand the GCE rate series to a matrix that includes the first lagged series through the fourth lag series.
RGCELags = lagmatrix(DTT,1:4,DataVariables="GCE");
DTT = [DTT RGCELags];
DTT = rmmissing(DTT);
Create separate presample and estimation sample data sets. The presample contains the earliest p
= 4
observations, and the estimation sample contains the rest of the data.
p = 4; PS = DTT(1:p,:); InSample = DTT((p+1):end,:); respnames = ["CPIAUCSL" "UNRATE" "RGDP"]; idx = endsWith(InSample.Properties.VariableNames,"GCE"); prednames = InSample.Properties.VariableNames(idx);
Create a default VAR(4) model by using the shorthand syntax. Specify the response variable names.
Mdl = varm(3,p); Mdl.SeriesNames = respnames;
Estimate the model using the entire sample. Specify the GCE and its lags as exogenous predictor data for the regression component.
EstMdl = estimate(Mdl,InSample,Presample=PS,PredictorVariables=prednames);
Generate 100 random response and innovations paths from the estimated model by performing an unconditional simulation. Specify that the length of the paths is the same as the length of the estimation sample period. Supply the presample and estimation sample data.
rng(1) % For reproducibility numpaths = 100; numobs = height(InSample); Tbl = simulate(EstMdl,numobs,NumPaths=numpaths, ... Presample=PS,InSample=InSample,PredictorVariables=prednames); size(Tbl)
ans = 1×2
240 14
head(Tbl)
Time CPIAUCSL RGDP GCE UNRATE Lag1GCE Lag2GCE Lag3GCE Lag4GCE CPIAUCSL_Responses UNRATE_Responses RGDP_Responses CPIAUCSL_Innovations UNRATE_Innovations RGDP_Innovations _____ __________ __________ __________ ______ __________ __________ __________ __________ __________________ ________________ ______________ ____________________ __________________ ________________ Q1-49 0.00041815 -0.0031645 0.036603 6.2 0.047147 0.04948 0.04193 0.054347 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q2-49 -0.0071324 0.011385 -0.0021164 6.6 0.036603 0.047147 0.04948 0.04193 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q3-49 -0.0059122 -0.010366 -0.012793 6.6 -0.0021164 0.036603 0.047147 0.04948 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q4-49 0.0012698 0.040091 -0.021693 6.3 -0.012793 -0.0021164 0.036603 0.047147 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q1-50 0.010101 0.029649 0.010905 5.4 -0.021693 -0.012793 -0.0021164 0.036603 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q2-50 0.01908 0.03844 -0.0043478 4.4 0.010905 -0.021693 -0.012793 -0.0021164 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q3-50 0.025954 0.017994 0.075508 4.3 -0.0043478 0.010905 -0.021693 -0.012793 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double Q4-50 0.035395 0.01197 0.14807 3.4 0.075508 -0.0043478 0.010905 -0.021693 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double 1x100 double
Tbl
is a 240-by-14 timetable of estimation sample data, simulated responses (denoted responseName
_Responses
), and corresponding innovations (denoted responseName
_Innovations
). The simulated response and innovations variables are 240-by-100 matrices, where each row is a period in the estimation sample and each column is a separate, independently generated path.
For each time in the estimation sample, compute the mean vector of the simulated responses among all paths.
idx = endsWith(Tbl.Properties.VariableNames,"_Responses");
simrespnames = Tbl.Properties.VariableNames(idx);
MeanSim = varfun(@(x)mean(x,2),Tbl,InputVariables=simrespnames);
MeanSim
is a 240-by-3 timetable containing the average of the simulated responses at each time point.

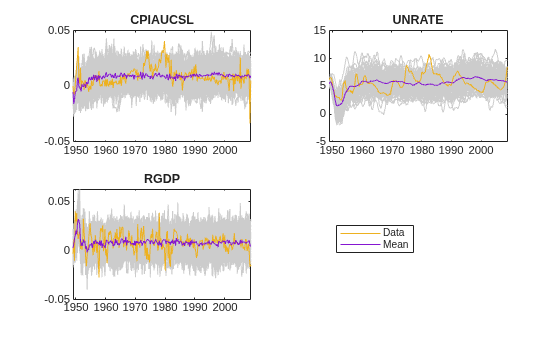

Plot the simulated responses, their averages, and the data.
figure tiledlayout(2,2) for j = 1:Mdl.NumSeries nexttile plot(Tbl.Time,Tbl{:,simrespnames(j)},Color=[0.8,0.8,0.8]) title(Mdl.SeriesNames{j}); hold on h1 = plot(Tbl.Time,Tbl{:,respnames(j)}); h2 = plot(Tbl.Time,MeanSim{:,"Fun_"+simrespnames(j)}); hold off end hl = legend([h1 h2],"Data","Mean"); hl.Position = [0.6 0.25 hl.Position(3:4)];
Return Timetable of Responses and Innovations from Conditional Simulation
Since R2022b
Perform a conditional simulation of the VAR model in Return Timetable of Responses and Innovations from Unconditional Simulation, in which economists hypothesize that the unemployment rate is 6% for 15 quarters after the end of the sampling period (from Q2 of 2009 through Q4 of 2012).
Load and Preprocess Data
Load the Data_USEconModel
data set. Compute the CPI growth rate. Because the growth rate calculation consumes the earliest observation, include the rate variable in the timetable by prepending the series with NaN
.
load Data_USEconModel
DataTimeTable.RCPI = [NaN; price2ret(DataTimeTable.CPIAUCSL)];
Prepare Timetable for Estimation
Remove all missing values from the table, relative to the CPI rate (RCPI
) and unemployment rate (UNRATE
) series.
varnames = ["RCPI" "UNRATE"]; DTT = rmmissing(DataTimeTable,DataVariables=varnames);
Remedy the time irregularity by shifting all dates to the first day of the quarter.
dt = DTT.Time; dt = dateshift(dt,"start","quarter"); DTT.Time = dt;
Create Model Template for Estimation
Create a default VAR(4) model by using the shorthand syntax. Specify the response variable names.
p = 4; Mdl = varm(2,p); Mdl.SeriesNames = varnames;
Fit Model to Data
Estimate the model. Pass the entire timetable DTT
. By default, estimate
selects the response variables in Mdl.SeriesNames
to fit to the model. Alternatively, you can use the ResponseVariables
name-value argument.
EstMdl = estimate(Mdl,DTT);
Prepare for Conditional Simulation of Estimated Model
Suppose economists hypothesize that the unemployment rate will be at 6% for the next 15 quarters.
Create a timetable with the following qualities:
The timestamps are regular with respect to the estimation sample timestamps and they are ordered from Q2 of 2009 through Q4 of 2012.
The variable
RCPI
(and, consequently, all other variables inDTT
) is a 15-by-1 vector ofNaN
values.The variable
UNRATE
is a 15-by-1 vector, where each element is 6.
numobs = 15;
shdt = DTT.Time(end) + calquarters(1:numobs);
DTTCondSim = retime(DTT,shdt,"fillwithmissing");
DTTCondSim.UNRATE = ones(numobs,1)*6;
DTTCondSim
is a 15-by-15 timetable that follows directly, in time, from DTT
, and both timetables have the same variables. All variables in DTTCondSim
contain NaN
values, except for UNRATE
, which is a vector composed of the value 6.
Perform Conditional Simulation of Estimated Model
Simulate the CPI growth rate given the hypothesis by supplying the conditioning data DTTCondSim
and specifying the response variable names. Generate 1000 paths. Because the simulation horizon is beyond the estimation sample data, supply the estimation sample as a presample to initialize the model.
rng(1) % For reproducibility Tbl = simulate(EstMdl,numobs,NumPaths=1000, ... InSample=DTTCondSim,ResponseVariables=EstMdl.SeriesNames, ... Presample=DTT,PresampleResponseVariables=EstMdl.SeriesNames); size(Tbl)
ans = 1×2
15 19
idx = endsWith(Tbl.Properties.VariableNames,["_Responses" "_Innovations"]); head(Tbl(:,idx))
Time RCPI_Responses UNRATE_Responses RCPI_Innovations UNRATE_Innovations _____ ______________ ________________ ________________ __________________ Q2-09 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q3-09 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q4-09 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q1-10 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q2-10 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q3-10 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q4-10 1x1000 double 1x1000 double 1x1000 double 1x1000 double Q1-11 1x1000 double 1x1000 double 1x1000 double 1x1000 double
Tbl
is a 15-by-19 matrix of simulated responses and innovations of RCPI
given UNRATE
is 6% for the next 15 quarters. RCPI_Responses
contains the simulated paths of the CPI growth rate and RCPI_Innovations
contains the corresponding innovations series. UNRATE_Responses
is a 15-by-1000 matrix composed of the value 6. All other variables in Tbl
are the variables and their values in DTTCondSim
.

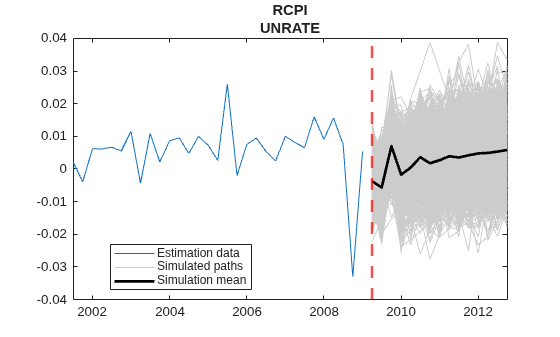

Plot the simulated values of the CPI growth rate and their mean with the final few values of the estimation sample data.
MeanRCPISim = mean(Tbl.RCPI_Responses,2); figure h1 = plot(DTT.Time((end-30):end),DTT.RCPI((end-30):end)); hold on h2 = plot(Tbl.Time,Tbl.RCPI_Responses,Color=[0.8 0.8 0.8]); h3 = plot(Tbl.Time,MeanRCPISim,Color="k",LineWidth=2); xline(Tbl.Time(1),"r--",LineWidth=2) hold off title(EstMdl.SeriesNames) legend([h1 h2(1) h3],["Estimation data" "Simulated paths" "Simulation mean"], ... Location="best")
Input Arguments
Presample
— Presample data
table | timetable
Since R2022b
Presample data that provides initial values for the model Mdl
,
specified as a table or timetable with numprevars
variables and
numpreobs
rows. The following situations describe when to use
Presample
:
Presample
is required whensimulate
performs an unconditional simulation, which occurs under one of the following conditions:You do not supply data in the simulation horizon (that is, you do not use the
InSample
name-value argument).You specify only predictor data for the model regression component in the simulation horizon using the
InSample
andPredictorVariables
name-value arguments, but you do not select any response variables fromInSample
.
Presample
is optional whensimulate
performs a conditional simulation, that is, when you supply response data in the simulation horizon, on which to condition the simulated responses, by using theInSample
andResponseVariables
name-value arguments. By default,simulate
sets any necessary presample observations.For stationary VAR processes without regression components,
simulate
sets presample observations to the unconditional meanFor nonstationary processes or models that contain a regression component,
simulate
sets presample observations to zero.
Regardless of the situation, simulate
returns the
simulated variables in the output table or timetable Tbl
, which is
commensurate with Presample
.
Each row is a presample observation, and measurements in each row, among all paths,
occur simultaneously. numpreobs
must be at least
Mdl.P
. If you supply more rows than necessary,
simulate
uses the latest Mdl.P
observations only.
Each variable is a numpreobs
-by-numprepaths
numeric matrix. Variables are associated with response series in
Mdl.SeriesNames
. To control presample variable selection, see the
optional PresampleResponseVariables
name-value argument.
For each variable, columns are separate, independent paths.
If variables are vectors,
simulate
applies them to each respective path to initialize the model for the simulation. Therefore, all respective response paths derive from common initial conditions.Otherwise, for each variable
and each pathResponseK
,j
simulate
appliesPresample.
to produceResponseK
(:,j
)Tbl.
ResponseK
(:,
. Variables must have at leastj
)numpaths
columns, andsimulate
uses only the firstnumpaths
columns.
If Presample
is a timetable, all the following conditions must be true:
Presample
must represent a sample with a regular datetime time step (seeisregular
).The inputs
InSample
andPresample
must be consistent in time such thatPresample
immediately precedesInSample
with respect to the sampling frequency and order.The datetime vector of sample timestamps
Presample.Time
must be ascending or descending.
If Presample
is a table, the last row contains the latest
presample observation.
InSample
— Future time series response or predictor data
table | timetable
Since R2022b
Future time series response or predictor data, specified as a table or timetable.
InSample
contains numvars
variables, including
numseries
response variables
yt or numpreds
predictor
variables xt for the model regression component.
You can specify InSample
only when other data inputs are tables or
timetables.
Use InSample
in the following situations:
Perform conditional simulation. You must also supply the response variable names in
InSample
by using theResponseVariables
name-value argument.Supply future predictor data for either unconditional or conditional simulation. To supply predictor data, you must specify predictor variable names in
InSample
by using thePredictorVariables
name-value argument. Otherwise,simulate
ignores the model regression component.
simulate
returns the simulated variables in the
output table or timetable Tbl
, which is commensurate with
InSample
.
Each row corresponds to an observation in the simulation horizon, the first row is the earliest observation, and measurements in each row, among all paths, occur simultaneously. InSample
must have at least numobs
rows to cover the simulation horizon. If you supply more rows than necessary, simulate
uses only the first numobs
rows.
Each response variable is a numeric matrix with numpaths
columns. For each
response variable
, columns are separate,
independent paths. Specifically, path K
of
response variable j
captures the
state, or knowledge, of ResponseK
as it
evolves from the presample past (for example,
ResponseK
Presample.
) into the future.
For each selected response variable ResponseK
:ResponseK
If
InSample.
is a vector,ResponseK
simulate
applies to each of thenumpaths
output paths (seeNumPaths
).Otherwise,
InSample.
must have at leastResponseK
numpaths
columns. If you supply more pages than necessary,simulate
uses only the firstnumpaths
columns.
Each predictor variable is a numeric vector. All predictor variables are present in the regression component of each response equation and apply to all response paths.
If InSample
is a timetable, the following conditions apply:
If InSample
is a table, the last row contains the latest
observation.
Elements of the response variables of InSample
can be numeric scalars or missing values (indicated by NaN
values). simulate
treats numeric scalars as deterministic future responses that are known in advance, for example, set by policy. simulate
simulates responses for corresponding NaN
values conditional on the known values. Elements of selected predictor variables must be numeric scalars.
By default, simulate
performs an unconditional simulation without a
regression component in the model (each selected response variable is a
numobs
-by-numpaths
matrix composed of
NaN
values indicating a complete lack of knowledge of the future
state of all simulated responses). Therefore, variables in Tbl
result
from a conventional, unconditional Monte Carlo simulation.
For more details, see Algorithms.
Example: Consider simulating one path from a model composed of two response
series, GDP
and CPI
, three periods
into the future. Suppose that you have prior knowledge about some of the
future values of the responses, and you want to simulate the unknown
responses conditional on your knowledge. Specify InSample
as a table containing the values that you know, and use
NaN
for values you do not know but want to simulate.
For example, InSample=array2table([2 NaN; 0.1 NaN; NaN
NaN],VariableNames=["GDP" "CPI"])
specifies that you have no
knowledge of the future values of CPI
, but you know that
GDP
is 2, 0.1, and unknown in periods 1, 2, and 3,
respectively, in the simulation horizon.
ResponseVariables
— Variables to select from InSample
to treat as response variables yt
string vector | cell vector of character vectors | vector of integers | logical vector
Since R2022b
Variables to select from InSample
to treat as response variables
yt, specified as one of the following
data types:
String vector or cell vector of character vectors containing
numseries
variable names inInSample.Properties.VariableNames
A length
numseries
vector of unique indices (integers) of variables to select fromInSample.Properties.VariableNames
A length
numvars
logical vector, whereResponseVariables(
selects variablej
) = true
fromj
InSample.Properties.VariableNames
, andsum(ResponseVariables)
isnumseries
To perform conditional simulation, you must specify
ResponseVariables
to select the response variables in
InSample
for the conditioning data.
ResponseVariables
applies only when you specify
InSample
.
The selected variables must be numeric vectors (single path) or matrices (columns represent multiple independent paths) of the same width.
Example: ResponseVariables=["GDP" "CPI"]
Example: ResponseVariables=[true false true false]
or
ResponseVariable=[1 3]
selects the first and third table
variables as the response variables.
Data Types: double
| logical
| char
| cell
| string
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: simulate(Mdl,100,NumPaths=1000,Y0=PS)
returns a numeric
array of 1000, 100-period simulated response paths from Mdl
and specifies the numeric array of presample response data
PS
.
NumPaths
— Number of sample paths to generate
1
(default) | positive integer
Y0
— Presample responses
numeric matrix | numeric array
Presample responses that provide initial values for the model
Mdl
, specified as a
numpreobs
-by-numseries
numeric matrix or a
numpreobs
-by-numseries
-by-numprepaths
numeric array. Use Y0
only when you supply optional data inputs as
numeric arrays.
numpreobs
is the number of presample observations.
numprepaths
is the number of presample response paths.
Each row is a presample observation, and measurements in each row, among all pages,
occur simultaneously. The last row contains the latest presample observation.
Y0
must have at least Mdl.P
rows. If you
supply more rows than necessary, simulate
uses the latest
Mdl.P
observations only.
Each column corresponds to the response series name in
Mdl.SeriesNames
.
Pages correspond to separate, independent paths.
If
Y0
is a matrix,simulate
applies it to simulate each sample path (page). Therefore, all paths in the output argumentY
derive from common initial conditions.Otherwise,
simulate
appliesY0(:,:,
to initialize simulating pathj
)j
.Y0
must have at leastnumpaths
pages, andsimulate
uses only the firstnumpaths
pages.
By default, simulate
sets any necessary presample observations.
For stationary VAR processes without regression components,
simulate
sets presample observations to the unconditional meanFor nonstationary processes or models that contain a regression component,
simulate
sets presample observations to zero.
Data Types: double
PresampleResponseVariables
— Variables to select from Presample
to use for presample response data
string vector | cell vector of character vectors | vector of integers | logical vector
Since R2022b
Variables to select from Presample
to use for presample data, specified
as one of the following data types:
String vector or cell vector of character vectors containing
numseries
variable names inPresample.Properties.VariableNames
A length
numseries
vector of unique indices (integers) of variables to select fromPresample.Properties.VariableNames
A length
numprevars
logical vector, wherePresampleResponseVariables(
selects variablej
) = true
fromj
Presample.Properties.VariableNames
, andsum(PresampleResponseVariables)
isnumseries
PresampleResponseVariables
applies only when you specify
Presample
.
The selected variables must be numeric vectors and cannot contain missing values
(NaN
).
PresampleResponseNames
does not need to contain the same names as in
Mdl.SeriesNames
; simulate
uses the data in
selected variable PresampleResponseVariables(
as a presample for j
)Mdl.SeriesNames(
.j
)
If the number of variables in Presample
matches
Mdl.NumSeries
, the default specifies all variables in
Presample
. If the number of variables in Presample
exceeds Mdl.NumSeries
, the default matches variables in
Presample
to names in Mdl.SeriesNames
.
Example: PresampleResponseVariables=["GDP" "CPI"]
Example: PresampleResponseVariables=[true false true false]
or
PresampleResponseVariable=[1 3]
selects the first and third table
variables for presample data.
Data Types: double
| logical
| char
| cell
| string
X
— Predictor data
numeric matrix
Predictor data for the regression component in the model, specified as a numeric
matrix containing numpreds
columns. Use X
only
when you supply optional data inputs as numeric arrays.
numpreds
is the number of predictor variables
(size(Mdl.Beta,2)
).
Each row corresponds to an observation, and measurements in each row occur
simultaneously. The last row contains the latest observation. X
must
have at least numobs
rows. If you supply more rows than necessary,
simulate
uses only the latest numobs
observations. simulate
does not use the regression component in
the presample period.
Each column is an individual predictor variable. All predictor variables are present in the regression component of each response equation.
simulate
applies X
to each path (page);
that is, X
represents one path of observed predictors.
By default, simulate
excludes the regression component,
regardless of its presence in Mdl
.
Data Types: double
PredictorVariables
— Variables to select from InSample
to treat as exogenous predictor variables xt
string vector | cell vector of character vectors | vector of integers | logical vector
Since R2022b
Variables to select from InSample
to treat as exogenous predictor
variables xt, specified as one of the following data types:
String vector or cell vector of character vectors containing
numpreds
variable names inInSample.Properties.VariableNames
A length
numpreds
vector of unique indices (integers) of variables to select fromInSample.Properties.VariableNames
A length
numvars
logical vector, wherePredictorVariables(
selects variablej
) = true
fromj
InSample.Properties.VariableNames
, andsum(PredictorVariables)
isnumpreds
Regardless, selected predictor variable
corresponds to the coefficients
j
Mdl.Beta(:,
.j
)
PredictorVariables
applies only when you specify
InSample
.
The selected variables must be numeric vectors and cannot contain missing values
(NaN
).
By default, simulate
excludes the regression component, regardless
of its presence in Mdl
.
Example: PredictorVariables=["M1SL" "TB3MS" "UNRATE"]
Example: PredictorVariables=[true false true false]
or
PredictorVariable=[1 3]
selects the first and third table variables as
the response variables.
Data Types: double
| logical
| char
| cell
| string
YF
— Future multivariate response series
numeric matrix | numeric array
Future multivariate response series for conditional simulation, specified as a numeric matrix
or array containing numseries
columns. Use YF
only
when you supply optional data inputs as numeric arrays.
Each row corresponds to observations in the simulation horizon, and the first row is the
earliest observation. Specifically, row j
in sample path
k
(YF(
)
contains the responses j
,:,k
)j
periods into the future.
YF
must have at least numobs
rows to cover the
simulation horizon. If you supply more rows than necessary, simulate
uses only the first numobs
rows.
Each column corresponds to the response variable name in
Mdl.SeriesNames
.
Each page corresponds to a separate sample path. Specifically, path
k
(YF(:,:,
)
captures the state, or knowledge, of the response series as they evolve from the presample
past (k
)Y0
) into the future.
If
YF
is a matrix,simulate
appliesYF
to each of thenumpaths
output paths (seeNumPaths
).Otherwise,
YF
must have at leastnumpaths
pages. If you supply more pages than necessary,simulate
uses only the firstnumpaths
pages.
Elements of YF
can be numeric scalars or missing values (indicated by
NaN
values). simulate
treats numeric scalars
as deterministic future responses that are known in advance, for example, set by policy.
simulate
simulates responses for corresponding
NaN
values conditional on the known values.
By default, YF
is an array composed of NaN
values indicating a complete lack of knowledge of the future state of all simulated responses. Therefore, simulate
obtains the output responses Y
from a conventional, unconditional Monte Carlo simulation.
For more details, see Algorithms.
Example: Consider simulating one path from a model composed of four
response series three periods into the future. Suppose that you have
prior knowledge about some of the future values of the responses, and
you want to simulate the unknown responses conditional on your
knowledge. Specify YF
as a matrix containing the
values that you know, and use NaN
for values you do
not know but want to simulate. For example, YF=[NaN 2 5 NaN;
NaN NaN 0.1 NaN; NaN NaN NaN NaN]
specifies that you have
no knowledge of the future values of the first and fourth response
series; you know the value for period 1 in the second response series,
but no other value; and you know the values for periods 1 and 2 in the
third response series, but not the value for period 3.
Data Types: double
Note
NaN
values inY0
andX
indicate missing values.simulate
removes missing values from the data by list-wise deletion. IfY0
is a 3-D array, thensimulate
performs these steps:Horizontally concatenate pages to form a
numpreobs
-by-numpaths*numseries
matrix.Remove any row that contains at least one
NaN
from the concatenated data.
In the case of missing observations, the results obtained from multiple paths of
Y0
can differ from the results obtained from each path individually.For conditional simulation (see
YF
), ifX
contains any missing values in the latestnumobs
observations, thensimulate
issues an error.simulate
issues an error when selected response variables fromPresample
and selected predictor variables fromInSample
contain any missing values.
Output Arguments
Y
— Simulated multivariate response series
numeric matrix | numeric array
Simulated multivariate response series, returned as a
numobs
-by-numseries
numeric matrix or a
numobs
-by-numseries
-by-numpaths
numeric array. simulate
returns Y
only when
you supply optional data sets as numeric matrices or arrays, for example, you use the
Y0
name-value argument.
Y
represents the continuation of the presample responses in
Y0
.
Each row is a time point in the simulation horizon. Values in a row, among all pages, occur simultaneously. The last row contains the latest simulated values.
Each column corresponds to the response series name in
Mdl.SeriesNames
.
Pages correspond to separate, independently simulated paths.
If you specify future responses for conditional simulation using the
YF
name-value argument, the known values in
YF
appear in the same positions in Y
. However,
Y
contains simulated values for the missing observations in
YF
.
E
— Simulated multivariate model innovations series
numeric matrix | numeric array
Simulated multivariate model innovations series, returned as a
numobs
-by-numseries
numeric matrix or a
numobs
-by-numseries
-by-numpaths
numeric array. simulate
returns E
only when
you supply optional data sets as numeric matrices or arrays, for example, you use the
Y0
name-value argument.
Elements of E
and Y
correspond.
If you specify future responses for conditional simulation (see the
YF
name-value argument), simulate
infers the innovations from the known values in YF
and places the
inferred innovations in the corresponding positions in E
. For the
missing observations in YF
, simulate
draws
from the Gaussian distribution conditional on any known values, and places the draws in
the corresponding positions in E
.
Tbl
— Simulated multivariate response, model innovations, and other variables
table | timetable
Since R2022b
Simulated multivariate response, model innovations, and other variables, returned as a
table or timetable, the same data type as Presample
or
InSample
. simulate
returns
Tbl
only when you supply at least one of the inputs
Presample
and InSample
.
Tbl
contains the following variables:
The simulated paths within the simulation horizon of the selected response series yt. Each simulated response variable in
Tbl
is anumobs
-by-numpaths
numeric matrix, wherenumobs
is the value ofNumObs
andnumpaths
is the value ofNumPaths
. Each row corresponds to a time in the simulation horizon and each column corresponds to a separate path.simulate
names the simulated response variableResponseK
. For example, ifResponseK
_ResponsesMdl.Series(
isK
)GDP
,Tbl
contains a variable for the corresponding simulated response with the nameGDP_Responses
. If you specifyResponseVariables
,
isResponseK
ResponseVariable(
. Otherwise,K
)
isResponseK
PresampleResponseVariable(
.K
)The simulated paths within the simulation horizon of the innovations εt corresponding to yt. Each simulated innovations variable in
Tbl
is anumobs
-by-numpaths
numeric matrix. Each row corresponds to a time in the simulation horizon and each column corresponds to a separate path.simulate
names the simulated innovations variable of responseResponseK
. For example, ifResponseK
_InnovationsMdl.Series(
isK
)GDP
,Tbl
contains a variable for the corresponding innovations with the nameGDP_Innovations
.
If Tbl
is a timetable, the following conditions hold:
The row order of
Tbl
, either ascending or descending, matches the row order ofInSample
, when you specify it. If you do not specifyInSample
and you specifyPresample
, the row order ofTbl
is the same as the row orderPresample
.If you specify
InSample
, row timesTbl.Time
areInSample.Time(1:numobs)
. Otherwise,Tbl.Time(1)
is the next time afterPresample(end)
relative to the sampling frequency, andTbl.Time(2:numobs)
are the following times relative to the sampling frequency.
Algorithms
Suppose Y0
and YF
are the presample and future
response data specified by the numeric data inputs in Y0
and
YF
or the selected variables from the input tables or
timetables Presample
and InSample
. Similarly,
suppose E
contains the simulated model innovations as returned in the
numeric array E
or the table or timetable
Tbl
.
simulate
performs conditional simulation using this process for all pagesk
= 1,...,numpaths
and for each timet
= 1,...,numobs
.simulate
infers (or inverse filters) the model innovations for all response variables (E(
from the known future responses (t
,:,k
)YF(
). Int
,:,k
)E
,simulate
mimics the pattern ofNaN
values that appears inYF
.For the missing elements of
E
at timet
,simulate
performs these steps.Draw
Z1
, the random, standard Gaussian distribution disturbances conditional on the known elements ofE
.Scale
Z1
by the lower triangular Cholesky factor of the conditional covariance matrix. That is,Z2
=L*Z1
, whereL
=chol(C,"lower")
andC
is the covariance of the conditional Gaussian distribution.Impute
Z2
in place of the corresponding missing values inE
.
For the missing values in
YF
,simulate
filters the corresponding random innovations through the modelMdl
.
simulate
uses this process to determine the time origin t0 of models that include linear time trends.If you do not specify
Y0
, then t0 = 0.Otherwise,
simulate
sets t0 tosize(Y0,1)
–Mdl.P
. Therefore, the times in the trend component are t = t0 + 1, t0 + 2,..., t0 +numobs
. This convention is consistent with the default behavior of model estimation in whichestimate
removes the firstMdl.P
responses, reducing the effective sample size. Althoughsimulate
explicitly uses the firstMdl.P
presample responses inY0
to initialize the model, the total number of observations inY0
(excluding any missing values) determines t0.
References
[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.
[2] Johansen, S. Likelihood-Based Inference in Cointegrated Vector Autoregressive Models. Oxford: Oxford University Press, 1995.
[3] Juselius, K. The Cointegrated VAR Model. Oxford: Oxford University Press, 2006.
[4] Lütkepohl, H. New Introduction to Multiple Time Series Analysis. Berlin: Springer, 2005.
Version History
Introduced in R2017aR2022b: simulate
accepts input data in tables and timetables, and return results in tables and timetables
In addition to accepting input data in numeric arrays,
simulate
accepts input data in tables and timetables. simulate
chooses default series on which to operate, but you can use the following name-value arguments to select variables.
Presample
specifies the input table or regular timetable of presample response data.PresampleResponseVariables
specifies the response series names inPresample
.Insample
specifies the table or regular timetable of future response and predictor data for conditional simulation.ResponseVariables
specifies the response series names inInSample
.PredictorVariables
specifies the predictor series inInSample
for a model regression component.
MATLAB コマンド
次の MATLAB コマンドに対応するリンクがクリックされました。
コマンドを MATLAB コマンド ウィンドウに入力して実行してください。Web ブラウザーは MATLAB コマンドをサポートしていません。
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
