# fevd

Generate vector autoregression (VAR) model forecast error variance decomposition (FEVD)

## Description

The fevd function returns the forecast error variance decomposition (FEVD) of the variables in a VAR(p) model attributable to shocks to each response variable in the system. A fully specified varm model object characterizes the VAR model.

To estimate or plot the FEVD of a dynamic linear model characterized by structural, autoregression, or moving average coefficient matrices, see armafevd.

The FEVD provides information about the relative importance of each innovation in affecting the forecast error variance of all response variables in the system. In contrast, the impulse response function (IRF) traces the effects of an innovation shock to one variable on the response of all variables in the system. To estimate the IRF of a VAR model characterized by a varm model object, see irf.

example

Decomposition = fevd(Mdl) returns the orthogonalized FEVDs of the response variables that compose the VAR(p) model Mdl, characterized by a fully specified varm model object. fevd shocks variables at time 0, and returns the FEVD for times 1 through 20.

example

Decomposition = fevd(Mdl,Name,Value) uses additional options specified by one or more name-value pair arguments. For example, 'NumObs',10,'Method',"generalized" specifies estimating a generalized FEVD for periods 1 through 10.

example

[Decomposition,Lower,Upper] = fevd(___) uses any of the input argument combinations in the previous syntaxes and returns lower and upper 95% confidence bounds for each period and variable in the FEVD.

• If you specify series of residuals by using the E name-value pair argument, then fevd estimates the confidence bounds by bootstrapping the specified residuals.

• Otherwise, fevd estimates confidence bounds by conducting Monte Carlo simulation.

If Mdl is a custom varm model object (an object not returned by estimate or modified after estimation), fevd might require a sample size for the simulation SampleSize or presample responses Y0.

## Examples

collapse all

Fit a 4-D VAR(2) model to Danish money and income rate series. Then, estimate and plot the orthogonalized FEVD from the estimated model.

Load the Danish money and income data set.

The data set includes four time series in the table DataTable. For more details on the data set, enter Description at the command line.

Assuming that the series are stationary, create a varm model object that represents a 4-D VAR(2) model. Specify the variable names.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;

Mdl is a varm model object specifying the structure of a 4-D VAR(2) model; it is a template for estimation.

Fit the VAR(2) model to the data set.

Mdl = estimate(Mdl,DataTable.Series);

Mdl is a fully specified varm model object representing an estimated 4-D VAR(2) model.

Estimate the orthogonalized FEVD from the estimated VAR(2) model.

Decomposition = fevd(Mdl);

Decomposition is a 20-by-4-by-4 array representing the FEVD of Mdl. Rows correspond to consecutive time points from time 1 to 20, columns correspond to variables receiving a one-standard-deviation innovation shock at time 0, and pages correspond to the variables whose forecast error variance fevd decomposes. Mdl.SeriesNames specifies the variable order.

Because Decomposition represents an orthogonalized FEVD, rows should sum to 1. This characteristic illustrates that orthogonalized FEVDs represent proportions of variance contributions. Confirm that all rows of Decomposition sum to 1.

rowsums = sum(Decomposition,2);
sum((rowsums - 1).^2 > eps)
ans =
ans(:,:,1) =

0

ans(:,:,2) =

0

ans(:,:,3) =

0

ans(:,:,4) =

0

Row sums among the pages are close to 1.

Display the contributions to the forecast error variance of the bond rate when real income is shocked at time 0.

Decomposition(:,2,3)
ans = 20×1

0.0499
0.1389
0.1700
0.1807
0.1777
0.1694
0.1601
0.1516
0.1446
0.1390
⋮

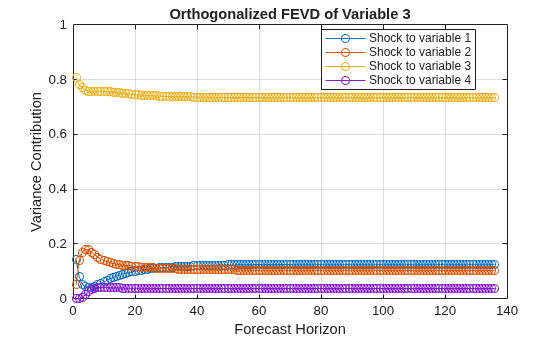

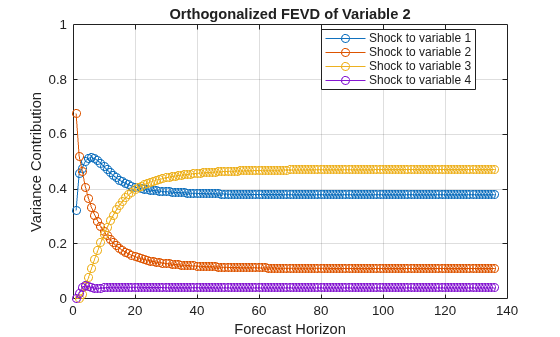

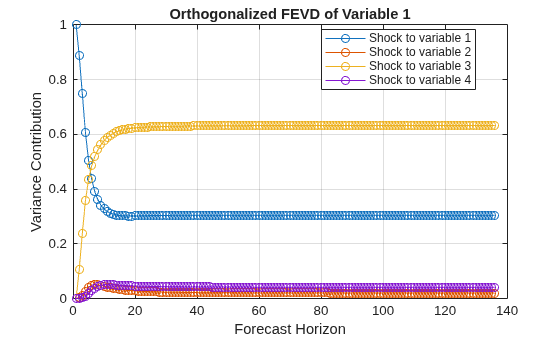

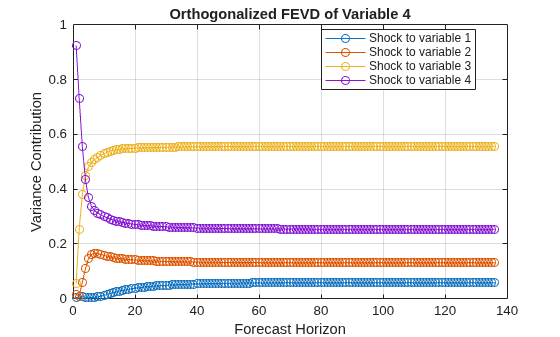

Plot the FEVDs of all series on separate plots by passing the estimated AR coefficient matrices and innovations covariance matrix of Mdl to armafevd.

armafevd(Mdl.AR,[],"InnovCov",Mdl.Covariance);

Each plot shows the four FEVDs of a variable when all other variables are shocked at time 0. Mdl.SeriesNames specifies the variable order.

Consider the 4-D VAR(2) model in Estimate and Plot VAR Model FEVD. Estimate the generalized FEVD of the system for 100 periods.

Load the Danish money and income data set, then estimate the VAR(2) model.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
Mdl = estimate(Mdl,DataTable.Series);

Estimate the generalized FEVD from the estimated VAR(2) model over a forecast horizon with length 100.

Decomposition = fevd(Mdl,"Method","generalized","NumObs",100);

Decomposition is a 100-by-4-by-4 array representing the generalized FEVD of Mdl.

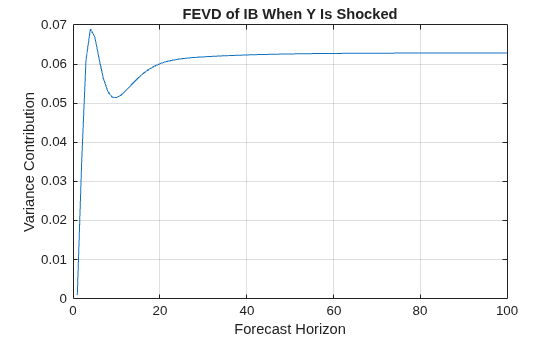

Plot the generalized FEVD of the bond rate when real income is shocked at time 0.

figure;
plot(1:100,Decomposition(:,2,3))
title("FEVD of IB When Y Is Shocked")
xlabel("Forecast Horizon")
ylabel("Variance Contribution")
grid on

When real income is shocked, the contribution of the bond rate to the forecast error variance settles at approximately 0.061.

Consider the 4-D VAR(2) model in Estimate and Plot VAR Model FEVD. Estimate and plot its orthogonalized FEVD and 95% Monte Carlo confidence intervals on the true FEVD.

Load the Danish money and income data set, then estimate the VAR(2) model.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
Mdl = estimate(Mdl,DataTable.Series);

Estimate the FEVD and corresponding 95% Monte Carlo confidence intervals from the estimated VAR(2) model.

rng(1); % For reproducibility
[Decomposition,Lower,Upper] = fevd(Mdl);

Decomposition, Lower, and Upper are 20-by-4-by-4 arrays representing the orthogonalized FEVD of Mdl and corresponding lower and upper bounds of the confidence intervals. For all arrays, rows correspond to consecutive time points from time 1 to 20, columns correspond to variables receiving a one-standard-deviation innovation shock at time 0, and pages correspond to the variables whose forecast error variance fevd decomposes. Mdl.SeriesNames specifies the variable order.

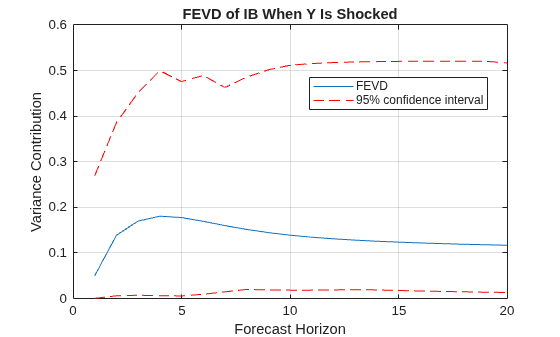

Plot the orthogonalized FEVD with its confidence bounds of the bond rate when real income is shocked at time 0.

fevdshock2resp3 = Decomposition(:,2,3);
FEVDCIShock2Resp3 = [Lower(:,2,3) Upper(:,2,3)];

figure;
h1 = plot(1:20,fevdshock2resp3);
hold on
h2 = plot(1:20,FEVDCIShock2Resp3,'r--');
legend([h1 h2(1)],["FEVD" "95% Confidence Interval"],...
'Location',"best")
xlabel("Forecast Horizon");
ylabel("Variance Contribution");
title("FEVD of IB When Y Is Shocked");
grid on
hold off

In the long run, and when real income is shocked, the proportion of forecast error variance of the bond rate settles between approximately 0 and 0.5 with 95% confidence.

Consider the 4-D VAR(2) model in Estimate and Plot VAR Model FEVD. Estimate and plot its orthogonalized FEVD and 90% bootstrap confidence intervals on the true FEVD.

Load the Danish money and income data set, then estimate the VAR(2) model. Return the residuals from model estimation.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
[Mdl,~,~,E] = estimate(Mdl,DataTable.Series);
T = size(DataTable,1) % Total sample size
T = 55
n = size(E,1)         % Effective sample size
n = 53

E is a 53-by-4 array of residuals. Columns correspond to the variables in Mdl.SeriesNames. The estimate function requires Mdl.P = 2 observations to initialize a VAR(2) model for estimation. Because presample data (Y0) is unspecified, estimate takes the first two observations in the specified response data to initialize the model. Therefore, the resulting effective sample size is TMdl.P = 53, and rows of E correspond to the observation indices 3 through T.

Estimate the orthogonalized FEVD and corresponding 90% bootstrap confidence intervals from the estimated VAR(2) model. Draw 500 paths of length n from the series of residuals.

rng(1); % For reproducibility
[Decomposition,Lower,Upper] = fevd(Mdl,"E",E,"NumPaths",500,...
"Confidence",0.9);

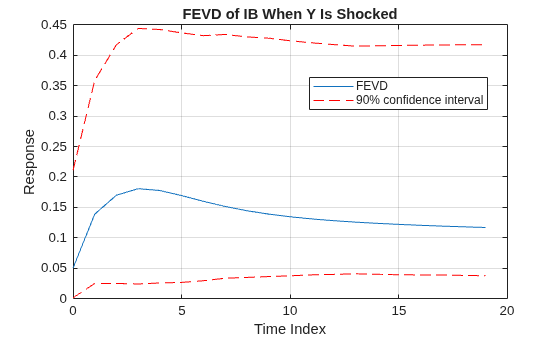

Plot the orthogonalized FEVD with its confidence bounds of the bond rate when real income is shocked at time 0.

fevdshock2resp3 = Decomposition(:,2,3);
FEVDCIShock2Resp3 = [Lower(:,2,3) Upper(:,2,3)];

figure;
h1 = plot(0:19,fevdshock2resp3);
hold on
h2 = plot(0:19,FEVDCIShock2Resp3,'r--');
legend([h1 h2(1)],["FEVD" "90% Confidence Interval"],...
'Location',"best")
xlabel("Time Index");
ylabel("Response");
title("FEVD of IB When Y Is Shocked");
grid on
hold off

In the long run, and when real income is shocked, the proportion of forecast error variance of the bond rate settles between approximately 0.05 and 0.4 with 90% confidence.

## Input Arguments

collapse all

VAR model, specified as a varm model object created by varm or estimate. Mdl must be fully specified.

### Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'NumObs',10,'Method',"generalized" specifies estimating a generalized FEVD for periods 1 through 10.

Options for All FEVDs

collapse all

Number of periods for which fevd computes the FEVD (the forecast horizon), specified as the comma-separated pair consisting of 'NumObs' and a positive integer. NumObs specifies the number of observations to include in the FEVD (the number of rows in Decomposition).

Example: 'NumObs',10 specifies estimation of the FEVD for times 1 through 10.

Data Types: double

FEVD computation method, specified as the comma-separated pair consisting of 'Method' and a value in this table.

ValueDescription
"orthogonalized"Compute variance decompositions using orthogonalized, one-standard-deviation innovation shocks. fevd uses the Cholesky factorization of Mdl.Covariance for orthogonalization.
"generalized"Compute variance decompositions using one-standard-deviation innovation shocks.

Example: 'Method',"generalized"

Data Types: char | string

Options for Confidence Bound Estimation

collapse all

Number of sample paths (trials) to generate, specified as the comma-separated pair consisting of 'NumPaths' and a positive integer.

Example: 'NumPaths',1000 generates 1000 sample paths from which the software derives the confidence bounds.

Data Types: double

Number of observations for the Monte Carlo simulation or bootstrap per sample path, specified as the comma-separated pair consisting of 'SampleSize' and a positive integer.

• If Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter), then the default is the sample size of the data to which the model is fit (see summarize).

• If fevd estimates confidence bounds by conducting a Monte Carlo simulation (for details, see E), you must specify SampleSize.

• If fevd estimates confidence bounds by bootstrapping residuals, the default is the length of the specified series of residuals (size(E,1)).

Example: If you specify 'SampleSize',100 and do not specify the 'E' name-value pair argument, the software estimates confidence bounds from NumPaths random paths of length 100 from Mdl.

Example: If you specify 'SampleSize',100,'E',E, the software resamples, with replacement, 100 observations (rows) from E to form a sample path of innovations to filter through Mdl. The software forms NumPaths random sample paths from which it derives confidence bounds.

Data Types: double

Presample response data that provides initial values for model estimation during the simulation, specified as the comma-separated pair consisting of 'Y0' and a numpreobs-by-numseries numeric matrix.

Rows of Y0 correspond to periods in the presample, and the last row contains the latest presample response. numpreobs is the number of specified presample responses and it must be at least Mdl.P. If numpreobs exceeds Mdl.P, then fevd uses only the latest Mdl.P rows.

numseries is the dimensionality of the input VAR model Mdl.NumSeries. Columns must correspond to the response variables in Mdl.SeriesNames.

• If Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter), fevd sets Y0 to the presample response data used for estimation by default (see 'Y0').

• Otherwise, you must specify Y0.

Data Types: double

Predictor data for estimating the model regression component during the simulation, specified as the comma-separated pair consisting of 'X' and a numeric matrix containing numpreds columns.

numpreds is the number of predictor variables (size(Mdl.Beta,2)).

Rows correspond to observations. X must have at least SampleSize rows. If you supply more rows than necessary, fevd uses only the latest SampleSize observations. The last row contains the latest observation.

Columns correspond to individual predictor variables. All predictor variables are present in the regression component of each response equation.

To maintain model consistency when fevd estimates the confidence bounds, a good practice is to specify X when Mdl has a regression component. If Mdl is an estimated model, specify the predictor data used during model estimation (see 'X').

By default, fevd excludes the regression component from confidence bound estimation, regardless of its presence in Mdl.

Data Types: double

Series of residuals from which to draw bootstrap samples, specified as the comma-separated pair consisting of 'E' and a numeric matrix containing numseries columns. fevd assumes that E is free of serial correlation.

Columns contain the residual series corresponding to the response series names in Mdl.SeriesNames.

If Mdl is an estimated varm model object (an object returned by estimate), you can specify E as the inferred residuals from estimation (see E or infer).

By default, fevd derives confidence bounds by conducting a Monte Carlo simulation.

Data Types: double

Confidence level for the confidence bounds, specified as a numeric scalar in the interval [0,1].

For each period, randomly drawn confidence intervals cover the true response 100*Confidence% of the time.

The default value is 0.95, which implies that the confidence bounds represent 95% confidence intervals.

Data Types: double

## Output Arguments

collapse all

FEVD of each response variable, returned as a numobs-by-numseries-by-numseries numeric array. numobs is the value of NumObs. Columns and pages correspond to the response variables in Mdl.SeriesNames.

Decomposition(t,j,k) is the contribution to the variance decomposition of variable k attributable to a one-standard-deviation innovation shock to variable j at time t, for t = 1,2,…,numobs, j = 1,2,...,numseries, and k = 1,2,...,numseries.

Lower confidence bounds, returned as a numobs-by-numseries-by-numseries numeric array. Elements of Lower correspond to elements of Decomposition.

Lower(t,j,k) is the lower bound of the 100*Confidence% percentile interval on the true contribution to the variance decomposition of variable k attributable to a one-standard-deviation innovation shock to variable j at time 0.

Upper confidence bounds, returned as a numobs-by-numseries-by-numseries numeric array. Elements of Upper correspond to elements of Decomposition.

Upper(t,j,k) is the upper bound of the 100*Confidence% percentile interval on the true contribution to the variance decomposition of variable k attributable to a one-standard-deviation innovation shock to variable j at time 0.

collapse all

### Forecast Error Variance Decomposition

The forecast error variance decomposition (FEVD) of a multivariate, dynamic system shows the relative importance of a shock to each innovation in affecting the forecast error variance of all variables in the system.

Consider a numseries-D VAR(p) model for the multivariate response variable yt. In lag operator notation, the infinite lag MA representation of yt is:

$\begin{array}{c}{y}_{t}={\Phi }^{-1}\left(L\right)\left(c+\beta {x}_{t}+\delta t\right)+{\Phi }^{-1}\left(L\right){\epsilon }_{t}\\ =\Omega \left(L\right)\left(c+\beta {x}_{t}+\delta t\right)+\Omega \left(L\right){\epsilon }_{t}.\end{array}$

The general form of the FEVD of ykt (variable k) m periods into the future, attributable to a one-standard-deviation innovation shock to yjt, is

${\gamma }_{mjk}=\frac{\sum _{t=0}^{m-1}{\left({e}_{k}{}^{\prime }{C}_{t}{e}_{j}\right)}^{2}}{\sum _{t=0}^{m-1}{e}_{k}^{\prime }{\Omega }_{t}\Sigma {\Omega }_{t}^{\prime }{e}_{k}}.$

• ej is a selection vector of length numseries containing a 1 in element j and zeros elsewhere.

• For orthogonalized FEVDs, ${C}_{m}={\Omega }_{m}P,$ where P is the lower triangular factor in the Cholesky factorization of Σ.

• For generalized FEVDs, ${C}_{m}={\sigma }_{j}^{-1}{\Omega }_{m}\Sigma ,$ where σj is the standard deviation of innovation j.

• The numerator is the contribution of an innovation shock to variable j to the forecast error variance of the m-step-ahead forecast of variable k. The denominator is the mean square error (MSE) of the m-step-ahead forecast of variable k [3].

### Vector Autoregression Model

A vector autoregression (VAR) model is a stationary multivariate time series model consisting of a system of m equations of m distinct response variables as linear functions of lagged responses and other terms.

A VAR(p) model in difference-equation notation and in reduced form is

${y}_{t}=c+{\Phi }_{1}{y}_{t-1}+{\Phi }_{2}{y}_{t-2}+...+{\Phi }_{p}{y}_{t-p}+\beta {x}_{t}+\delta t+{\epsilon }_{t}.$

• yt is a numseries-by-1 vector of values corresponding to numseries response variables at time t, where t = 1,...,T. The structural coefficient is the identity matrix.

• c is a numseries-by-1 vector of constants.

• Φj is a numseries-by-numseries matrix of autoregressive coefficients, where j = 1,...,p and Φp is not a matrix containing only zeros.

• xt is a numpreds-by-1 vector of values corresponding to numpreds exogenous predictor variables.

• β is a numseries-by-numpreds matrix of regression coefficients.

• δ is a numseries-by-1 vector of linear time-trend values.

• εt is a numseries-by-1 vector of random Gaussian innovations, each with a mean of 0 and collectively a numseries-by-numseries covariance matrix Σ. For ts, εt and εs are independent.

Condensed and in lag operator notation, the system is

$\Phi \left(L\right){y}_{t}=c+\beta {x}_{t}+\delta t+{\epsilon }_{t},$

where $\Phi \left(L\right)=I-{\Phi }_{1}L-{\Phi }_{2}{L}^{2}-...-{\Phi }_{p}{L}^{p}$, Φ(L)yt is the multivariate autoregressive polynomial, and I is the numseries-by-numseries identity matrix.

## Algorithms

• If Method is "orthogonalized", then fevd orthogonalizes the innovation shocks by applying the Cholesky factorization of the model covariance matrix Mdl.Covariance. The covariance of the orthogonalized innovation shocks is the identity matrix, and the FEVD of each variable sums to one (that is, the sum along any row of Decomposition is one). Therefore, the orthogonalized FEVD represents the proportion of forecast error variance attributable to various shocks in the system. However, the orthogonalized FEVD generally depends on the order of the variables.

If Method is "generalized", then the resulting FEVD is invariant to the order of the variables, and is not based on an orthogonal transformation. Also, the resulting FEVD sums to one for a particular variable only when Mdl.Covariance is diagonal [4]. Therefore, the generalized FEVD represents the contribution to the forecast error variance of equation-wise shocks to the response variables in the model.

• If Mdl.Covariance is a diagonal matrix, then the resulting generalized and orthogonalized FEVDs are identical. Otherwise, the resulting generalized and orthogonalized FEVDs are identical only when the first variable shocks all variables (that is, all else being the same, both methods yield the same value of Decomposition(:,1,:)).

• NaN values in Y0, X, and E indicate missing data. fevd removes missing data from these arguments by list-wise deletion. Each argument, if a row contains at least one NaN, then fevd removes the entire row.

List-wise deletion reduces the sample size, can create irregular time series, and can cause E and X to be unsynchronized.

• The predictor data X represents a single path of exogenous multivariate time series. If you specify X and the VAR model Mdl has a regression component (Mdl.Beta is not an empty array), fevd applies the same exogenous data to all paths used for confidence interval estimation.

• fevd conducts a simulation to estimate the confidence bounds Lower and Upper.

• If you do not specify residuals E, then fevd conducts a Monte Carlo simulation by following this procedure:

1. Simulate NumPaths response paths of length SampleSize from Mdl.

2. Fit NumPaths models that have the same structure as Mdl to the simulated response paths. If Mdl contains a regression component and you specify X, the fevd fits the NumPaths models to the simulated response paths and X (the same predictor data for all paths).

3. Estimate NumPaths FEVDs from the NumPaths estimated models.

4. For each time point t = 0,…,NumObs, estimate the confidence intervals by computing 1 – Confidence and Confidence quantiles (the upper and lower bounds, respectively).

• If you specify residuals E, then fevd conducts a nonparametric bootstrap by following this procedure:

1. Resample, with replacement, SampleSize residuals from E. Perform this step NumPaths times to obtain NumPaths paths.

2. Center each path of bootstrapped residuals.

3. Filter each path of centered, bootstrapped residuals through Mdl to obtain NumPaths bootstrapped response paths of length SampleSize.

4. Complete steps 2 through 4 of the Monte Carlo simulation, but replace the simulated response paths with the bootstrapped response paths.

## References

[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Lütkepohl, H. "Asymptotic Distributions of Impulse Response Functions and Forecast Error Variance Decompositions of Vector Autoregressive Models." Review of Economics and Statistics. Vol. 72, 1990, pp. 116–125.

[3] Lütkepohl, Helmut. New Introduction to Multiple Time Series Analysis. New York, NY: Springer-Verlag, 2007.

[4] Pesaran, H. H., and Y. Shin. "Generalized Impulse Response Analysis in Linear Multivariate Models." Economic Letters. Vol. 58, 1998, pp. 17–29.

## Version History

Introduced in R2019a
