Main Content

coverage

Display or compute coverage map

Description

example

coverage(txs) displays the coverage map for the specified transmitter site in the current Site Viewer. Each colored contour of the map defines an area where the corresponding signal strength is transmitted to the mobile receiver.

Note

This function only supports antenna sites with CoordinateSystem property set to "geographic".

coverage(txs,propmodel) displays the coverage map based on the specified propagation model. The default propagation model is "longley-rice" when terrain is in use and "freespace" when terrain is not used.

coverage(txs,rx) displays the coverage map based on the receiver site properties.

example

coverage(txs,rx,propmodel) displays the coverage map based on the receiver site properties and specified propagation model.

example

coverage(___,Name,Value) displays the coverage map using additional options specified by the Name,Value pairs.

pd = coverage(txs,___) returns computed coverage data in the propagation data object, pd. No plot is displayed and any graphical only name-value pairs are ignored.

Examples

collapse all

Create a transmitter site at MathWorks headquarters.

tx = txsite('Name','MathWorks', ...
        'Latitude', 42.3001, ...
        'Longitude', -71.3503);

Show the coverage map.

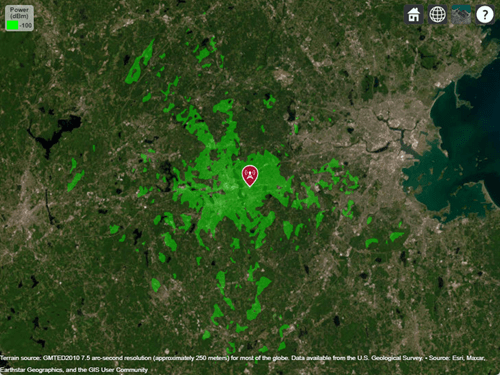

coverage(tx)

Create a transmitter site at MathWorks headquarters.

tx = txsite('Name','MathWorks', ...
        'Latitude', 42.3001, ...
        'Longitude', -71.3503);

Create a receiver site at Fenway Park with an antenna height of 1.2 m and system loss of 10 dB.

rx = rxsite('Name','Fenway Park', ...
       'Latitude',42.3467, ...
       'Longitude',-71.0972,'AntennaHeight',1.2,'SystemLoss',10);

Calculate the coverage area of the transmitter using a close-in propagation model.

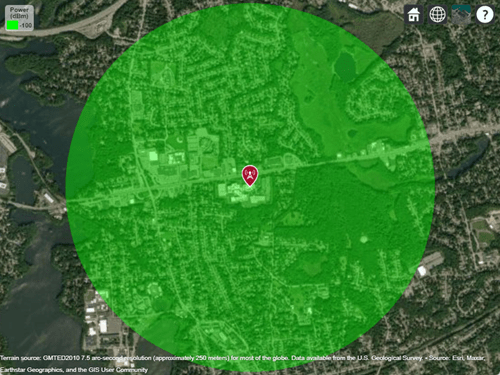

coverage(tx,rx,'PropagationModel','closein')

Define strong and weak signal strengths with corresponding colors.

strongSignal = -75;
strongSignalColor = "green";
weakSignal = -90;
weakSignalColor = "cyan";

Create a transmitter site and display the coverage map.

tx = txsite('Name','MathWorks', ...
    'Latitude',42.3001, ...
    'Longitude',-71.3503);
coverage(tx, ...
    'SignalStrengths',[strongSignal,weakSignal], ...
    'Colors', [strongSignalColor,weakSignalColor])

Define a Yagi-Uda antenna designed for a transmitter frequency of 4.5 GHz. Tilt the antenna to direct radiation in the XY-plane (i.e., geographic azimuth).

fq = 4.5e9;
y = design(yagiUda,fq);
y.Tilt = 90;
y.TiltAxis = 'y';

Create a transmitter site with this directional antenna.

tx = txsite('Name','MathWorks', ...
    'Latitude',42.3001,'Longitude',-71.3503, ...
    'Antenna',y,'AntennaHeight',60, ...
    'TransmitterFrequency',fq,'TransmitterPower',10);

Display the coverage map using the rain propagation model. The map pattern points east, which corresponds to default antenna angle value of 0 degrees.

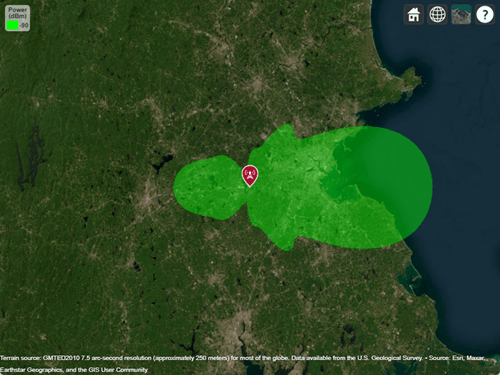

coverage(tx,'rain','SignalStrengths',-90)

Define the names and the locations of sites around Boston.

names = ["Fenway Park","Faneuil Hall","Bunker Hill Monument"];
lats = [42.3467,42.3598,42.3763];
lons = [-71.0972,-71.0545,-71.0611];

Create the transmitter site array.

txs = txsite('Name', names,...
       'Latitude',lats,...
       'Longitude',lons, ...
       'TransmitterFrequency',2.5e9);

Display the combined coverage map for multiple signal strengths, using close-in propagation model.

coverage(txs,'close-in','SignalStrengths',-100:5:-60)

Launch Site Viewer using buildings in Chicago. For more information about the OpenStreetMap® file, see [1].

viewer = siteviewer("Buildings","chicago.osm");

Create a transmitter site on a building.

tx = txsite("Latitude",41.8800, ...
   "Longitude",-87.6295, ...
   "TransmitterFrequency",2.5e9);
show(tx)

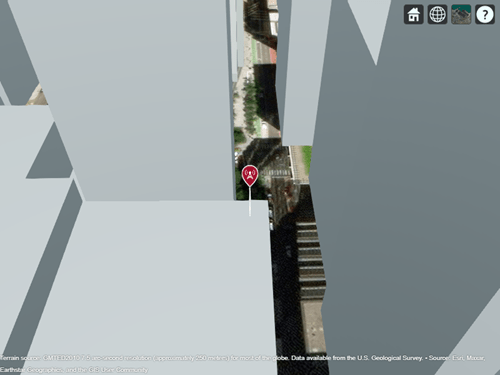

Site Viewer with buildings and a transmitter site

Coverage Map Using Longley-Rice Propagation Model

Create a coverage map of the city using the Longley-Rice propagation model.

coverage(tx,"SignalStrengths",-100:-5,"MaxRange",250,"Resolution",1)

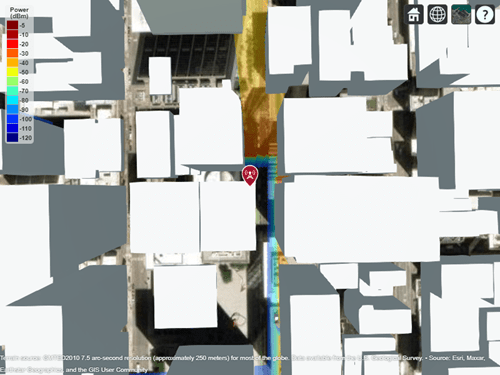

Site Viewer with coverage map

Longley-Rice models over-the-rooftops propagation along vertical slices and obstructions tend to dominate the coverage region.

Coverage Map Using Ray Tracing Propagation Model and Image Method

Create a ray tracing propagation model, which MATLAB® represents using a RayTracing object. Configure the model to use the image method and to find propagation paths with up to 1 surface reflection.

pmImage = propagationModel("raytracing","Method","image", ...
    "MaxNumReflections",1);

Create a coverage map of the city using the transmitter site and the ray tracing propagation model.

coverage(tx,pmImage,"SignalStrengths",-100:-5, ...
    "MaxRange",250,"Resolution",2)

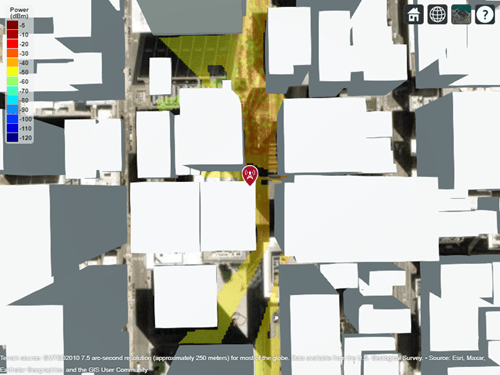

The same Site Viewer with a coverage map that includes more in-service areas

This coverage map shows new regions that are in service due to reflected propagation paths.

Coverage Map Using Ray Tracing Propagation Model and SBR Method

Create another ray tracing propagation model. This time, configure the model to use the shooting and bouncing rays (SBR) method and to find propagation paths with up to 2 surface reflections. The SBR method is generally faster than the image method.

pmSBR = propagationModel("raytracing","Method","sbr", ...
    "MaxNumReflections",2);

Create an updated coverage map of the city.

coverage(tx,pmSBR,"SignalStrengths",-100:-5, ...
    "MaxRange",250,"Resolution",2)

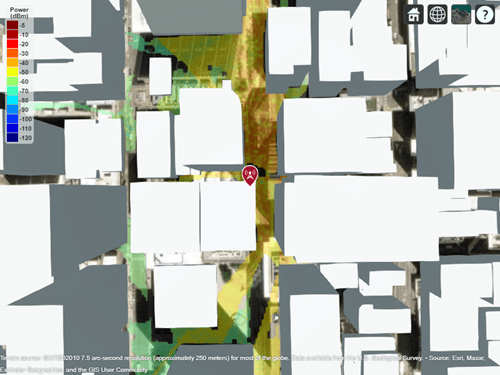

The same Site Viewer with a coverage map that includes more in-service areas

This coverage map shows new regions that are in service due to the additional reflected propagation paths.

Appendix

[1] The OpenStreetMap file is downloaded from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

Input Arguments

collapse all

Transmitter site, specified as a txsite object. Use array inputs to specify multiple sites.

This function only supports plotting antenna sites when CoordinateSystem property is set to "geographic".

Receiver site, specified as a rxsite object.

This function only supports plotting antenna sites when CoordinateSystem property is set to "geographic".

Propagation model to use for the path loss calculations, specified as one of these options:

  • "freespace" — Free space propagation model

  • "rain" — Rain propagation model

  • "gas" — Gas propagation model

  • "fog" — Fog propagation model

  • "close-in" — Close-in propagation model

  • "longley-rice" — Longley-Rice propagation model

  • "tirem" — TIREM™ propagation model

  • "raytracing" — Ray tracing propagation model that uses the shooting and bouncing rays (SBR) method. When you specify a ray tracing model as input, the function incorporates multipath interference by using a phasor sum.

  • A propagation model created using the propagationModel function. For example, you can create a ray tracing propagation model that uses the image method by specifying propagationModel("raytracing","Method","image").

The default value depends on the coordinate system used by the input sites.

Coordinate SystemDefault propagation model value
"geographic"
  • "longley-rice" when you use a terrain.

  • "freespace" when you do not use a terrain.

"cartesian"
  • "freespace" when Map is set to none.

  • "raytracing" when Map is set to the name of a glTF™ file, the name of an STL file, or a triangulation object. The default ray tracing model uses the shooting and bouncing rays (SBR) method.

Terrain propagation models, including "longley-rice" and "tirem", are only supported for sites with a CoordinateSystem value of "geographic".

You can also specify the propagation model by using the PropagationModel name-value pair argument.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "Type","power"

Type of signal strength to compute, specified as one of these options:

  • "power" — The signal strengths in SignalStrengths is in power units (dBm) of the signal at the mobile receiver input.

  • "efield"— The signal strength in SignalStrengths is in electric field strength units (dBμV/m) of signal wave incident on the antenna.

Data Types: char | string

Signal strengths to display on coverage map, specified as a numeric vector.

Each strength uses different colored filled contour on the map. The default value is -100 dBm if Type is "power" and 40 dBμV/m if Type is "efield".

Data Types: double

Propagation model to use for the path loss calculations, specified as one of these options:

  • "freespace" — Free space propagation model

  • "rain" — Rain propagation model

  • "gas" — Gas propagation model

  • "fog" — Fog propagation model

  • "close-in" — Close-in propagation model

  • "longley-rice" — Longley-Rice propagation model

  • "tirem" — TIREM propagation model

  • "raytracing" — Ray tracing propagation model that uses the shooting and bouncing rays (SBR) method. When you specify a ray tracing model as input, the function incorporates multipath interference by using a phasor sum.

  • A propagation model created using the propagationModel function. For example, you can create a ray tracing propagation model that uses the image method by specifying propagationModel("raytracing","Method","image").

The default value depends on the coordinate system used by the input sites.

Coordinate SystemDefault propagation model value
"geographic"
  • "longley-rice" when you use a terrain.

  • "freespace" when you do not use a terrain.

"cartesian"
  • "freespace" when Map is set to none.

  • "raytracing" when Map is set to the name of a glTF file, the name of an STL file, or a triangulation object. The default ray tracing model uses the shooting and bouncing rays (SBR) method.

Terrain propagation models, including "longley-rice" and "tirem", are only supported for sites with a CoordinateSystem value of "geographic".

Data Types: char | string

Maximum range of coverage map from each transmitter site, specified as a positive numeric scalar in meters representing great circle distance. MaxRange defines the region of interest on the map to plot. The default value is automatically computed based on the type of propagation model.

Type of Propagation ModelMaxRange
Atmospheric or empiricalRange of minimum value in SignalStrengths.
Terrain30 km or distance to the furthest building.
Ray tracing500 m

For more information about the types of propagation models, see Choose a Propagation Model.

Data Types: double

Resolution of coverage map, specified as "auto" or a numeric scalar in meters.

The resolution of "auto" computes the maximum value scaled to MaxRange. Decreasing the resolution increases the quality of the coverage map and the time required to create it.

Data Types: char | string | double

Mobile receiver gain, specified as a numeric scalar in dB. The receiver gain value includes the mobile receiver antenna gain and system loss.

The receiver gain computes received signal strength when Type is "power".

If receiver site argument rx is passed to coverage, the default value is the maximum gain of the receiver antenna with the system loss subtracted. Otherwise the default value is 2.1.

Data Types: char | string | double

Mobile receiver antenna height above ground elevation, specified as a numeric scalar in meters.

If receiver site argument rx is passed to coverage, the default value is the AntennaHeight of the receiver. Otherwise the default value is 1.

Data Types: double

Colors of filled contours on coverage map, specified as one of these options:

  • An M-by-3 array of RGB triplets whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

  • An array of strings such as ["red" "green" "blue"] or ["r" "g" "b"].

  • A cell array of character vectors such as {'red','green','blue'} or {'r','g','b'}.

Colors are assigned element-wise to SignalStrengths values for coloring the corresponding filled contours.

Colors cannot be used with ColorLimits or ColorMap.

This table contains the color names and equivalent RGB triplets for some common colors.

Color NameShort NameRGB TripletAppearance
"red""r"[1 0 0]

Sample of the color red

"green""g"[0 1 0]

Sample of the color green

"blue""b"[0 0 1]

Sample of the color blue

"cyan" "c"[0 1 1]

Sample of the color cyan

"magenta""m"[1 0 1]

Sample of the color magenta

"yellow""y"[1 1 0]

Sample of the color yellow

"black""k"[0 0 0]

Sample of the color black

"white""w"[1 1 1]

Sample of the color white

Data Types: char | string | double

Color limits for colormap, specified as a two-element vector of type [min max].

The color limits indicate the signal level values that map to the first and last colors on the colormap.

The default value is [-120 -5] if the Type is "power" and [20 135] if Type is "efield".

ColorLimits cannot be used with Colors.

Data Types: double

Colormap filled contours on coverage map, specified as a predefined colormap or M-by-3 array of RGB triplets, where M defines individual colors.

ColorMap cannot be used with Colors.

Data Types: char | string | double

Show signal strength color legend on map, specified as true or false.

Data Types: logical

Transparency of coverage map, specified as a numeric scalar in the range 0 to 1. 0 is transparent and 1 is opaque.

Data Types: double

Map for visualization of surface data, specified as a siteviewer object.1

Data Types: char | string

Output Arguments

collapse all

Coverage data, returned as a propagationData object consisting of Latitude and Longitude, and a signal strength variable corresponding to the plot type. Name of the propagationData is "Coverage Data".

Limitations

When you specify a RayTracing object as input to the coverage function, the value of the MaxNumDiffractions property must be 0 or 1.

Version History

Introduced in R2017b

expand all


1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
