HTML の解析およびテキスト コンテンツの抽出

ライブ スクリプトを開く

この例では、HTML コードを解析し、特定の要素からテキスト コンテンツを抽出する方法を示します。

HTML コードの解析

webread を使用して、URL https://www.mathworks.com/help/textanalytics から HTML コードを読み取ります。

url = "https://www.mathworks.com/help/textanalytics";
code = webread(url);

htmlTree を使用して HTML コードを解析します。

tree = htmlTree(code);

ツリーの HTML 要素名を表示します。

tree.Name
ans =
"HTML"

ツリーの子要素を表示します。子は tree のサブツリーです。

tree.Children
ans =
  4×1 htmlTree:

    " "
    <HEAD><TITLE>Text Analytics Toolbox Documentation</TITLE><META charset="utf-8"/><META content="width=device-width, initial-scale=1.0" name="viewport"/><META content="IE=edge" http-equiv="X-UA-Compatible"/><LINK href="/includes_content/responsive/css/bootstrap/bootstrap.min.css" rel="stylesheet" type="text/css"/><LINK href="/includes_content/responsive/css/site6.css?20180314" rel="stylesheet" type="text/css"/><LINK href="/includes_content/responsive/css/site6_lg.css?20180314" media="screen and (min-width: 1200px)" rel="stylesheet"/><LINK href="/includes_content/responsive/css/site6_md.css?20180314" media="screen and (min-width: 992px) and (max-width: 1199px)" rel="stylesheet"/><LINK href="/includes_content/responsive/css/site6_sm+xs.css?20180314" media="screen and (max-width: 991px)" rel="stylesheet"/><LINK href="/includes_content/responsive/css/site6_sm.css?20180314" media="screen and (min-width: 768px) and (max-width: 991px)" rel="stylesheet"/><LINK href="/includes_content/responsive/…
    " "
    <BODY id="responsive_offcanvas"><!-- Mobile TopNav: Start --><DIV class="header visible-xs visible-sm" id="header_mobile" translate="no"><NAV class="navbar navbar-default" role="navigation"><DIV class="container-fluid"><DIV class="row"><DIV class="col-xs-12"><DIV class="navbar-header"><BUTTON class="navbar-toggle topnav_toggle" data-target="#topnav_collapse" data-toggle="collapse" type="button"><SPAN class="sr-only">Toggle Main Navigation</SPAN><SPAN class="icon-menu"/></BUTTON><A class="svg_link navbar-brand" href="https://www.mathworks.com?s_tid=gn_logo"><IMG alt="MathWorks" class="mw_logo" src="/images/responsive/global/pic-header-mathworks-logo.svg"/></A></DIV></DIV></DIV><DIV class="row visible-xs visible-sm"><DIV class="col-xs-12"><DIV class="navbar-collapse collapse" id="topnav_collapse"><UL class="nav navbar-nav" id="topnav"><LI class="headernav_login"><A class="mwa-nav_login" href="https://www.mathworks.com/login?uri=http://www.mathworks.com/help/textanalytics/index.html">Sign…

HTML ツリーからのテキストの抽出

HTML ツリーからテキストを直接抽出するには、extractHTMLText を使用します。

str = extractHTMLText(tree)
str =
    "Text Analytics Toolbox™ provides algorithms and visualizations for preprocessing, analyzing, and modeling text data. Models created with the toolbox can be used in applications such as sentiment analysis, predictive maintenance, and topic modeling.

     Text Analytics Toolbox includes tools for processing raw text from sources such as equipment logs, news feeds, surveys, operator reports, and social media. You can extract text from popular file formats, preprocess raw text, extract individual words, convert text into numerical representations, and build statistical models.

     Using machine learning techniques such as LSA, LDA, and word embeddings, you can find clusters and create features from high-dimensional text datasets. Features created with Text Analytics Toolbox can be combined with features from other data sources to build machine learning models that take advantage of textual, numeric, and other types of data."

HTML 要素の検出

HTML ツリーの特定の要素を見つけるには、findElement を使用します。HTML ツリー内のすべてのハイパーリンクを見つけます。HTML では、ハイパーリンクは "A" タグを使用します。

selector = "A";
subtrees = findElement(tree,selector);

最初のいくつかのサブツリーを表示します。

subtrees(1:20)
ans =
  20×1 htmlTree:

    <A class="svg_link navbar-brand" href="https://www.mathworks.com?s_tid=gn_logo"><IMG alt="MathWorks" class="mw_logo" src="/images/responsive/global/pic-header-mathworks-logo.svg"/></A>
    <A class="mwa-nav_login" href="https://www.mathworks.com/login?uri=http://www.mathworks.com/help/textanalytics/index.html">Sign In</A>
    <A href="https://www.mathworks.com/products.html?s_tid=gn_ps">Products</A>
    <A href="https://www.mathworks.com/solutions.html?s_tid=gn_sol">Solutions</A>
    <A href="https://www.mathworks.com/academia.html?s_tid=gn_acad">Academia</A>
    <A href="https://www.mathworks.com/support.html?s_tid=gn_supp">Support</A>
    <A href="https://www.mathworks.com/matlabcentral/?s_tid=gn_mlc">Community</A>
    <A href="https://www.mathworks.com/company/events.html?s_tid=gn_ev">Events</A>
    <A href="https://www.mathworks.com/company/aboutus/contact_us.html?s_tid=gn_cntus">Contact Us</A>
    <A href="https://www.mathworks.com/store?s_cid=store_top_nav&amp;s_tid=gn_store">How to Buy</A>
    <A href="https://www.mathworks.com/company/aboutus/contact_us.html?s_tid=gn_cntus">Contact Us</A>
    <A href="https://www.mathworks.com/store?s_cid=store_top_nav&amp;s_tid=gn_store">How to Buy</A>
    <A class="mwa-nav_login" href="https://www.mathworks.com/login?uri=http://www.mathworks.com/help/textanalytics/index.html">Sign In</A>
    <A class="svg_link pull-left" href="https://www.mathworks.com?s_tid=gn_logo"><IMG alt="MathWorks" class="mw_logo" src="/images/responsive/global/pic-header-mathworks-logo.svg"/></A>
    <A href="https://www.mathworks.com/products.html?s_tid=gn_ps">Products</A>
    <A href="https://www.mathworks.com/solutions.html?s_tid=gn_sol">Solutions</A>
    <A href="https://www.mathworks.com/academia.html?s_tid=gn_acad">Academia</A>
    <A href="https://www.mathworks.com/support.html?s_tid=gn_supp">Support</A>
    <A href="https://www.mathworks.com/matlabcentral/?s_tid=gn_mlc">Community</A>
    <A href="https://www.mathworks.com/company/events.html?s_tid=gn_ev">Events</A>

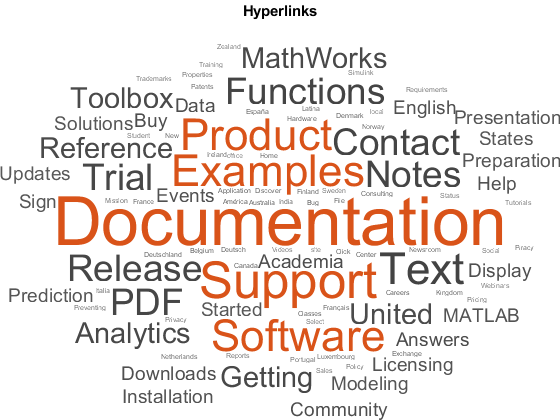

ハイパーリンクのテキストからワード クラウドを作成します。

str = extractHTMLText(subtrees);
figure
wordcloud(str);
title("Hyperlinks")

HTML 属性の取得

HTML ツリーの段落要素からクラス属性を取得します。

subtrees = findElement(tree,'p');
attr = "class";
str = getAttribute(subtrees,attr)
str = 21×1 string array
    <missing>
    <missing>
    "add_margin_5"
    <missing>
    <missing>
    <missing>
    <missing>
    <missing>
    "category_desc"
    "category_desc"
    "category_desc"
    "category_desc"
    <missing>
    <missing>
    <missing>
    "text-center"
    <missing>
    <missing>
    <missing>
    "copyright"
    <missing>

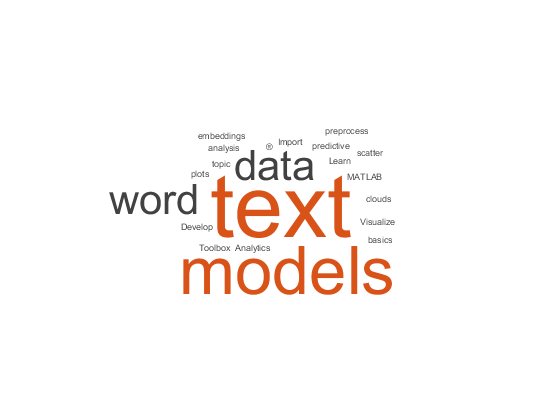

クラス "category_desc" の段落要素に含まれるテキストからワード クラウドを作成します。

subtrees = findElement(tree,'p.category_desc');
str = extractHTMLText(subtrees);
figure
wordcloud(str);
