disconnect

Remove connections between ports in pipeline

Since R2026a

Syntax

newPipeline = disconnect(pipeline,connections)

Description

newPipeline = disconnect(pipeline,connections) removes the connections listed in connections from the pipeline pipeline.

Examples

Disconnect Components

Create a pipeline with two components and display the connections.

featureSelector = featureSelectionClassificationMRMRComponent;
knnClassifier = classificationKNNComponent;
pipeline = series(featureSelector,knnClassifier);
pipeline.Connections

ans =

  7×2 table

                        Source                                     Destination
    ______________________________________________    ______________________________________

    "X"                                               "FeatureSelectionClassificationMRMR/X"
    "Y"                                               "FeatureSelectionClassificationMRMR/Y"
    "FeatureSelectionClassificationMRMR/XSelected"    "ClassificationKNN/Predictors"
    "Y"                                               "ClassificationKNN/Response"
    "ClassificationKNN/Predictions"                   "Predictions"
    "ClassificationKNN/Scores"                        "Scores"
    "ClassificationKNN/Loss"                          "Loss"

The XSelected output of the FeatureSelectionClassificationMRMR component is connected to the Predictors input of the ClassificationKNN component.

Disconnect the two ports. View the pipeline.

newPipeline = disconnect(pipeline, ...
    ["FeatureSelectionClassificationMRMR/XSelected", ...
    "ClassificationKNN/Predictors"]);

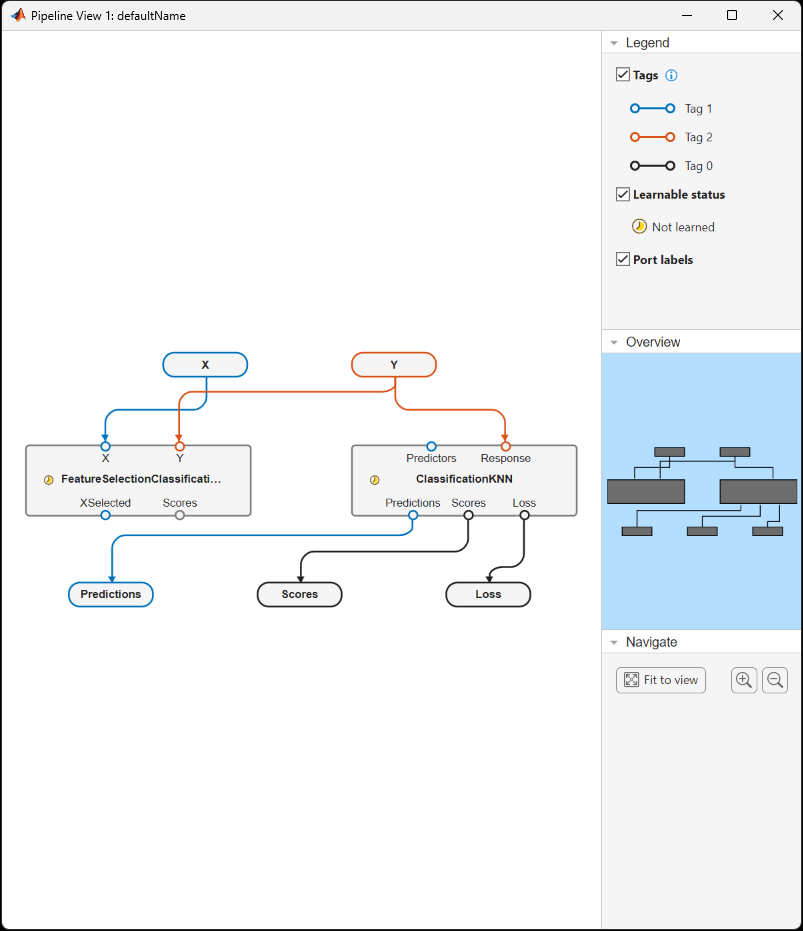

view(newPipeline)

XSelected is disconnected from the Predictors input of the KNN component.

Input Arguments

pipeline — Existing pipeline

LearningPipeline object

Existing pipeline, specified as a LearningPipeline object.

connections — Names of connections to remove

string array | cell array of character vectors | table

Names of the connections to remove, specified as a string array or cell array of character vectors, indicating ordered pairs of sources and destinations, or a table with two columns (Source and Destination). The format of connections must be the same as the format of the Connections property of the pipeline. You can find the name of a component in a pipeline by using the describe object function (for example, describe(pipeline)). describe also displays the component input and output port names.

Data Types: string | cell | table

Output Arguments

newPipeline — Pipeline with connections removed

LearningPipeline object

Pipeline with connections removed, returned as a LearningPipeline object.

More About

Specifying Port Names

You can specify component ports as string scalars or character vectors of the form componentName/portName, where componentName is the name of the component, and portName is the name of the port.

When specifying ports of the existing pipeline (pipeline), specify the port name only.

Version History

Introduced in R2026a
