BLE

R2026a
Bluetooth インターフェイスを使用した通信

Bluetooth® Low Energy (BLE) は、Bluetooth を低電力の Arduino® 周辺デバイスで使用する無線通信プロトコルです。この技術を使用して、BLE 周辺デバイスとの間で読み取りと書き込みを行います。近距離通信の用途に最適で、この技術を使用する他の BLE 対応デバイスと効率的に通信できます。

ブロック

Arduino BLE Send iconBLE SendSend data using Bluetooth Low Energy (BLE) protocol
Arduino BLE Receive iconBLE ReceiveReceive data using Bluetooth Low Energy (BLE) protocol

モデル設定

すべて展開する

Peripheral Device NameDevice name of a BLE peripheral
Peripheral Local NameLocal name of a BLE peripheral device
Advertising Interval (*0.625 mS)BLE advertising interval
Min Connection Interval (*1.25 mS)Minimum time that peripheral device can take to establish BLE connection with central device
Max Connection Interval (*1.25 mS)Maximum time that peripheral device can take to establish BLE connection with central device

注目の例

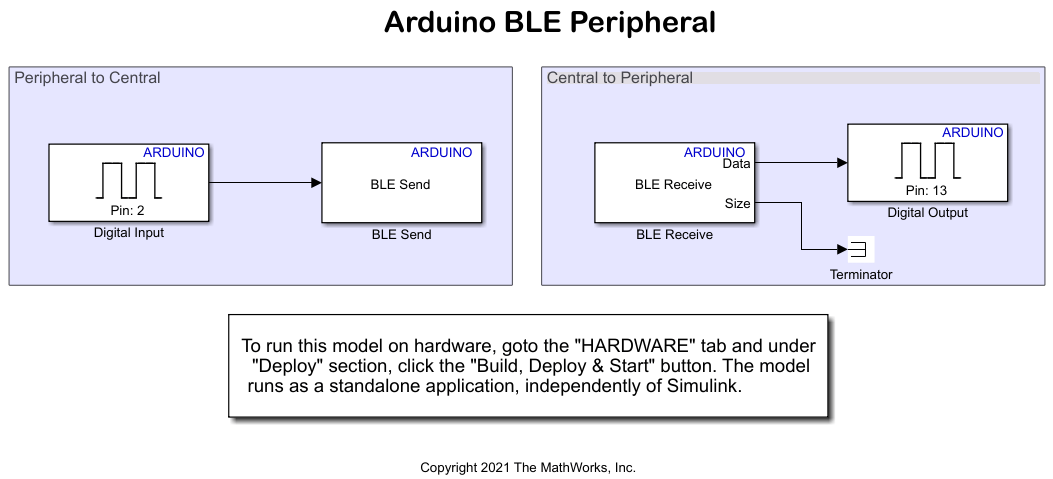

Control LED Status Using BLE Peripheral and Central Devices on Arduino Boards

Control LED Status Using BLE Peripheral and Central Devices on Arduino Boards

Use the Simulink® Support Package for Arduino® Hardware to configure Bluetooth® Low Energy (BLE) communication between Arduino peripheral and central devices. It also shows how to control the status of an onboard LED on a peripheral device from the central device and vice versa using BLE communication.
