plotResiduals

Plot residuals for each response, using time, group, or prediction as x-axis

collapse all in page

Syntax

plotResiduals(resultsObj,type)

Description

plotResiduals(resultsObj,type) plots the residuals for each response, using the time, group, or model predictions as the x-axis as specified by the argument type.

example

Examples

collapse all

Open Live Script

Load the sample data set.

load data10_32R.mat
gData = groupedData(data);
gData.Properties.VariableUnits = ["","hour","milligram/liter","milligram/liter"];

Create a two-compartment PK model.

pkmd                 = PKModelDesign;
pkc1                 = addCompartment(pkmd,"Central");
pkc1.DosingType      = "Infusion";
pkc1.EliminationType = "linear-clearance";
pkc1.HasResponseVariable = true;
pkc2                 = addCompartment(pkmd,"Peripheral");
model                = construct(pkmd);
configset            = getconfigset(model);
configset.CompileOptions.UnitConversion = true;
responseMap = ["Drug_Central = CentralConc","Drug_Peripheral = PeripheralConc"];

Provide model parameters to estimate.

paramsToEstimate   = ["log(Central)","log(Peripheral)","Q12","Cl_Central"];
estimatedParam     = estimatedInfo(paramsToEstimate,'InitialValue',[1 1 1 1]);

Assume every individual receives an infusion dose at time = 0, with a total infusion amount of 100 mg at a rate of 50 mg/hour.

dose             = sbiodose("dose","TargetName","Drug_Central");
dose.StartTime   = 0;
dose.Amount      = 100;
dose.Rate        = 50;
dose.AmountUnits = "milligram";
dose.TimeUnits   = "hour";
dose.RateUnits   = "milligram/hour";

Estimate model parameters. By default, the function estimates a set of parameter for each individual (unpooled fit).

fitResults =  sbiofit(model,gData,responseMap,estimatedParam,dose);

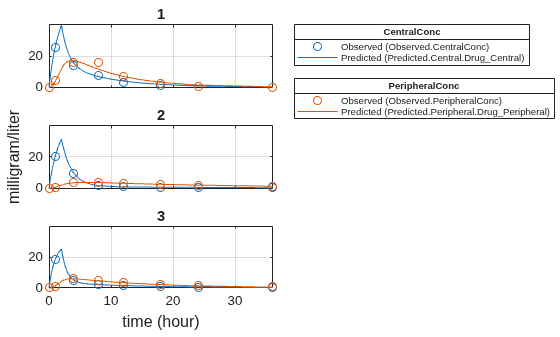

Plot the results.

plot(fitResults);

Figure contains 5 axes objects. Axes object 1 with title 3 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 2 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 1 contains 4 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 4 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 5 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc).

Plot all groups in one plot.

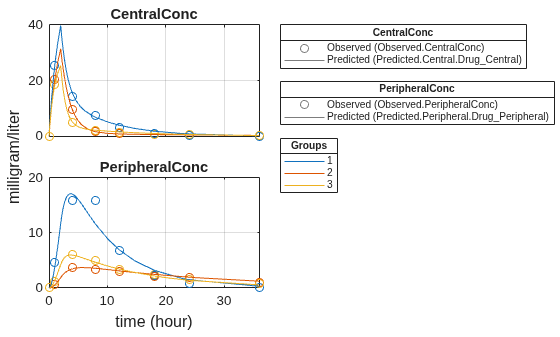

plot(fitResults,"PlotStyle","one axes");

Figure contains 5 axes objects. Axes object 1 with title PeripheralConc contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title CentralConc contains 6 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 3 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 4 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc). Hidden axes object 5 contains 3 objects of type line. These objects represent 3, 2, 1.

Change some axes properties.

s = struct;
s.Properties.XGrid = "on";
s.Properties.YGrid = "on";
plot(fitResults,"PlotStyle","one axes","AxesStyle",s);

Figure contains 5 axes objects. Axes object 1 with title PeripheralConc contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title CentralConc contains 6 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 3 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 4 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc). Hidden axes object 5 contains 3 objects of type line. These objects represent 3, 2, 1.

Compare the model predictions to the actual data.

plotActualVersusPredicted(fitResults);

Figure contains 2 axes objects. Axes object 1 with title PeripheralConc contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title CentralConc contains 2 objects of type line. One or more of the lines displays its values using only markers

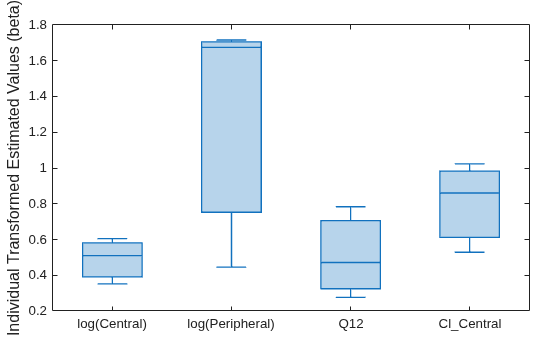

Use boxplot to show the variation of estimated model parameters.

plotParameterStats(fitResults,"box");

Figure contains an axes object. The axes object contains an object of type boxchart.

Plot the distribution of residuals. This normal probability plot shows the deviation from normality and the skewness on the right tail of the distribution of residuals. The default (constant) error model might not be the correct assumption for the data being fitted.

plotResidualDistribution(fitResults);

Figure contains 4 axes objects. Axes object 1 contains 2 objects of type bar, line. Axes object 2 with title PeripheralConc contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 3 contains 2 objects of type bar, line. Axes object 4 with title CentralConc contains 3 objects of type line. One or more of the lines displays its values using only markers

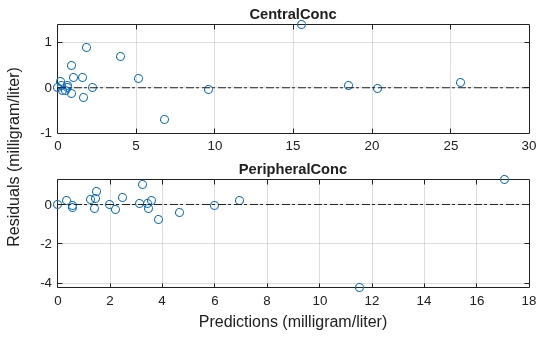

Plot residuals for each response using the model predictions on x-axis.

plotResiduals(fitResults,"Predictions");

Figure contains 2 axes objects. Axes object 1 with title PeripheralConc contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title CentralConc contains 2 objects of type line. One or more of the lines displays its values using only markers

Get the summary of the fit results. stats.Name contains the name for each table from stats.Table, which contains a list of tables with estimated parameter values and fit quality statistics.

fitMetrics = summary(fitResults);

Display the table that contains parameter estimates summary statistics.

tableToShow = "Parameter Estimates Summary Statistics";
tableNames = {fitMetrics.Name};
tfShowTable = matches(tableNames,tableToShow);
disp(fitMetrics(tfShowTable).Table);
          Statistic           Central    Peripheral     Q12      Cl_Central
    ______________________    _______    __________    ______    __________

    {'Minimum'           }     1.422       0.5291      1.5619      0.2764
    {'Lower Quartile'    }     1.483      0.61191      2.5055     0.32521
    {'Median'            }    1.6657      0.86035      5.3364     0.47163
    {'Upper Quartile'    }    1.7906      0.98252      5.5065     0.70562
    {'Maximum'           }    1.8322       1.0233      5.5632     0.78361
    {'Mean'              }      1.64      0.80423      4.1539     0.51055
    {'Standard Deviation'}    0.2063      0.25181      2.2476     0.25583

Input Arguments

collapse all

Estimation results, specified as an OptimResults object, NLINResults object, or a vector of results object which contains estimation results returned by sbiofit.

X-axis option for the residual plot, specified as a character vector or string that must be one of the following: 'Time', 'Group', or 'Predictions'.

Version History

Introduced in R2014a
