Eliminate Outliers Using Hampel Identifier

This example shows a naive implementation of the procedure used by hampel to detect and remove outliers. The actual function is much faster.

Generate a random signal, x, containing 24 samples. Reset the random number generator for reproducible results.

rng default

lx = 24;
x = randn(1,lx);

Generate an observation window around each element of x. Take k = 2 neighbors at either side of the sample. The moving window that results has a length of 2×2+1=5 samples.

k = 2;

iLo = (1:lx)-k;
iHi = (1:lx)+k;

Truncate the window so that the function computes medians of smaller segments as it reaches the signal edges.

iLo(iLo<1) = 1;
iHi(iHi>lx) = lx;

Record the median of each surrounding window. Find the median of the absolute deviation of each element with respect to the window median.

for j = 1:lx
    w = x(iLo(j):iHi(j));
    medj = median(w);
    mmed(j) = medj;
    mmad(j) = median(abs(w-medj));
end

Scale the median absolute deviation with

12erf-1(1/2)1.4826

to obtain an estimate of the standard deviation of a normal distribution.

sd = mmad/(erfinv(1/2)*sqrt(2));

Find the samples that differ from the median by more than nd = 2 standard deviations. Replace each of those outliers by the value of the median of its surrounding window. This is the essence of the Hampel algorithm.

nd = 2;
ki = abs(x-mmed) > nd*sd;

yu = x;
yu(ki) = mmed(ki);

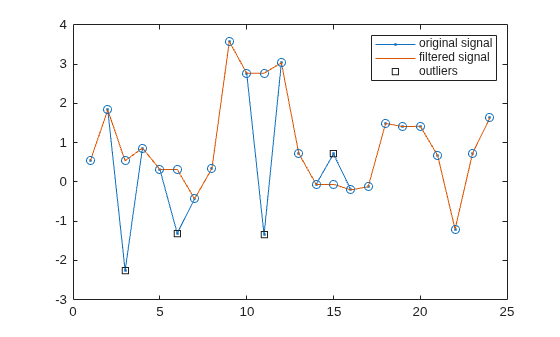

Use the hampel function to compute the filtered signal and annotate the outliers. Overlay the filtered values computed in this example.

hampel(x,k,nd)

hold on
plot(yu,'o','HandleVisibility','off')
hold off
