マルチチャネル入力における相互相関

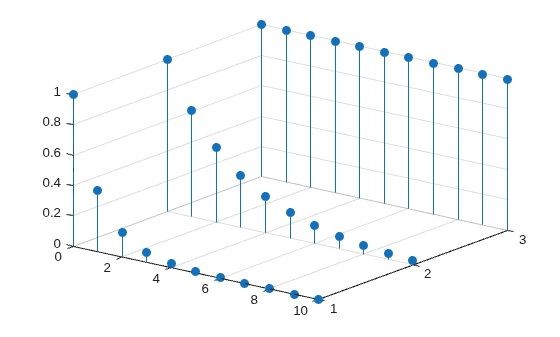

、、および () で得られる 11 サンプルの指数シーケンスを 3 つ作成します。stem3
を使用してシーケンスを並べてプロットします。
N = 11;
n = (0:N-1)';
a = 0.4;
b = 0.7;
c = 0.999;
xabc = [a.^n b.^n c.^n];
stem3(n,1:3,xabc','filled')
ax = gca;
ax.YTick = 1:3;
view(37.5,30)

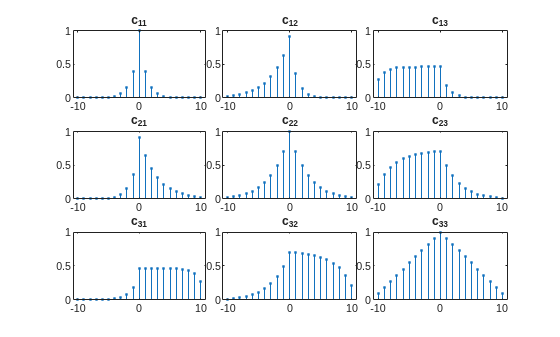

シーケンスの自己相関と相互相関を計算します。継続して追跡する必要がないようにラグを出力します。ゼロ ラグで自己相関が単位値をもつように結果を正規化します。
[cr,lgs] = xcorr(xabc,'coeff'); for row = 1:3 for col = 1:3 nm = 3*(row-1)+col; subplot(3,3,nm) stem(lgs,cr(:,nm),'.') title(sprintf('c_{%d%d}',row,col)) ylim([0 1]) end end

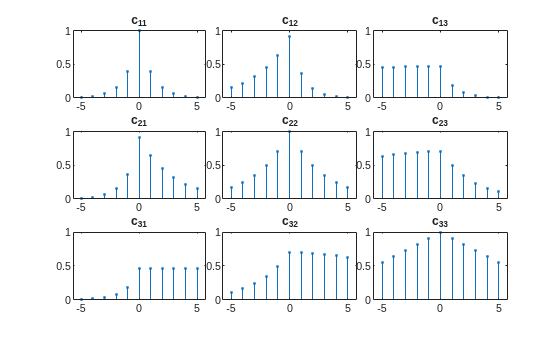

ラグの計算範囲を ~ に制限します。
[cr,lgs] = xcorr(xabc,5,'coeff'); for row = 1:3 for col = 1:3 nm = 3*(row-1)+col; subplot(3,3,nm) stem(lgs,cr(:,nm),'.') title(sprintf('c_{%d%d}',row,col)) ylim([0 1]) end end

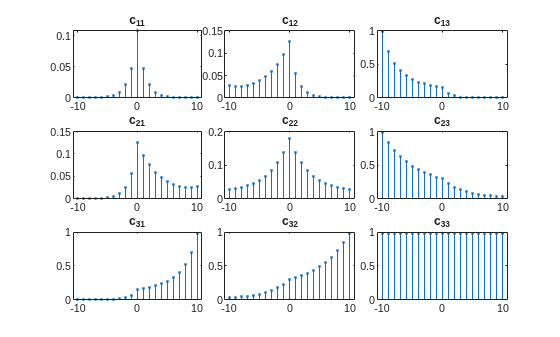

自己相関と相互相関の不偏推定を計算します。既定では、ラグは ~ の間で実行されます。
cu = xcorr(xabc,'unbiased'); for row = 1:3 for col = 1:3 nm = 3*(row-1)+col; subplot(3,3,nm) stem(-(N-1):(N-1),cu(:,nm),'.') title(sprintf('c_{%d%d}',row,col)) end end
