Robust Controller for Spinning Satellite

This example expands on the MIMO Stability Margins for Spinning Satellite example by designing a robust controller that overcomes the flaws of the "naive" design.

Plant model

The plant model is the same as described in MIMO Stability Margins for Spinning Satellite.

a = 10;
A = [0 a;-a 0];
B = eye(2);
C = [1 a;-a 1];
D = 0;
Gnom = ss(A,B,C,D);

Nominal Mixed-Sensitivity Design

Start with a basic mixed-sensitivity design using mixsyn. Pick the weights to achieve good performance while limiting bandwidth and control effort. (See Mixed-Sensitivity Loop Shaping for details about this technique and how to choose weighting functions.)

wS = makeweight(1e3,1,1e-1);
wKS = makeweight(0.5,[500 1e2],1e4,0,2);
wT = makeweight(0.5,20,100);

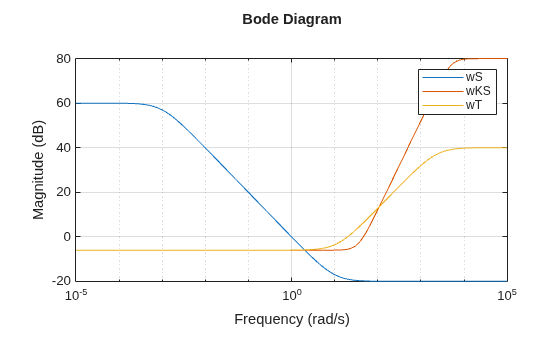

bodemag(wS,wKS,wT), grid

Compute the optimal MIMO controller K1 with mixsyn.

[K1,~,gam] = mixsyn(Gnom,wS,wKS,wT);
gam = 0.7166

The optimal performance is about 0.7, indicating that mixsyn easily met the bounds on S,KS,T. Close the feedback loop and plot the step response.

T = feedback(Gnom*K1,eye(2));

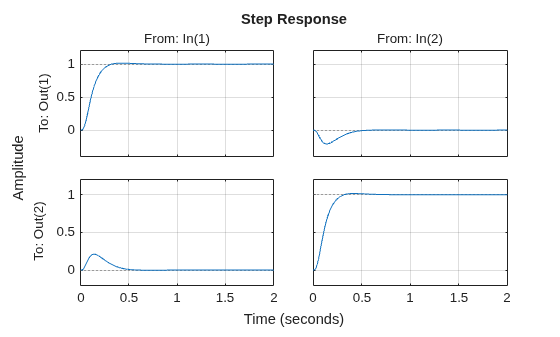

step(T,2), grid

The nominal responses are fast with little overshoot.

Disk Margins

To gauge the robustness of this controller, check the disk margins at the plant inputs and the plant outputs.

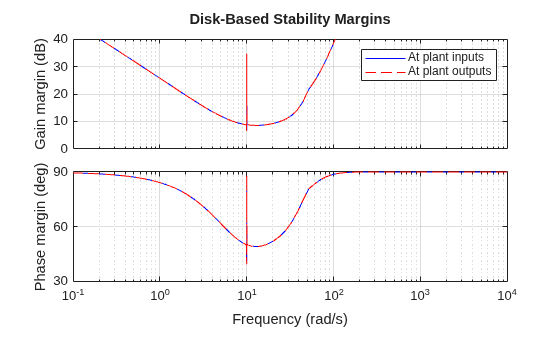

legend('At plant inputs','At plant outputs')

Both are good with near 10 dB gain margin and 50 degrees phase margin. Also check the disk margins when the gain and phase are allowed to vary at both the inputs and outputs of the plant.

MMIO = diskmargin(Gnom,K1)
MMIO = struct with fields:
           GainMargin: [0.9915 1.0085]
          PhaseMargin: [-0.4862 0.4862]
           DiskMargin: 0.0085
           LowerBound: 0.0085
           UpperBound: 0.0085
            Frequency: 9.9988
    WorstPerturbation: [1x1 struct]

The I/O margins are extremely small. This first design also lacks robustness. You can confirm the poor robustness by injecting the smallest destabilizing perturbations returned by diskmargin at the plant inputs and outputs. (See diskmargin for further details about the WorstPerturbation field of its output structures.)

WP = MMIO.WorstPerturbation;

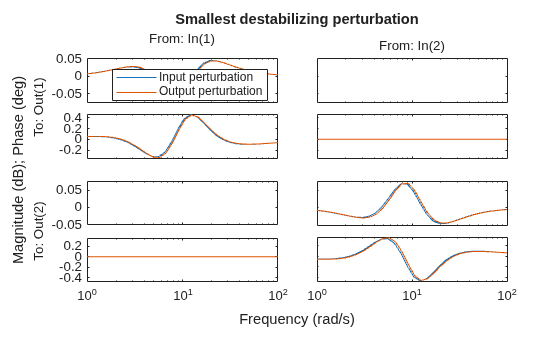

title('Smallest destabilizing perturbation')
legend('Input perturbation','Output perturbation')

Tpert = feedback(WP.Output*Gnom*WP.Input*K1,eye(2));

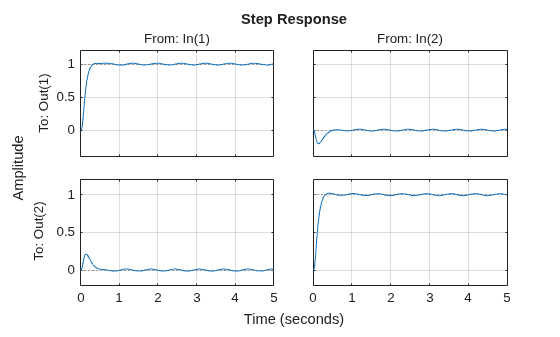

The step response continues to oscillate after the initial transient indicating marginal instability. Verify that the perturbed closed-loop system Tpert has a pole on the imaginary axis at the critical frequency MMIO.Frequency.

[wn,zeta] = damp(Tpert);
[~,idx] = min(zeta);
[zeta(idx) wn(idx) MMIO.Frequency]
ans = 1×3

   -0.0000    9.9988    9.9988

Robust Design

Create an uncertain plant model where the parameter a (spinning frequency) varies in the range [7 13].

a = ureal('a',10,'range',[7 13]);
A = [0 a;-a 0];
B = eye(2);
C = [1 a;-a 1];
D = 0;
Gunc = ss(A,B,C,D);

You can use musyn to design a robust controller for this uncertain plant. To improve robustness, use the umargin element to model gain and phase uncertainty at both inputs and outputs, so that musyn enforces robustness for the modeled range of uncertainty. Suppose that you want at least 2 dB gain margin at each I/O (4 dB total for each channel). If your umargin elements model that full range of variation, musyn might not yield good results, because it attempts to enforce robust performance over the modeled uncertainty as well as robust stability. musyn most likely cannot maintained the desired performance for that much gain variation. Instead, scale back the target to 1 dB gain variation in each I/O.

GM = 1.1; % about 1 dB
u1 = umargin('u1',GM);
u2 = umargin('u2',GM);
y1 = umargin('y1',GM);
y2 = umargin('y2',GM);
InputMargins = append(u1,u2);
OutputMargins = append(y1,y2);
Gunc = OutputMargins*Gunc*InputMargins;

Augment the plant with the mixed-sensitivity weights and use musyn to optimize robust performance for the modeled uncertainty, which includes both the parameter a and the gain and phase variations at plant inputs and outputs.

P = augw(Gunc,wS,wKS,wT);
[K2,gam] = musyn(P,2,2);
                       Robust performance               Fit order
  Iter         K Step       Peak MU       D Fit             D
    1           175.9        2.593        2.606            24
    2            1.21         1.21        1.222            58
    3           1.168        1.168        1.188            54
    4           1.166        1.166        1.176            62
    5           1.167        1.167        1.171            60

Best achieved robust performance: 1.17

The robust performance is close to 1, indicating that the controller is close to robustly meeting the mixed-sensitivity goals. Check the disk margins at the plant I/Os.

MMIO = diskmargin(Gnom,K2)
MMIO = struct with fields:
           GainMargin: [0.6406 1.5611]
          PhaseMargin: [-24.7161 24.7161]
           DiskMargin: 0.4382
           LowerBound: 0.4382
           UpperBound: 0.4460
            Frequency: 2.7987
    WorstPerturbation: [1x1 struct]

The margins are now about 1.6 dB and 25 degrees, much better than before. Compare the step responses with each controller for 25 uncertainty samples.

T1 = feedback(Gunc*K1,eye(2));
T2 = feedback(Gunc*K2,eye(2));
rng(0) % for reproducibility
T1s = usample(T1,25);
T2s = usample(T2,25);
opt = timeoptions;
opt.YLim = {[-1 1.5]};
legend('Nominal design','Robust design','location','southeast')

The second design is a clear improvement. Further compare the sensitivity and complementary sensitivity functions.

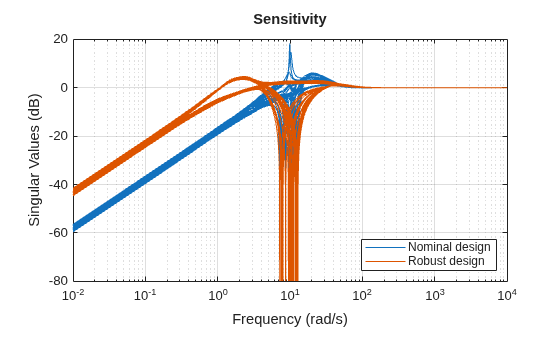

sigma(eye(2)-T1s,eye(2)-T2s), grid
axis([1e-2 1e4 -80 20])
legend('Nominal design','Robust design','location','southeast')

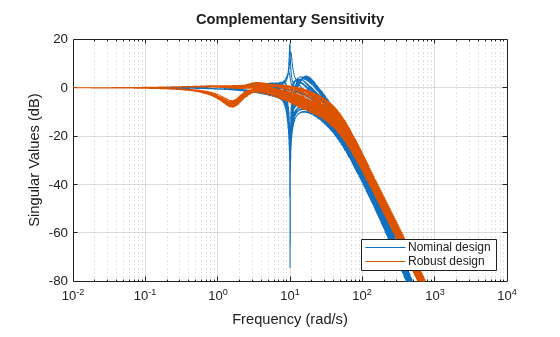

sigma(T1s,T2s), grid
axis([1e-2 1e4 -80 20])
title('Complementary Sensitivity')
legend('Nominal design','Robust design','location','southeast')

This example has shown how to use the umargin uncertain element to improve stability margins as part of a robust controller synthesis.
