chompSolverOptions

Solver options for CHOMP motion planner

Since R2023a

    Description

    The chompSolverOptions object stores Covariant Hamiltonian Optimization for Motion Planning (CHOMP) solver options that you can use to change the behavior of the solver.

    Creation

    Description

    OPTS = chompSolverOptions creates a solver options object OPTS that you can use to set options for a manipulatorCHOMP object to optimize a trajectory.

    example

    OPTS = chompSolverOptions(Name=Value) specifies properties using one or more name-value arguments.

    Properties

    expand all

    Verbosity of the diagnostic output to the command window from the optimize function, specified as one of these options:

    • "none" — Output no information.

    • "concise" — Output the objective function results.

    • "detailed" — Output the smoothness costs, collision costs, and the objective function results.

    Data Types: char | string

    Termination tolerance on the objective function, specified as a nonnegative numeric scalar. The termination tolerance is the absolute relative change of the objective function between consecutive iterations:

    |fi1fifi|,

    where f is the objective function and i is an iteration.

    Maximum time to optimize the trajectory, specified as a nonnegative numeric scalar. Units are in seconds.

    Maximum number of iterations to optimize the trajectory, specified as a nonnegative integer scalar.

    Learning rate at which to update the objective function, specified as a positive numeric scalar. Units are in seconds.

    Examples

    collapse all

    Load a robot model into the workspace, and create a CHOMP solver.

    robot = loadrobot("kinovaGen3",DataFormat="row");
    chomp = manipulatorCHOMP(robot);

    Create spheres to represent obstacles, and add them to the CHOMP solver.

    env = [0.20 0.2 -0.1 -0.1;   % sphere, radius 0.20 at (0.2,-0.1,-0.1)
           0.15 0.2  0.0  0.5]'; % sphere, radius 0.15 at (0.2,0.0,0.5)
    chomp.SphericalObstacles = env;

    To prioritize a collision-free trajectory, set the smoothness cost weight to a lower value than the collision cost weight. Then add the options to the CHOMP solver.

    chomp.SmoothnessOptions = chompSmoothnessOptions(SmoothnessCostWeight=1e-3);
    chomp.CollisionOptions = chompCollisionOptions(CollisionCostWeight=10);
    chomp.SolverOptions = chompSolverOptions(Verbosity="none",LearningRate=7.0);

    Initialize a trajectory, optimize it using the CHOMP solver, and show the waypoints in a figure.

    startconfig = homeConfiguration(robot);
    goalconfig = [0.5 1.75 -2.25 2.0 0.3 -1.65 -0.4];
    timepoints = [0 5];
    timestep = 0.1;
    trajtype = "minjerkpolytraj";
    [wptsamples,tsamples] = optimize(chomp, ...
        [startconfig; goalconfig], ...
        timepoints, ...
        timestep, ...
        InitialTrajectoryFitType=trajtype);

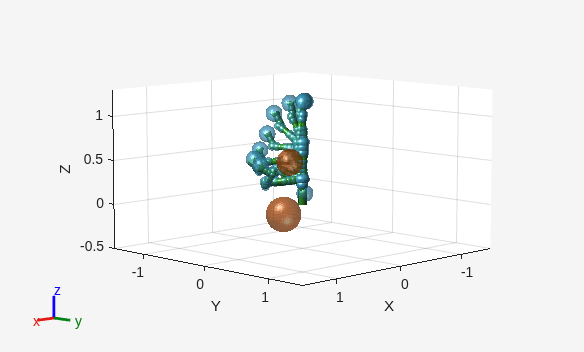

    show(chomp,wptsamples,NumSamples=10);
    zlim([-0.5 1.3])

    References

    [1] Ratliff, Nathan, Siddhartha Srinivasa, Matt Zucker, and Andrew Bagnell. “CHOMP: Gradient Optimization Techniques for Efficient Motion Planning.” In 2009 IEEE International Conference on Robotics and Automation, 489–94. Kobe, Japan: IEEE, 2009. https://doi.org/10.1109/ROBOT.2009.5152817.
