racetrack

Create racetrack shape, of circle or rectangle type, on the X-Y plane

Since R2024a

Description

Use the racetrack object to create a racetrack shape centered at the origin and on the X-Y plane.

Creation

Syntax

racetrackshape = racetrack

racetrackshape = racetrack(Name=Value)

Description

racetrackshape = racetrack creates a racetrack shape on the X-Y plane.

racetrackshape = racetrack(Name=Value) sets Properties using one or more name-value arguments.

Properties

Name — Name of racetrack shape

'myracetrack' (default) | character vector | string scalar

Name of the racetrack shape, specified as a character vector or string scalar.

Example: racetrackshape = racetrack(Name='racetrackshape1')

Data Types: char | string

Type — Type of racetrack shape

'Circle' (default) | 'Rectangle'

Type of racetrack, specified as a 'Circle' or a 'Rectangle'.

Example: racetrackshape = racetrack(Type='Rectangle')

Data Types: char

AnchorPoints — Anchor points for the racetrack shape

AnchorPoints = [1e-3 0; -1e-3 0] (default)

AnchorPoints is a numeric 2-by-2 matrix. Each row defines the X and Y coordinates of the two anchor points in meters.

Example: racetackshape = racetrack(AnchorPoints = [2e-2 3e-2;4e-2 6e-2])

Data Types: double

Length — Length of racetrack shape

5e-3 (default) | positive scalar

Length of the racetrack shape in meters, specified as a positive scalar.

Example: racetrackshape = racetrack(Length=6e-3)

Data Types: double

Width — Width of racetrack shape

1e-3 (default) | positive scalar

Width of the racetrack shape in meters, specified as a positive scalar.

Example: racetrackshape = racetrack(Width=6e-3)

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
mirrorX	Mirror shape along X-axis
mirrorY	Mirror shape along Y-axis
minus	Shape1 - Shape2 for RF PCB shapes
plus	Shape1 + Shape2 for RF PCB shapes
plot	Plot boundary of RF PCB shape
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Racetrack

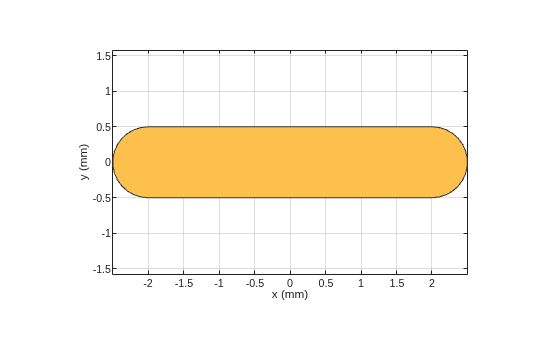

Create a default racetrack shape.

s = racetrack

s =
  racetrack with properties:

            Name: "myracetrack"
    AnchorPoints: [2×2 double]
            Type: "Circle"
          Length: 0.0050
           Width: 1.0000e-03

show(s)

Racetrack with Defined Properties

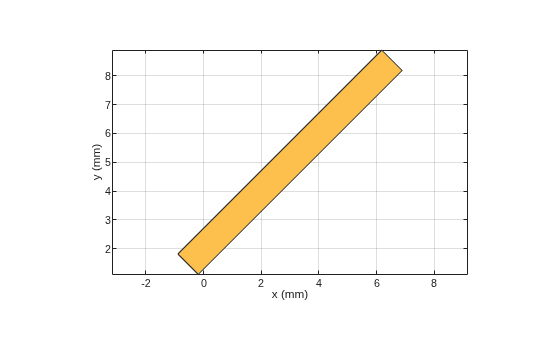

Create a racetrack shape with defined properties

s = racetrack(Type="Rectangle",AnchorPoints=[1e-3, 3e-3;5e-3 7e-3],Length=10e-3)

s =
  racetrack with properties:

            Name: "myracetrack"
    AnchorPoints: [2×2 double]
            Type: "Rectangle"
          Length: 0.0100
           Width: 1.0000e-03

show(s)

Version History

Introduced in R2024a
