minus

Shape1 - Shape2 for RF PCB shapes

Since R2021b

Syntax

c = minus(shape1,shape2)

Description

c = minus(shape1,shape2) calls the syntax shape1 - shape2 to subtract two shapes.

Examples

Boolean Subtraction of Two RF PCB Shapes

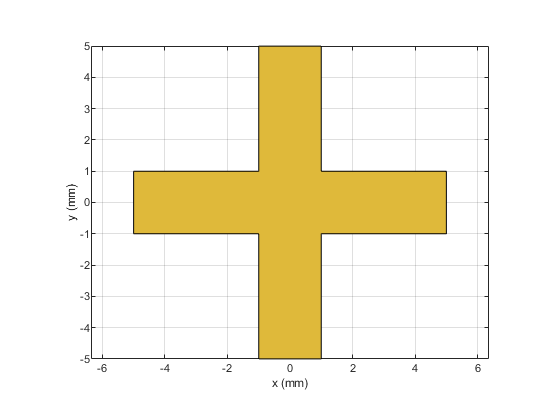

Create and display a cross trace shape.

trace = traceCross;
show(trace)

Create and display an annular ring shape with an inner radius of 4 mm.

ring = ringAnnular(InnerRadius=4e-3);
show(ring)

Subtract the annular ring from the cross trace and display the result.

shapeDiff = minus(trace,ring);
show(shapeDiff)

Subtract Two RF PCB Shapes Using - Operator

Create and display a curved bend shape.

bend1 = bendCurved;
show(bend1)

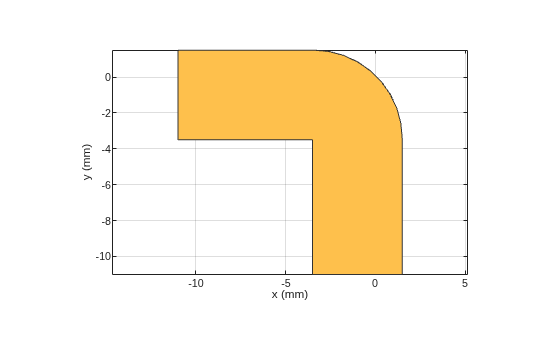

Create and display a curved bend shape with a spatial offset.

bend2 = bendCurved(ReferencePoint=[-1e-3 -1e-3]);
show(bend2)

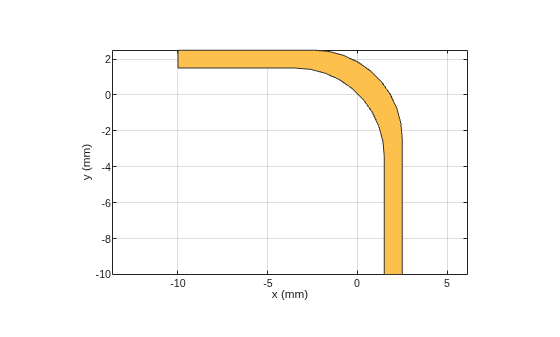

Subtract the offset bend from the default bend and display the result.

shapeDiff = bend1 - bend2;
show(shapeDiff)

Input Arguments

shape1 — First shape

object

First shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.

Example: shape1 = bendCurved; specifies the first shape as a bendCurved object.

shape2 — Second shape

object

Second shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object.

Example: shape2 = ringAnnular; specifies the second shape as a ringAnnular object.

Version History

Introduced in R2021b
