# freqresp

Frequency response of rational object and rationalfit function object

## Description

example

[response, outputfreq] = freqresp(fit,inputfreq) calculates the frequency response, response of the fit of a rationalfit function object or a rational object at the specified input frequencies, inputfreq.

## Examples

collapse all

Create a sparameters object from a file and use rfparam to extract the ${\mathit{S}}_{21}$parameters.

S = sparameters('passive.s2p');
S21 = rfparam(S,2,1);

Fit a rational function to the data by using rationalfit.

freq = S.Frequencies;
fit_data = rationalfit(freq,S21);

Compute the frequency response by using the freqresp method and plot the magnitude and angle of the frequency response.

[resp,freq] = freqresp(fit_data,freq);
plot(freq/1e9,20*log10(abs(resp)))

plot(freq/1e9,unwrap(angle(resp)))

Perform rational fitting on a S-parameters object by using rational object.

S = sparameters('passive.s2p');
fit_data = rational(S);

Compute the frequency response by using the freqresp function.

freq = S.Frequencies;
[resp,freq] = freqresp(fit_data,freq);

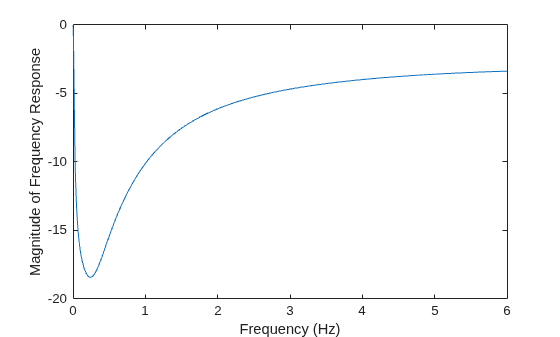

Plot the magnitude of the frequency response of the ${\mathit{S}}_{21}$data.

plot(freq/1e9,20*log10(abs(squeeze(resp(2,1,:)))))
xlabel('Frequency (Hz)');
ylabel('Magnitude of Frequency Response');

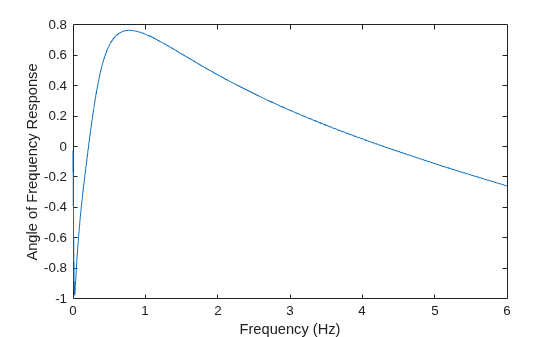

Plot the angle of the frequency response of the ${\mathit{S}}_{21}$data.

plot(freq/1e9,unwrap(angle(squeeze(resp(2,1,:)))))
xlabel('Frequency (Hz)');
ylabel('Angle of Frequency Response');

## Input Arguments

collapse all

N-by-N array, specified as a a rfmodel.rational objects returned by rationalfit or a rational object.

Input frequencies, specified as a vector of positive frequencies in Hz.

Data Types: double

## Output Arguments

collapse all

Frequency response values, returned as a vector.

Frequency values same as input frequencies, returned as a vector.
