Radar Equation

Radar Equation Theory

The point target radar range equation estimates the power at the input to the receiver for a target of a given radar cross section at a specified range. In this equation, the signal model is assumed to be deterministic. The equation for the power at the input to the receiver is:

$P_{r} = \frac{P_{t} G_{t} G_{r} λ^{2} σ}{{(4 π)}^{3} R_{t}^{2} R_{r}^{2} L}$

where the terms in the equation are:

P_r — Received power in watts.
P_t — Peak transmit power in watts.
G_t — Transmitter gain.
G_r — Receiver gain.
λ — Radar operating frequency wavelength in meters.
σ — Target's nonfluctuating radar cross section in square meters.
L — General loss factor to account for both system and propagation loss.
R_t — Range from the transmitter to the target.
R_r — Range from the receiver to the target. If the radar is monostatic, the transmitter and receiver ranges are identical.

The equation for the power at the input to the receiver represents the signal term in the signal-to-noise (SNR) ratio. To model the noise term, assume the thermal noise in the receiver has a white noise power spectral density (PSD) given by:

$P (f) = k T$

where k is the Boltzmann constant and T is the effective noise temperature. The receiver acts as a filter to shape the white noise PSD. Assume that the magnitude squared receiver frequency response approximates a rectangular filter with bandwidth equal to the reciprocal of the pulse duration, 1/τ. The total noise power at the output of the receiver is:

$N = \frac{k T F_{n}}{τ}$

where F_n is the receiver noise figure.

The product of the effective noise temperature and the receiver noise factor is referred to as the system temperature and is denoted by T_s, so that T_s = TF_n .

Using the equation for the received signal power and the output noise power, the receiver output SNR is:

$\frac{P_{r}}{N} = \frac{P_{t} τ G_{t} G_{r} λ^{2} σ}{{(4 π)}^{3} k T_{s} R_{t}^{2} R_{r}^{2} L}$

Solving for the required peak transmit power:

$P_{t} = \frac{P_{r} {(4 π)}^{3} k T_{s} R_{t}^{2} R_{r}^{2} L}{N τ G_{t} G_{r} λ^{2} σ}$

Plot Vertical Coverage Pattern Using Default Parameters

Open Live Script

Set the frequency to 100 MHz, the antenna height to 10 m, and the free-space range to 200 km. The antenna pattern, surface roughness, antenna tilt angle, and field polarization assume their default values as specified in the AntennaPattern, SurfaceRoughness, TiltAngle, and Polarization properties.

Obtain an array of vertical coverage pattern values and angles.

freq = 100e6;
ant_height = 10;
rng_fs = 200;
[vcp,vcpangles] = radarvcd(freq,rng_fs,ant_height);

To see the vertical coverage pattern, omit the output arguments.

radarvcd(freq,rng_fs,ant_height);

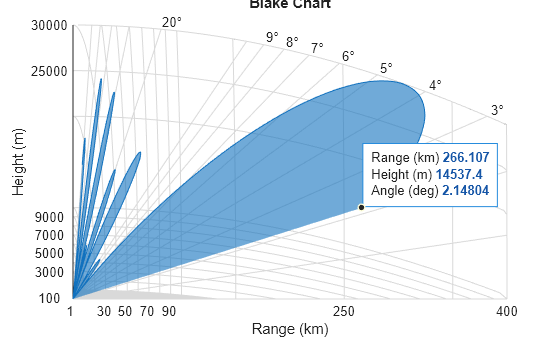

Figure contains an axes object. The axes object with title Blake Chart contains 18 objects of type patch, text, line.

Compute Peak Power Using Radar Equation Calculator App

Open Live Script

The radarEquationCalculator App lets you determine key radar characteristics such as detection range, required peak transmit power, and SNR. The App works for monostatic and bistatic radars.

Open radarEquationCalculator App

When you type radarEquationCalculator from the command line or select the app from the App Toolstrip, an interactive window opens. The default window shows a calculation of target range from SNR, power, and other parameters. You can then select various options to compute different radar parameters.

radarEquationCalculator

{"String":"Figure Radar Equation Calculator contains objects of type uimenu, uipanel.","Tex":[],"LaTex":[]}

Compute Required Peak Transmit Power of Monostatic Radar

As an example, use the app to compute the required peak transmit power for a monostatic radar to detect a large target at 100 km. The radar operates at 10 GHz with a 40 dB antenna gain. Set the probability of detection to 0.9 and the probability of false alarm to 0.0001.

From the Calculation Type drop-down list, choose Peak Transmit Power
Set the Wavelength to 3 cm
Specify the Pulse Width as 2 microseconds
Assume total System Losses of 5 dB
Assuming the target is a large airplane, set Target Radar Cross Section value to 100 m2
Choose Configuration as Monostatic
Set the Gain to be 40 dB
Open the SNR box
Specify the Probability of Detections as 0.9
Specify the Probability of False Alarm as 0.0001

Close the app window. Normally, you close the app using the close button.

hg = findall(0,'Name','Radar Equation Calculator');
close(hg)

You can see from this previously prepared screen shot that the required peak transmit power is .2095 W.

im = imread('radarEquationExample_03.png');
figure('Position',[344 206 849 644])
image(im)
axis off
set(gca,'Position',[0.083 0.083 0.834 0.888])

Figure contains an axes object. The axes object contains an object of type image.
