refinemesh

Refine triangular mesh

    This page describes the legacy workflow. New features might not be compatible with the legacy workflow. For the corresponding step in the recommended workflow, see generateMesh.

    Description

    example

    Note

    This function does not support quadratic 2-D elements.

    [p1,e1,t1] = refinemesh(g,p,e,t) returns a refined version of the triangular mesh given by the mesh data p, e, and t. For details on the mesh data representation, see Mesh Data as [p,e,t] Triples.

    [p1,e1,t1,u1] = refinemesh(g,p,e,t,u) refines the mesh and extends the solution u to the new mesh nodes by linear interpolation. The number of rows in u must correspond to the number of columns in p, and u1 has as many rows as there are points in p1.

    refinemesh interpolates each column of u separately.

    example

    [___] = refinemesh(___,it) uses the input and output arguments from the previous syntaxes and specifies the list it of geometric faces or triangles to refine. A scalar or a row vector specifies faces. A column vector specifies triangles.

    [___] = refinemesh(___,'longest') uses the longest edge refinement, where the longest edge of each triangle is bisected. By default, refinemesh uses the regular refinement, where all triangles are divided into four triangles of the same shape. You also can explicitly specify 'regular' instead of 'longest'. If you use a column vector it to specify the triangles to refine, then refinemesh can refine some triangles outside of the specified set to preserve the triangulation and its quality.

    Examples

    collapse all

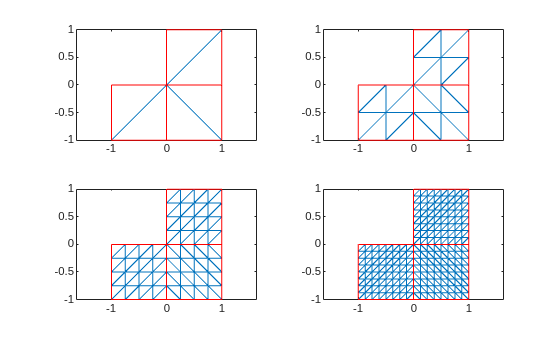

    Refine the mesh of the L-shaped membrane several times. Plot the initial mesh and refined meshes at each step.

    [p,e,t] = initmesh('lshapeg','Hmax',Inf);
    subplot(2,2,1)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t);
    subplot(2,2,2)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t);
    subplot(2,2,3)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t);
    subplot(2,2,4)
    pdemesh(p,e,t)

    Figure contains 4 axes objects. Axes object 1 contains 2 objects of type line. Axes object 2 contains 2 objects of type line. Axes object 3 contains 2 objects of type line. Axes object 4 contains 2 objects of type line.

    Refine the mesh for a particular face of the L-shaped membrane.

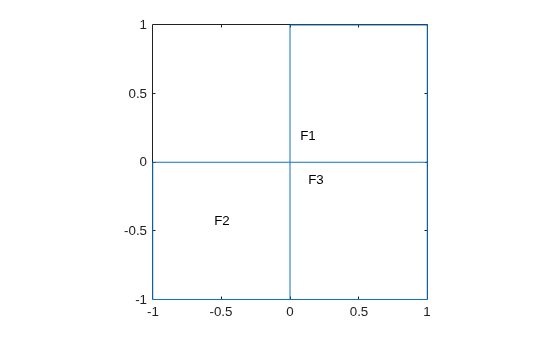

    Plot the L-shaped membrane to identify the face numbers.

    pdegplot('lshapeg','FaceLabels','on')

    Figure contains an axes object. The axes object contains 4 objects of type line, text.

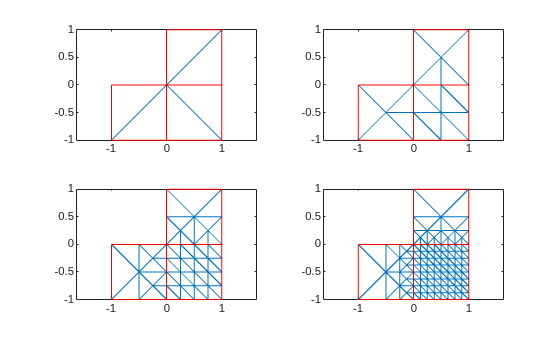

    Create the initial mesh for the entire geometry, then refine the mesh for face 3 several times. Plot the initial mesh and refined meshes at each step.

    [p,e,t] = initmesh('lshapeg','Hmax',Inf);
    subplot(2,2,1)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t,3);
    subplot(2,2,2)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t,3);
    subplot(2,2,3)
    pdemesh(p,e,t)

    [p,e,t] = refinemesh('lshapeg',p,e,t,3);
    subplot(2,2,4)
    pdemesh(p,e,t)

    Figure contains 4 axes objects. Axes object 1 contains 2 objects of type line. Axes object 2 contains 2 objects of type line. Axes object 3 contains 2 objects of type line. Axes object 4 contains 2 objects of type line.

    Input Arguments

    collapse all

    Geometry description, specified as a decomposed geometry matrix, a geometry function, or a handle to the geometry function. For details about a decomposed geometry matrix, see decsg. For details about a geometry function, see Parametrized Function for 2-D Geometry Creation.

    A geometry function must return the same result for the same input arguments in every function call. Thus, it must not contain functions and expressions designed to return a variety of results, such as random number generators.

    Data Types: double | char | string | function_handle

    Mesh points, specified as a 2-by-Np matrix. Np is the number of points (nodes) in the mesh. Column k of p consists of the x-coordinate of point k in p(1,k) and the y-coordinate of point k in p(2,k). For details, see Mesh Data as [p,e,t] Triples.

    Mesh edges, specified as a 7-by-Ne matrix, where Ne is the number of edges in the mesh. An edge is a pair of points in p containing a boundary between subdomains, or containing an outer boundary. For details, see Mesh Data as [p,e,t] Triples.

    Mesh elements, specified as a 4-by-Nt matrix. Nt is the number of triangles in the mesh.

    The t(i,k), with i ranging from 1 through end - 1, contain indices to the corner points of element k. For details, see Mesh Data as [p,e,t] Triples. The last row, t(end,k), contains the subdomain number of the element.

    PDE solution, specified as a vector.

    • If the PDE is scalar, meaning that it has only one equation, then u is a column vector representing the solution u at each node in the mesh.

    • If the PDE is a system of N > 1 equations, then u is a column vector with N*Np elements, where Np is the number of nodes in the mesh. The first Np elements of u represent the solution of equation 1, the next Np elements represent the solution of equation 2, and so on.

    Faces or triangles to refine, specified as a positive number or a row or column vector of positive numbers. A scalar or a row vector specifies faces. A column vector specifies triangles.

    Output Arguments

    collapse all

    Refined mesh points, returned as a 2-by-Np matrix. Np is the number of points (nodes) in the mesh. Column k of p consists of the x-coordinate of point k in p(1,k) and the y-coordinate of point k in p(2,k). For details, see Mesh Data as [p,e,t] Triples.

    Refined mesh edges, returned as a 7-by-Ne matrix, where Ne is the number of edges in the mesh. An edge is a pair of points in p containing a boundary between subdomains, or containing an outer boundary. For details, see Mesh Data as [p,e,t] Triples.

    Refined mesh elements, returned as a 4-by-Nt matrix. Nt is the number of triangles in the mesh.

    The t(i,k), with i ranging from 1 through end-1, contain indices to the corner points of element k. For details, see Mesh Data as [p,e,t] Triples. The last row, t(end,k), contains the subdomain number of the element.

    PDE solution, returned as a vector.

    • If the PDE is scalar, meaning that it has only one equation, then u1 is a column vector representing the solution u1 at each node in the mesh.

    • If the PDE is a system of N > 1 equations, then u1 is a column vector with N*Np elements, where Np is the number of nodes in the mesh. The first Np elements of u1 represent the solution of equation 1, the next Np elements represent the solution of equation 2, and so on.

    Algorithms

    The refinement algorithm follows these steps:

    1. Pick the initial set of triangles to refine.

    2. Divide all edges of the selected triangles in half (regular refinement) or divide the longest edge in half (longest edge refinement).

    3. Divide the longest edge of any triangle that has a divided edge.

    4. Repeat step 3 until no more edges are divided.

    5. Introduce new points of all divided edges, and replace all divided entries in e by two new entries.

    6. Form the new triangles. If all three sides are divided, new triangles are formed by joining the side midpoints. If two sides are divided, the midpoint of the longest edge is joined with the opposing corner and with the other midpoint. If only the longest edge is divided, its midpoint is joined with the opposing corner.

    Introduced before R2006a
