regions
polyshape
の領域にアクセス
説明
例
多角形領域の配列
2 つの固体領域がある多角形を計算します。次に、各要素が多角形の各領域であるベクトルを作成します。
P = [0 0; 0 2; 2 2; 2 0; NaN NaN; 0.5 0.5; 0.5 1.5; 1.5 1.5; 1.5 0.5; NaN NaN; 3 0.5; 3.5 1.5; 4 0.5; NaN NaN; 3.25 0.6; 3.75 0.6; 3.5 1]; polyin = polyshape(P); plot(polyin) xlim([-0.5 4.5]) ylim([-0.5 2.5])
polyout = regions(polyin)
polyout = 2x1 polyshape array with properties: Vertices NumRegions NumHoles

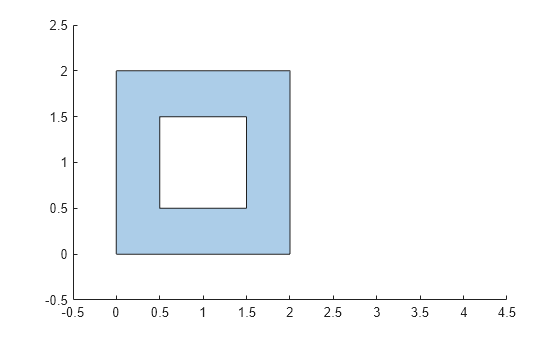

plot(polyout(1)) xlim([-0.5 4.5]) ylim([-0.5 2.5])

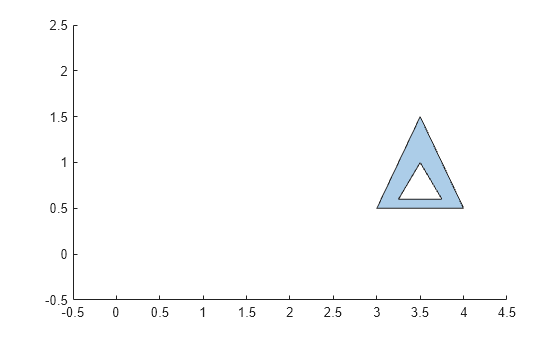

plot(polyout(2)) xlim([-0.5 4.5]) ylim([-0.5 2.5])
入力引数
polyin
— 入力 polyshape
スカラー
入力 polyshape
。スカラーとして指定します。
データ型: polyshape
バージョン履歴
R2017b で導入
参考
boundary
| sortregions
| polyshape
| holes
