wmsupdate
Synchronize WMSLayer object with server
Syntax
Description
updatedLayers
= wmsupdate(layers)WMSLayer objects in
layers with values from their associated WMS server and returns the
updated layers in updatedLayers. The function removes layers that are
not available on the server. This syntax requires all specified layers to be associated with
the same WMS server.
The wmsupdate function requires an internet connection. WMS servers
can periodically be unavailable. Synchronizing layers with a server can take several
minutes.
[
additionally returns a logical array whose elements are updatedLayers,index]
= wmsupdate(layers)1
(true) when the corresponding layer in layers is
available on the server. This syntax requires all specified layers to be associated with the
same WMS server.
[___] = wmsupdate(
specifies options for synchronizing layers with their WMS server. For example,
layers,Name,Value)"AllowMultipleServers",true enables the function to synchronize layers
that are associated with different WMS servers.
Examples
Search the WMS Database for specific layers from the NASA Goddard Space Flight Center DAAC servers. Then, synchronize the properties of the layers with values from the servers. Enable the function to synchronize layers that are associated with different servers.
layers = wmsfind("disc1.gsfc.nasa.gov",SearchField="serverurl"); updatedLayers = wmsupdate(layers,AllowMultipleServers=true);
When you synchronize WMS layers with their associated WMS server, the function populates the Abstract, CoordRefSysCodes, and Details properties of the WMSLayer objects. You can use the additional information to refine your search.
Find all layers in the WMS Database with the title "Global Sea Surface Temperature". Determine the number of unique servers by using the servers function.
layers = wmsfind("Global Sea Surface Temperature",SearchField="LayerTitle"); servers(layers)
ans = 1×1 cell array
{'https://svs.gsfc.nasa.gov/cgi-bin/wms?'}
Synchronize the layers with the server. View the abstract, coordinate reference system code, and details of the first layer.
updatedLayers = wmsupdate(layers); updatedLayers(1).Abstract
ans =
'The temperature of the surface of the world's oceans provides a clear indication of the state of the Earth's climate and weather. The AMSR-E instrument on the Aqua satellite measures the temperature of the top 1 millimeter of the ocean every day, even through the clouds. In this visualization sequence covering the period from June, 2002, to September, 2003, the most obvious effects are the north-south movement of warm regions across the equator due to the seasonal movement of the sun and the seasonal advance and retreat of the sea ice near the North and South poles. It is also possible to see the Gulf Stream, the warm river of water that parallels the east coast of the United States before heading towards northern Europe, in this data. Around January 1, 2003, a cooler than normal region of the ocean appears just to the west of Peru as part of a La Nina and flows westward, driven by the trade winds. The waves that appear on the edges of this cooler area are called tropical instability waves and can also be seen in the equatorial Atlantic Ocean about the same time.
Additional Credit:
B>Please give credit for this item to:</b><br />'
updatedLayers(1).CoordRefSysCodes
ans = 1×1 cell array
{'CRS:84'}
updatedLayers(1).Details
ans = struct with fields:
MetadataURL: 'http://svs.gsfc.nasa.gov/vis/a000000/a002900/a002905/a002905.fgdc'
Attributes: [1×1 struct]
BoundingBox: [1×1 struct]
Dimension: [1×1 struct]
ImageFormats: {'image/png'}
ScaleLimits: [1×1 struct]
Style: [1×2 struct]
Version: '1.3.0'
Refine the search to include only layers with abstracts that contain "El Nino".
el_nino = refine(layers,"El Nino",SearchFields="abstract");
Search the WMS Database for layers from the NASA Goddard Space Flight Center SVS Image Server. Synchronize the properties of the layers with values from the server. Then, refine the search to find layers containing the term "blue marble".
layers = wmsfind("svs.gsfc.nasa.gov",SearchField="serverurl"); updatedLayers = wmsupdate(layers); blueMarble = refine(updatedLayers,"blue marble",SearchField="abstract");
Refine the search again to find the first layer with a title containing the term "512".
blueMarble512 = refine(blueMarble,"*512");

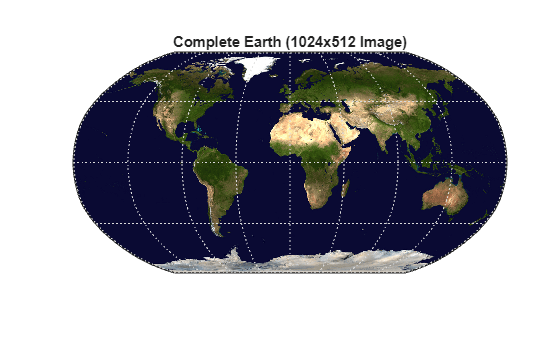

blueMarble512 = blueMarble512(1);Display the layer on a world map. Remove the parallel and meridian labels.
[A,R] = wmsread(blueMarble512); worldmap world geoshow(A,R) title(blueMarble512.LayerTitle) plabel off mlabel off
Synchronizing layers from multiple servers can take a long time. You can avoid synchronizing layers multiple times by saving updated layers to a MAT file.
Search the WMS Database for server URLs that contain "noaa". Refine the search to include only layers with information about oceans.
layers = wmsfind("noaa",SearchFields="ServerURL"); layers = refine(layers,"ocean");
Synchronize the layers. The code might take several minutes to run because it is synchronizing layers that are associated with multiple servers.
updatedLayers = wmsupdate(layers,AllowMultipleServers=true);
Save the layers to a MAT file called oceanLayers.
save("oceanLayers","updatedLayers")
Loading the MAT file enables you to refine your search and read a map without updating the layers again.
Note that servers change, so the layers contained in the MAT file might become out-of-date.
Input Arguments
Name-Value Arguments
Output Arguments
Version History
Introduced in R2009b
