pcolorm

Project geolocated data grid in h = 0 plane on axesm-based map

Syntax

pcolorm(lat,lon,Z)

pcolorm(latlim,lonlim,Z)

pcolorm(___,Name=Value)

s = pcolorm(___)

Description

pcolorm(lat,lon,Z) displays a surface on the current axesm-based map by warping the geolocated data grid Z, with geographic coordinates lat and lon, to a projected graticule mesh. The color of the surface varies according to the values in Z. This function displays the surface in a horizontal plane with all height values set to 0.

pcolorm(latlim,lonlim,Z) creates a graticule mesh using the latitude limits latlim and the longitude limits lonlim.

pcolorm(___,Name=Value) specifies surface properties using one or more name-value arguments. For example, FaceAlpha=0.5 creates a semitransparent plot.

s = pcolorm(___) returns the primitive surface object. Use s to modify the plot after creation. For a list of properties, see Surface Properties.

Examples

Display Data Grid on axesm-Based Map

Load elevation data and a geographic cells reference object for the world. Extract the latitude and longitude coordinates from the reference object.

load topo60c
[lat,lon] = geographicGrid(topo60cR);

Display the data on a world map using a colormap appropriate for elevation data.

worldmap(topo60c,topo60cR)
pcolorm(lat,lon,topo60c)
demcmap(topo60c)

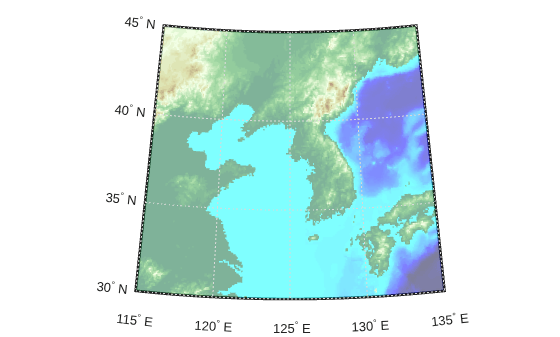

Modify Appearance of Surface Plot

Load elevation data and a geographic cells reference object for the Korean peninsula. Extract the latitudes and longitudes from the reference object.

load korea5c
[lat,lon] = geographicGrid(korea5cR);

Display the data on a world map. Adjust the transparency of the surface plot using the FaceAlpha name-value argument.

worldmap(korea5c,korea5cR)
pcolorm(lat,lon,korea5c,FaceAlpha=0.5)

Apply a colormap appropriate for elevation data.

demcmap(korea5c)

Input Arguments

lat — Latitude coordinates

vector | matrix

Latitude coordinates, specified as a vector or a matrix. The sizes of lat and lon must match.

• When lat and lon are matrices of the same size as Z, the pcolorm function displays each element of Z at the location specified by the corresponding elements of lat and lon.

• When lat and lon are matrices of a different size than Z, the pcolorm function creates a graticule mesh of the same size as lat.

• When lat and lon are vectors, the pcolorm function creates a graticule mesh of size length(lat)-by-length(lon) by replicating lat and lon.

Data Types: double

lon — Longitude coordinates

vector | matrix

Longitude coordinates, specified as a vector or a matrix. The sizes of lon and lat must match.

• When lat and lon are matrices of the same size as Z, the pcolorm function displays each element of Z at the location specified by the corresponding elements of lat and lon.

• When lat and lon are matrices of a different size than Z, the pcolorm function creates a graticule mesh of the same size as lat.

• When lat and lon are vectors, the pcolorm function creates a graticule mesh of size length(lat)-by-length(lon) by replicating lat and lon.

Data Types: double

Z — Geolocated data grid

m-by-n array

Geolocated data grid, specified as an m-by-n array.

latlim — Latitude limits for Z

two-element vector

Latitude limits for Z, specified as a two-element vector.

The pcolorm function uses latlim and lonlim to create a graticule mesh of size 50-by-100.

Data Types: double

lonlim — Longitude limits for Z

two-element vector

Latitude limits for Z, specified as a two-element vector.

The pcolorm function uses latlim and lonlim to create a graticule mesh of size 50-by-100.

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: pcolorm(lat,lon,Z,LineStyle="-") displays the graticule mesh using a solid line.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: pcolorm(lat,lon,Z,"LineStyle","-") displays the graticule mesh using a solid line.

Note

Use name-value arguments to specify values for the properties of the Surface object created by this function. The properties listed here are only a subset. For a full list, see Surface Properties.

Surface objects created by the pcolorm function have these limitations:

• Setting the XData, YData, and ZData properties of the surface object is not supported.

• If you set the UserData property of the surface and then change the projection of the axesm-based map, MATLAB^® does not reproject the surface.

LineStyle — Line style

"none" (default) | "-" | "--" | ":" | "-."

Line style, specified as one of the options listed in this table.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line
"none"	No line	No line

LineWidth — Line width

0.5 (default) | positive value

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

Output Arguments

s — Primitive surface object

Surface object

Primitive surface object, returned as a Surface object. Use s to modify the Surface object after creation. For a list of properties, see Surface Properties.

Surface objects created by the pcolorm function have these limitations:

• Setting the XData, YData, and ZData properties of the surface object is not supported.

• If you set the UserData property of the surface and then change the projection of the axesm-based map, MATLAB does not reproject the surface.

Tips

• The FaceColor property of the surface object depends on the size of the graticule mesh. The pcolorm function sets FaceColor to "flat" when the size of the graticule mesh matches the size of Z, and "texturemap" otherwise.

• The pcolorm function projects the graticule mesh using the projection specified by the MapProjection property of the axesm-based map. To improve the resolution of the plot, increase the size of the graticule mesh. Increasing the size of the graticule mesh can increase the amount of time MATLAB requires to display the surface.

Version History

Introduced before R2006a
