Y-Junction (IL)

Y-junction in an isothermal liquid system

Since R2023a

•

Libraries:
Simscape / Fluids / Isothermal Liquid / Pipes & Fittings

Description

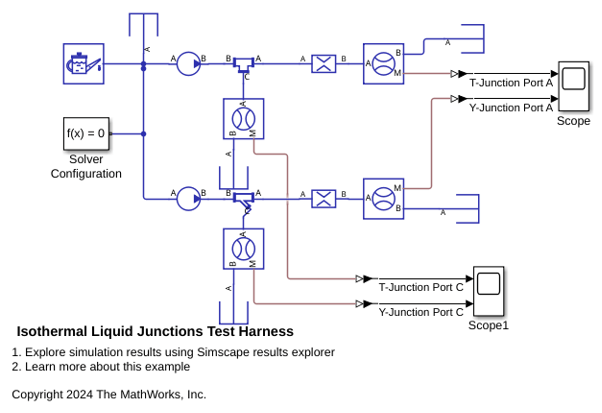

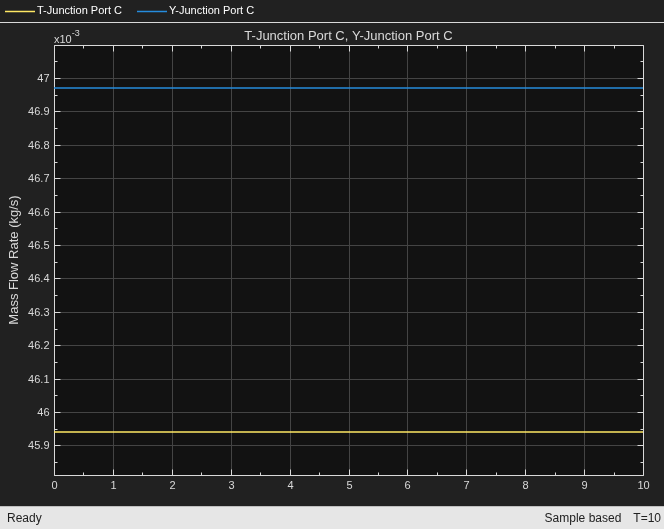

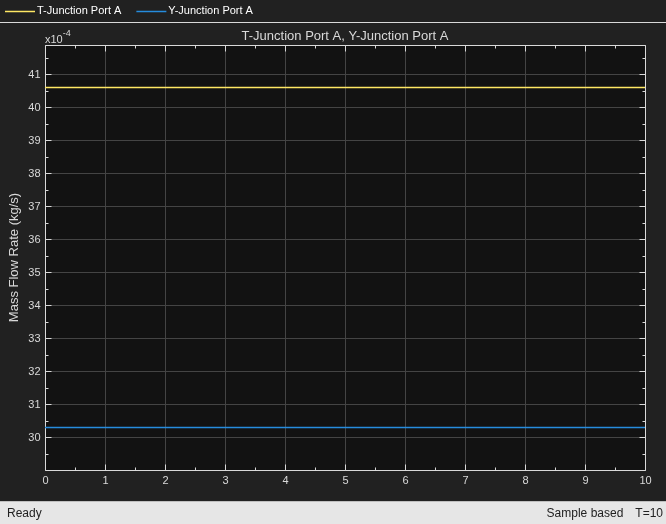

The Y-Junction (IL) block models a Y-junction consisting of a main branch and a side branch in an isothermal liquid network. The path between ports A and B is the main branch. The path between ports A and C or between ports B and C is the side branch.

Flow Direction

The flow is converging when the flow through port C merges into the main flow. The flow is diverging when the branch flow splits from the main flow.

The block uses mode charts to determine each loss coefficient for a given flow configuration. This table describes the conditions and coefficients when the Loss coefficient model parameter is Custom.

Flow Scenario	ṁA	ṁB	ṁC	KA	KB	KC
Stagnant	–	–	–	1 or last valid value	1 or last valid value	1 or last valid value
Diverging from node A	>ṁthresh	<-ṁthresh	<-ṁthresh	0	Kmain,div	Kside,div
Diverging from node B	<-ṁthresh	>ṁthresh	<-ṁthresh	Kmain,div	0	Kside,div
Converging to node A	<-ṁthresh	>ṁthresh	>ṁthresh	0	Kmain,conv	Kside,conv
Converging to node B	>ṁthresh	<-ṁthresh	>ṁthresh	Kmain,conv	0	Kside,conv
Converging to node C (branch)	>ṁthresh	>ṁthresh	<-ṁthresh	(Kmain,conv + Kside,conv)/2	(Kmain,conv + Kside,conv)/2	0
Diverging from node C (branch)	<-ṁthresh	<-ṁthresh	>ṁthresh	(Kmain,div + Kside,div)/2	(Kmain,div + Kside,div)/2	0

This table describes the conditions and coefficients when the Loss coefficient model parameter is Idel'chik correlation.

Flow Scenario	ṁA	ṁB	ṁC	KA	KB	KC
Stagnant	–	–	–	1 or last valid value	1 or last valid value	1 or last valid value
Diverging from node A — Invalid	>ṁthresh	<-ṁthresh	<-ṁthresh	0	1	1
Diverging from node B	<-ṁthresh	>ṁthresh	<-ṁthresh	Kmain,div	0	Kside,div
Converging to node A — Invalid	<-ṁthresh	>ṁthresh	>ṁthresh	0	1	1
Converging to node B	>ṁthresh	<-ṁthresh	>ṁthresh	Kmain,conv	0	Kside,conv
Converging to node C (branch) — Invalid	>ṁthresh	>ṁthresh	<-ṁthresh	1	1	0
Diverging from node C (branch) — Invalid	<-ṁthresh	<-ṁthresh	>ṁthresh	1	1	0

In stagnant flow, the mass flow rate conditions do not match any defined flow scenario. Stagnant flow is permitted at the start of the simulation, but the block does not revert to stagnant flow after it has achieved another mode. The mass flow rate threshold, which is the point at which the flow in the pipe begins to reverse direction, is

$${\dot{m}}_{thresh}={\mathrm{Re}}_c\upsilon \overline{\rho }\sqrt{\frac{\pi }{4}{A}_{\min }},$$

where:

• Re_c is the Critical Reynolds number parameter, beyond which the transitional flow regime begins.

• ν is the fluid viscosity.

• $$\overline{\rho }$$ is the average fluid density.

• A_min is the smallest cross-sectional area in the pipe junction.

Idel'chik Correlation Coefficient Model

When you set the Loss coefficient model parameter to Idel'chik correlation, the block calculates the pipe loss coefficients according to [1].

Flow Configuration

The block supports two flow configurations between the main branch from ports A and B and the side branch from port C. The side branch is offset from the main branch at an angle α, which is the value of the Junction angle between (A-C) parameter.

In a converging flow, the flow enters at ports A and C and exits at port B.

In a diverging flow, the flow enters at port B and exits at ports A and C.

You can control the block behavior in a prohibited flow configuration by using the Report when flow configuration is invalid parameter. If the Report when flow configuration is invalid parameter is set to None or Warning, the model continues to run in the prohibited flow configuration, but the results may not be correct.

Converging Flow

For a converging flow, the block calculates the loss coefficient of the side branch between ports C and B using a simplified version of Idel'chik that assumes the area of the main branch is constant. The loss coefficient of the side branch is

$$K_{side,conv}=\left[1+{\left(\frac{{\dot{m}}_C}{{\dot{m}}_B}\frac{A_B}{A_C}\right)}^2-2\left(\frac{A_B}{A_A}\right){\left(1-\frac{{\dot{m}}_C}{{\dot{m}}_B}\right)}^2-2\ast \cos \alpha \ast \frac{A_B}{A_C}{\left(\frac{{\dot{m}}_C}{{\dot{m}}_B}\right)}^2\right]{\left[\frac{{\dot{m}}_C}{{\dot{m}}_B}\frac{A_C}{A_B}\right]}^{-2},$$

where:

• $${\dot{m}}_A,{\dot{m}}_B,{\dot{m}}_C$$ are the mass flow rates from rates at ports A, B, and C, respectively.

• A_A, A_B, A_C are fitting coefficients for ports A, B, and C, respectively.

The block calculates the loss coefficient of the main branch between ports A and B using a simplified version of Idel'chik that assumes the main branch area is constant and $${\text{Q}}_C=Q_B+Q_S$$, where Q is the volumetric flow rate through the specified port. The main branch loss coefficient is

$$K_{main,conv}=\left[1-{\left(1-\frac{{\dot{m}}_C}{{\dot{m}}_B}\right)}^2-2\ast \cos \alpha \ast \frac{A_B}{A_C}{\left(\frac{{\dot{m}}_C}{{\dot{m}}_B}\right)}^2\right]{\left[1-{\left(\frac{{\dot{m}}_C}{{\dot{m}}_B}\right)}^2\right]}^{-1}.$$

Diverging Flow

For a diverging flow, the block calculates the loss coefficient of the side branch between ports C and B as

$$K_{side,div}=A\prime \left[1+{\left(\frac{{\dot{m}}_C}{{\dot{m}}_B}\frac{A_B}{A_C}\right)}^2-2\ast \cos \alpha \ast \frac{{\dot{m}}_C}{{\dot{m}}_B}\frac{A_B}{A_C}\right]{\left[\frac{{\dot{m}}_C}{{\dot{m}}_B}\frac{A_C}{A_B}\right]}^{-2},$$

where

$$\text{A'=}\frac{1}{2}\left[1+\tanh \left(\frac{4\left(R_{A^{\prime }}-0.8\right)}{0.8}\right)\right]+\frac{0.9}{2}\left[1-\tanh \left(\frac{4\left(R_{A^{\prime }}-0.8\right)}{0.8}\right)\right]$$

and

$$R_{A^{\prime }}=\frac{\sqrt{{\dot{m}}_C^2+{\dot{m}}_{thresh}^2}}{\sqrt{{\dot{m}}_B^2+{\dot{m}}_{thresh}^2}}.$$

The block calculates the loss coefficient of the main branch between ports A and B as

$$K_{main,div}=0.4{\left(1-\frac{{\dot{m}}_A}{{\dot{m}}_B}\frac{A_B}{A_A}\right)}^2{\left(\frac{{\dot{m}}_A}{{\dot{m}}_B}\right)}^{-2}.$$

Custom Y-Junction

When you set the Loss coefficient model parameter to Custom, the block calculates the pipe loss coefficient at each port, K, based on the user-defined loss parameters for converging and diverging flow and mass flow rate at each port. You must specify K_main,conv, K_main,div, K_side,conv, and K_side,div as the Main branch converging loss coefficient, Main branch diverging loss coefficient, Side branch converging loss coefficient, and Side branch diverging loss coefficient parameters, respectively. The custom loss coefficient model behavior for the Y-junction is the same as for the custom T-junction.

Mass and Momentum Balance

The block conserves mass in the junction such that

$${\dot{m}}_A+{\dot{m}}_B+{\dot{m}}_C=0.$$

Flow through the pipe junction behaves according to the momentum conservation equations between ports A, B, and C:

$$\begin{array}{l}{p}_A-p_I=I_A+\frac{K_A}{2\overline{\rho }{A}_{{}_{main}}^2}{\dot{m}}_A\sqrt{{\dot{m}}_A^2+{\dot{m}}_{thresh}^2}\\ p_B-p_I=I_B+\frac{K_B}{2\overline{\rho }{A}_{{}_{main}}^2}{\dot{m}}_B\sqrt{{\dot{m}}_B^2+{\dot{m}}_{thresh}^2}\\ p_C-p_I=I_C+\frac{K_C}{2\overline{\rho }{A}_{{}_{side}}^2}{\dot{m}}_C\sqrt{{\dot{m}}_C^2+{\dot{m}}_{thresh}^2}\end{array}$$

where I represents the fluid inertia, and

$$\begin{array}{l}{I}_A={\ddot{m}}_A\frac{\sqrt{\pi \cdot A_{side}}}{A_{main}}\\ I_B={\ddot{m}}_B\frac{\sqrt{\pi \cdot A_{side}}}{A_{main}}\\ I_C={\ddot{m}}_C\frac{\sqrt{\pi \cdot A_{main}}}{A_{side}}\end{array}$$

A_main is the Main branch area (A-B) parameter and A_side is the Side branch area (C) parameter.

Variables

To set the priority and initial target values for the block variables prior to simulation, use the Initial Targets section in the block dialog box or Property Inspector. For more information, see Set Priority and Initial Target for Block Variables.

Nominal values provide a way to specify the expected magnitude of a variable in a model. Using system scaling based on nominal values increases the simulation robustness. Nominal values can come from different sources, one of which is the Nominal Values section in the block dialog box or Property Inspector. For more information, see Modify Nominal Values for a Block Variable.

Ports

Conserving

A — Liquid port

isothermal liquid

Isothermal liquid conserving port associated with the liquid entrance or exit of the junction.

B — Liquid port

isothermal liquid

Isothermal liquid conserving port associated with the liquid entrance or exit of the junction.

C — Liquid port

isothermal liquid

Isothermal liquid conserving port associated with the liquid entrance or exit of the junction.

Parameters

Junction angle between (A-C) — Offset angle of side branch

45 deg (default) | positive scalar between 15 and 60

Angle of the side branch offset with respect to the main branch.

Main branch area (A-B) — Cross-sectional area between ports A and B

0.01 m^2 (default) | positive scalar

Area of connecting pipe between ports A and B.

Side branch area (C) — Cross-sectional area of the side branch

0.004 m^2 (default) | positive scalar

Area of connecting pipe between port C and the main branch.

Loss coefficient model — Loss coefficient type

Idel'chik correlation (default) | Custom

Junction loss coefficient model. Set this parameter to Custom to specify individual diverging and converging loss coefficients for each flow path segment.

Report when flow configuration is invalid — Simulation warning mode for invalid flow configurations

None (default) | Warning | Error

Simulation warning mode for operating conditions outside the valid flow configurations. If you select Warning, the block generates a warning for conditions outside the valid flow configurations. The warning does not cause simulation to stop. If you select Error, the simulation will stop for conditions outside the valid flow configurations.

Dependencies

To enable this parameter, set Loss coefficient model to Idel'chik correlation.

Main branch converging loss coefficient — Converging flow loss coefficient between A and B

1.12 (default) | positive scalar

Loss coefficient for pressure loss calculations between ports A and B for converging flow.

Dependencies

To enable this parameter, set Loss coefficient model to Custom.

Main branch diverging loss coefficient — Diverging flow loss coefficient between A and B

1.12 (default) | positive scalar

Loss coefficient for pressure loss calculations between ports A and B for diverging flow.

Dependencies

To enable this parameter, set Loss coefficient model to Custom.

Side branch converging loss coefficient — Converging flow loss coefficient between C and main

1.12 (default) | positive scalar

Loss coefficient for pressure loss calculations between port C and the main line for converging flow.

Dependencies

To enable this parameter, set Loss coefficient model to Custom.

Side branch diverging loss coefficient — Diverging flow loss coefficient between C and main

1.12 (default) | positive scalar

Loss coefficient for pressure loss calculations between port C and the main line for diverging flow.

Dependencies

To enable this parameter, set Loss coefficient model to Custom.

Critical Reynolds number — Upper Reynolds number limit for laminar flow

150 (default) | positive scalar

Upper Reynolds number limit for laminar flow through the junction.

References

[1] Idel’chik, I. E. Handbook of hydraulic resistance: Coefficients of local resistance and of friction. Jerusalem: Israel Program for Scientific Translations, 1966.
