## Tune FIS Tree Using Fuzzy Logic Designer

Since R2023b

This example shows how to interactively tune membership function (MF) and rule parameters of FIS tree using Fuzzy Logic Designer. This example uses particle swarm and pattern search optimization, which require Global Optimization Toolbox software.

For an example that programmatically tunes a FIS tree using the same data, see Tune FIS Tree at the Command Line.

For an example that interactively tunes a FIS using the same data, see Tune Fuzzy Inference System Using Fuzzy Logic Designer.

This example trains a FIS using automobile fuel consumption data. The goal is for the FIS to predict fuel consumption in miles per gallon (MPG) using several automobile profile attributes. The training data is available in the University of California at Irvine Machine Learning Repository and contains data collected from automobiles of various makes and models.

This example uses the following six input data attributes to predict the output data attribute MPG with a FIS:

1. Number of cylinders

2. Displacement

3. Horsepower

4. Weight

5. Acceleration

6. Model year

Load the data. Each row of the data set obtained from the repository represents a different automobile profile.

`[data,name] = loadGasData;`

`data` contains seven columns, where the first six columns contain the input attribute values. The final column contains the predicted MPG output. Split data into input and output data sets, X and Y, respectively.

```X = data(:,1:6); Y = data(:,7);```

Partition the input and output data sets into training data (odd-indexed samples) and validation data (even-indexed samples).

```trnX = X(1:2:end,:); % Training input data set trnY = Y(1:2:end,:); % Training output data set vldX = X(2:2:end,:); % Validation input data set vldY = Y(2:2:end,:); % Validation output data set```

The FIS tree structure that you create in this example uses a different input order than the original data. Rearrange the training and validation input data to use the new order.

```inputOrders1 = [4 6 2 5 3 1]; trnX = trnX(:,inputOrders1); vldX = vldX(:,inputOrders1);```

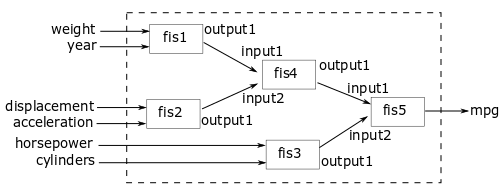

Initial FIS Tree Structure

To train a FIS tree, you must first create an initial FIS tree structure. For this example, you use the following FIS tree.

`load mpgInitialFISTree`

This FIS tree was created using the following steps:

1. Rank the input attributes based on their correlations with the output attribute.

2. Create multiple FIS objects using the ranked input attributes.

3. Construct a FIS tree from the FIS objects.

For more information on creating this FIS tree structure, see Tune FIS Tree at the Command Line.

### Define Initial FIS Tree Structure

The first step of the tuning process is to define the initial structure of your FIS tree. To define this structure, specify:

• Component FIS objects, specifying the following for each FIS:

• Input and output variables with defined ranges

• Initial membership functions for each variable

• Initial rule base (optional)

• Connections between FIS objects

• Output configuration for the FIS tree

To create your FIS in the app, you can:

For this example, open Fuzzy Logic Designer and import the `mpgInitialFISTree` system from the MATLAB® workspace.

`fuzzyLogicDesigner(mpgInitialFISTree)`

### Import Training Data

To select input and output data for tuning, on the Tuning tab:

• In the Input Data drop-down list, under Workspace Data Sets, select trnX.

• In the Output Data drop-down list, under Workspace Data Sets, select trnY.

### Tune FIS Tree

Tuning is performed in two steps.

1. Learn the rule base for each FIS while keeping the input and output MF parameters constant.

2. Tune the parameters of the input/output MFs and rules for each FIS.

The first step is less computationally expensive due to the small number of rule parameters, and it quickly converges to a fuzzy rule base during training. In the second step, using the rule base from the first step as an initial condition provides fast convergence of the parameter tuning process.

#### Learn Rules

To learn the rules for your FIS, first specify the tuning options. Click Tuning Options.

In the Tuning Options dialog box, configure the following tuning options:

• In the Optimization Type section, select Learning.

• In the Method drop-down list, select `Particle swarm`. Particle swarm optimization is a global optimization method. Such methods perform better in large parameter tuning ranges as compared to local optimization methods.

• Set the maximum number of optimization iterations to `50`.

• Clear the Use default method options parameter

• Under Method Options: Particle swarm, in the leftmost drop-down list, select ```Run time limits```. By default, the next drop-down list shows `Max Iterations`.

• In the text box, enter `20`.

• Set the maximum number of rules to generate for each FIS during learning. Clear the auto parameter and set the Max number of rules option to `4`.

• For reproducible results, set the Random number seed parameter to the ```Initialize Mersenne Twister generator``` option.

• Keep the remaining training options at their default values.

Click .

To only learn rules without modifying the MF parameters, you must disable the input and output tunable parameter settings for all FIS objects.

In the System Browser, under `FIS`, select `fis1`.

In the Tunable Parameters pane, click for both the input and output tables.

Repeat this process for the remaining FIS objects, `fis2`, `fis3`, `fis4`, and `fis5`.

To train the FIS, on the Tuning tab, click Tune. For this example, learning rules takes several minutes.

The Tune tab shows the training progress.

• The Convergence Plot document plots the optimization cost (training error) after each epoch for both the training and validation data.

• The Convergence Results document shows the algorithm-specific tuning progress.

The following figure shows the completed training process. The training error decreases throughout the tuning process. The tuning stops after the maximum number of iterations is reached.

The final root mean-squared error (RMSE) cost value for the tuned FIS tree is 3.271 MPG.

To accept the training results, click Accept.

The app adds the tuned FIS tree `fistreemodel_tuned` to the Design Browser and sets this FIS tree as the active design.

Select the `fistreemodel_tuned` row in the Design Browser. Click the FIS tree name and rename it to `fistree_learned`.

To validate the performance of the tuned FIS tree, compare its performance to the validation data.

To select validation data, on the Design tab:

• In the Input Data drop-down list, under Workspace Data Sets, select vldX.

• In the Output Data drop-down list, under Workspace Data Sets, select vldY.

To ensure that the first untuned FIS tree is not included in any system validation, in the Design Browser, clear the corresponding entry in the Compare column.

On the Design tab, in the Simulation gallery, click System Validation.

The System Validation document shows the input values, reference output values, and FIS tree output values.

• To view just the reference and FIS tree output values, click for the Reference Inputs table.

• To view the error between the reference and FIS tree output values, select Prediction errors.

The FIS tree output tracks the reference output well.

The bottom plot shows the output error. The legend for this plot displays an RMSE of 3.258 MPG for the validation data, which is comparable to the RMSE for the training data.

#### Tune All Parameters

To further improve the FIS performance, you can tune the MF and rule parameters of `fis_learned`. To do so, first specify the tuning options.

On the Tuning tab, click Tuning Options.

In the Tuning Options dialog box, configure the following tuning options:

• In the Optimization Type section, select Tuning.

• In the Method drop-down list, select `Pattern search`, which is a local optimization method that converges quickly for the parameter tuning.

• Set the maximum number of optimization iterations to `75`.

• Under Method Options: Pattern search, in the leftmost drop-down list, select ```Run time limits```.

• In the next drop-down list, select ```Max Iterations```.

• In the text box, enter `75`.

• To improve the pattern search results, use a complete poll.

• Under Method Options: Pattern search, click +. The app adds a new option row.

• In this row, in the leftmost drop-down list, select `Poll settings`

• In the next drop-down list, select ```Do a complete poll```.

• Select the checkbox.

• Keep the remaining training options at their previous values.

Click .

To tune the MF and rule parameters, you must ensure that the corresponding tunable parameter settings are enabled.

• In the System Browser, select `fis1`.

• In the Tunable Parameters pane, click for both the input and output tables.

• In the rule table, all the rule parameters are already selected.

Repeat this process for the remaining FIS objects, `fis2`, `fis3`, `fis4`, and `fis5`.

To train the FIS, on the Tuning tab, click Tune. For this example, tuning parameters can take several minutes.

The following figure shows the completed training process. The training error decreases throughout the tuning process. The training stops after the maximum number of iterations is reached.

The final root mean-squared error (RMSE) cost value for the tuned FIS is 3.011 MPG.

To accept the training results, click Accept.

The app adds the tuned FIS tree `fistree_learned_tuned` to the Design Browser and sets this FIS tree as the active design.

Rename this FIS tree to `fistree_tuned`.

Open the System Validation document. The plots update to show the validation results for `fistree_tuned`.

The results are similar to the results for `fistree_learned`. In the Prediction Errors plot, the RMSE for `fistree_tuned` is 3.057 MPG. Tuning the MF and rule parameters has improved the performance of the tuned FIS.

### Analyze Intermediate Data

To gain insight into the operation of your FIS tree, you can add the outputs of the component FIS objects as outputs of your FIS tree. For this example, examine how the outputs of `fis1`, `fis2`, and `fis3` correlate with the output validation data.

First, since you are analyzing the behavior of `fistree_tuned`, remove the `fistree_learned` output from the System Validation plots. To do so, in the Design Browser, clear the entry in the Compare column for `fis_learned`.

To compare FIS tree outputs with validation data, the number of FIS tree outputs must match the number of outputs in the validation output data, which for this example is one. To configure the FIS tree outputs, in the System Browser, under `fistree_tuned`, click `Outputs`.

To make the output of `fis1` the only output of the FIS tree, in the Property Editor:

• Disable the output of `fis5`. In the Free Outputs table, select the entry in the Unused Output column for `fis5`.

• Configure the output of `fis1` as a FIS tree output. In the Connected Outputs table, select the entry in the Intermediate Output column for `fis1`.

Click .

In the System Validation document, clear the Prediction errors checkbox.

Repeat this process to view the output behavior for `fis2`.

Repeat this process to view the output behavior for `fis3`.

The outputs of `fis1`, `fis2`, and `fis3` all correlate with the output validation data. The correlation of `fis1` appears to be strongest, followed by `fis3`.

To validate this analysis, you can export the system validation simulation results to the MATLAB workspace for further analysis. For more information on exporting simulation results, see Export FIS and Simulation Data from Fuzzy Logic Designer. For an example correlation analysis, see the command-line tuning example Tune FIS Tree at the Command Line

After analyzing the intermediate outputs, reset the FIS output configuration. In the Property Editor enable the output `fis5` as a FIS tree output and clear the Intermediate Output value the connected outputs.

### Simplify and Retrain FIS Tree

For this example, to see if you can get comparable performance for a simplified FIS tree, remove `fis2` and `fis4` from the original FIS structure and retune the FIS tree.

To do so, first open a new instance of Fuzzy Logic Designer with the original FIS tree structure. On the Design tab, under Import > Import Fuzzy Inference System from Workspace, select `mpgInitialFISTree`.

To remove `fis2`, in the System Browser, under `FIS`, right-click `fis2` and select Delete. When you delete a FIS object from your FIS tree, any connections to that FIS object are also removed.

Similarly, remove `fis4`.

Connect the output of `fis1` to the first input of `fis5`.

The following figure shows the resulting FIS tree configuration.

To learn rules, disable parameter tuning for `fis1`, `fis3`, and `fis5`. In the System Browser, under `FIS`, select each FIS individually and, in the Tunable Parameters pane, click for both the input and output tables.

On the Tuning tab, select the simplified four-input training data:

• In the Input Data drop-down list, select simpleTrnX.

• In the Output Data drop-down list, select trnY.

Click Tuning Options. In the Tuning Options dialog box, configure the same rule-learning options that you used previously, as shown in the following figure.

Click Tune.

The RMSE for this learning step is 3.368, which is similar to the result from the original rule learning step.

Accept the training result and rename the resulting FIS tree design to `mpgsimple_learned`.

To tune the rule and MF parameters, configure the same parameter-tuning options that you used previously, as shown in the following figure.

Click Tune.

The RMSE for this learning step is 2.868, which is lower than the result from the original rule learning step.

Accept the training result and rename the resulting FIS tree design to `mpgsimple_tuned`.

To validate the final tuned system, first select the Compare checkbox for the `mpgsimple_tuned` system in the Design Browser, and clear the Compare checkbox for all the other designs.

On the Design tab:

• In the Input Data drop-down list, select simpleVldX.

• In the Output Data drop-down list, select vldY.

Open the System Validation document.

The RMSE for the validation data is 3.014, which is similar to the result from the original rule learning step.

### Export Tuned FIS Tree

To save your FIS tree for further analysis and development, you can either export it to the MATLAB workspace or save it to a FIS file. For this example, export both the simplified tuned FIS tree to the MATLAB workspace.

On the Design tab, under Export, select Export Fuzzy Inference System to Workspace.

In the Export Fuzzy Inference System to Workspace dialog box, in the Export column, select the checkbox for `mpgsimple_tuned`.

Click .
