renko

Renko

Syntax

renko(Data)

renko(Data,Threshold,)

h = renko(ax,___)

Description

renko(Data) plots a Renko chart from a series of prices of a security.

renko(Data,Threshold,) adds an optional argument for Threshold.

h = renko(ax,___) adds an optional argument for ax.

Examples

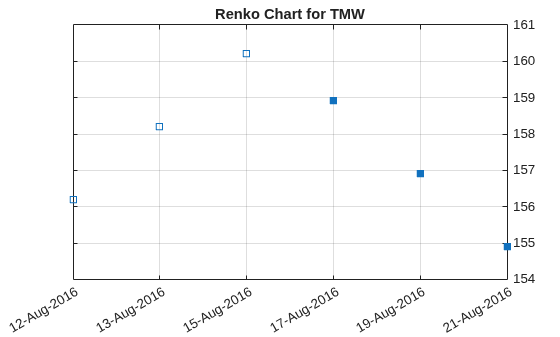

Generate a Renko Chart for a Data Series for a Stock

Load the file SimulatedStock.mat, which provides a timetable (TMW) for financial data for TMW stock. This example shows how to plot a Renko chart for the most recent 21 days. Note that the variable name of asset price is renamed to 'Price' (case insensitive).

load SimulatedStock.mat
TMW.Properties.VariableNames{'Close'} = 'Price';
renko(TMW(end-8:end,:),2)
title('Renko Chart for TMW')

Input Arguments

Data — Data for a series of prices

matrix | table | timetable

Data for a series of prices, specified as a matrix, table, or timetable. Timetables and tables with M rows must contain a variable named 'Price' (case insensitive).

Data Types: double | table | timetable

Threshold — (Optional) Least price change value when adding a new box

1 (default) | positive numeric

Least price change value when adding a new box, specified as a scalar positive numeric value.

Data Types: double

ax — Valid axis object

current axes (ax = gca) (default) | axes object

(Optional) Valid axis object, specified as an axes object. The renko plot is created in the axes specified by ax instead of in the current axes (ax = gca). The option ax can precede any of the input argument combinations.

Data Types: object

Output Arguments

h — Graphic handle of the figure

handle object

Graphic handle of the figure, returned as a handle object.

Version History

Introduced in R2008a

R2022b: Support for negative price data

The Data input accepts negative prices.

R2018a: Support for matrix, time, or timetable input for data

renko accepts Data input as a matrix, timetable, or table.

The syntax for renko has changed. Previously, when using table input, the first column of dates could be a datetime array, date character vectors, or serial date numbers, and you were required to have specific number of columns.

When using table input, the new syntax for renko supports:

• No need for time information. If you want to pass in date information, use timetable input.

• No requirement of specific number of columns. However, you must provide valid column names. renko must contain a column named ‘price’ (case insensitive).
