Estimate Vector Error-Correction Model Using Econometric Modeler App

This example models the annual Canadian inflation and interest rate series by using the Econometric Modeler app. The example performs the following actions in the app:

  1. Test each raw series for stationary.

  2. Test for cointegration and determine a Johansen cointegration form if cointegration is present.

  3. Fit several completing vector error-correction (VEC) models, and choose the one with the best, parsimonious fit.

  4. Diagnose each residual series.

  5. Export the chosen model to the command line.

At the command line, the example uses the model to generate forecasts.

The data set, which is stored in Data_Canada, contains annual Canadian inflation and interest rates from 1954 through 1994.

Load and Import Data into Econometric Modeler

At the command line, load the Data_Canada.mat data set.

load Data_Canada

Convert the table DataTable to a timetable:

  1. Clear the row names of DataTable.

  2. Convert the sampling years to a datetime vector.

  3. Convert the table to a timetable by associating the rows with the sampling times in dates.

DataTable.Properties.RowNames = {};
dates = datetime(dates,12,31,'Format','yyyy');
DataTable = table2timetable(DataTable,'RowTimes',dates);

At the command line, open the Econometric Modeler app.

econometricModeler

Alternatively, open the app from the apps gallery (see Econometric Modeler).

Import DataTable into the app:

  1. On the Econometric Modeler tab, in the Import section, click .

  2. In the Import Data dialog box, in the Import? column, select the check box for the DataTable variable.

  3. Click Import.

The Canadian interest and inflation rate variables appear in the Time Series pane, and a time series plot of all the series appears in the Time Series Plot(INF_C) figure window.

Time series plot of all the series

Plot only the three interest rate series INT_L, INT_M, and INT_S together. In the Time Series pane, click INT_L and Ctrl click INT_M and INT_S. Then, on the Plots tab, in the Plots section, click Time Series. The time series plot appears in the Time Series(INT_L) document.

Time series plot of the interest rate series

The interest rate series each appear nonstationary, and they appear to move together with mean-reverting spread, in other words, they exhibit cointegration. To establish these properties, this example conducts statistical tests.

Conduct Stationarity Test

Assess whether each interest rate series is stationary by conducting Phillips-Perron unit-root tests. For each series, assume a stationary AR(1) process with drift for the alternative hypothesis (you can confirm this property by viewing the autocorrelation and partial autocorrelation function plots).

Close all plots in the right pane, and perform the following procedure for each series INT_L, INT_M, and INT_S.

  1. In the Time Series pane, click a series.

  2. On the Econometric Modeler tab, in the Tests section, click New Test > Phillips-Perron Test.

  3. On the PP tab, in the Parameters section, in the Number of Lags box, type 1, and in the Model list select Autoregressive with Drift.

    Phillips-Perron test parameter settings

  4. In the Tests section, click Run Test. Test results for the selected series appear in the PP(series) tab.

Position the test results to view them simultaneously.

Phillips-Perron test results

All tests fail to reject the null hypothesis that the series contains a unit root process.

Conduct Cointegration Test

In order to create and estimate a VEC model of unit root series, the series need to exhibit cointegration. Conduct a Johansen test. Because the raw series do not contain a linear trend, assume that the only deterministic term in the model is an intercept in the cointegrating relation (H1* Johansen form), and include 1 lagged difference term in the model.

  1. In the Time Series pane, click INT_L and Ctrl click INT_M and INT_S.

  2. In the Tests section, click New Test > Johansen Test.

  3. On the JCI tab, in the Parameters section, in the Number of Lags box, type 1, and in the Model list select H1*.

    Johansen test parameter settings

  4. In the Tests section, click Run Test. Test results and a plot of the cointegration relation for the largest rank appear in the JCI tab.

Johansen test results

Econometric Modeler conducts a separate test for each cointegration rank 0 through 2 (the number of series – 1). The test rejects the null hypothesis of no cointegration (Cointegration rank = 0), but fails to reject the null hypothesis of Cointegration rank ≤ 1. The conclusion is to set the cointegration rank of the VEC model to 1.

Estimate VEC Models

Estimate 3-D VEC(p) models of the interest rate series, with a cointegration rank of 1 and p = 1 and 2.

  1. With INT_L, INT_M, and INT_S selected in the Time Series pane, in the Models section, click VEC.

  2. In the VEC Model Parameters dialog, in the Johansen Form, select H1*. Fit the VEC(1) model by clicking Estimate.

    VEC Model Parameters dialog set to fit a VEC(1) model

    The model variable VEC appears in the Models pane, its value appears in the Preview pane, and its estimation summary appears in the Model Summary(VEC) document.

  3. Repeat step 1 and 2 for the short-run polynomial order p = 2.

    Similar to the VEC(1) estimation, the variable VEC2 appears in the appears in the Models pane, and its estimation summary appears in the Model Summary(VEC2) document. You can view properties of an estimated model in the Preview pane by clicking the model in the Models pane. For example, click VEC.

    Object display of model VEC

Select Model With Best In-Sample Fit

The estimation summary in each Model Summary(VECp) tab contains a plot of fitted values and residuals, with respect to the time series in the Time Series list, a standard statistical table of estimates and inferences, and a table of information criteria.

Compare the information criteria of each estimated model simultaneously by positioning the estimation summary documents so that they occupy the left and right sections of the right pane. The model with the lowest value has the best, parsimonious fit.

All estimation summaries occupying the four quadrants of the right pane

The VEC(1) model VEC produces the lowest AIC and BIC values. Choose this model for further analysis.

Check Goodness of Fit

Inspect the following VEC(1) plots of each residual series:

  • Histograms, for center, normality, and outliers

  • Quantile-quantile plots, for normality, skewness, and tails

  • Autocorrelation function (ACF), for serial correlation

  • ACF of squared residual series, for heteroscedasticity

This example diagnoses the residuals visually. Alternatively, you can conduct statistical tests to diagnose the residuals.

Dismiss the Model Summary(VEC2) document by clicking on its tab.

On the Models pane, click VEC.

Plot separate residual histograms. On the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Residual Histogram. Histograms of the each residual series appear in the Histogram(VEC) document.

Histograms of each residual series

Each residual series appears approximately centered around 0 and approximately normal.

Plot separate residual quantile-quantile plots. With VEC selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Residual Q-Q Plot. Quantile-quantile plots of the each residual series appear in the QQPlot(VEC) document.

Quantile-quantile plots of each residual series

The residual series have are slightly skewed left and have lighter tails than the normal distribution. This example proceeds without addressing possible the skewness and light tails.

Plot separate ACF plots of each residual series. With VEC selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Autocorrelation Function. ACF plots of the each residual series appear in the ACF(VEC) document.

ACF plots of each residual series

The residuals do not exhibit significant autocorrelation.

Plot separate ACF plots of each squared residual series. With VEC selected in the Time Series pane, on the Econometric Modeler tab, in the Diagnostics section, click Residual Diagnostics > Squared Residual Autocorrelation. ACF plots of the each squared residual series appear in the ACF(VEC)2 document.

ACF plots of each squared residual series

Each squared residual series has significant autocorrelations at early lags, which suggests that heteroscedasticity is present in all series. This example proceeds without addressing possible heteroscedasticity.

Export Model to Workspace

Export the model to the workspace.

  1. With the VEC model selected in the Models pane, on the Econometric Modeler tab, in the Export section, click Export > Export Variables.

  2. In the Export Variables dialog box, select the Select check box the INT_L, INT_M, and INT_S.

  3. Click Export.

The variables INT_L, INT_M, INT_S, and VEC appear in the workspace.

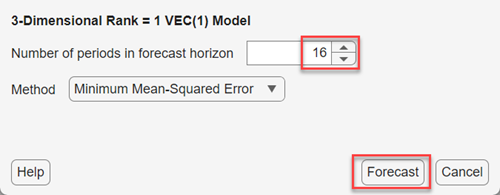

Generate Forecasts at Command Line

Generate forecasts and approximate 95% forecast intervals from the estimated VEC(1) model for the next five years. For convenience, use the entire series as a presample for the forecasts (forecast discards all specified presample observations except for the required final observation).

Y0 = [INT_L INT_M INT_S];
[YF,YFMSE] = forecast(VEC,5,Y0);
YFSE = cell2mat(cellfun(@(x)sqrt(diag(x)'),YFMSE,UniformOutput=false));
UB = YF + 1.96*YFSE;
LB = YF - 1.96*YFSE;
datesF = DataTable.Time(end) + calyears(1:5);

figure
tiledlayout(3,1)
for j = 1:VEC.NumSeries
    nexttile
    h1 = plot(DataTable.Time,Y0(:,j),Color=[.75,.75,.75]);
    hold on
    h2 = plot(datesF,YF(:,j),"r",LineWidth=2);
    h3 = plot(datesF,UB(:,j),"k--",LineWidth=1.5);
    plot(datesF,LB(:,j),"k--",LineWidth=1.5);
    ct = [Y0(end,j) YF(1,j); Y0(end,j) LB(1,j); Y0(end,j) UB(1,j);];
    plot([DataTable.Time(end); datesF(1)],ct,Color=[.75,.75,.75])
    legend([h1 h2 h3],VEC.SeriesNames(j),"Forecast", ...
       "Forecast Interval",Location="northwest")
    hold off
end

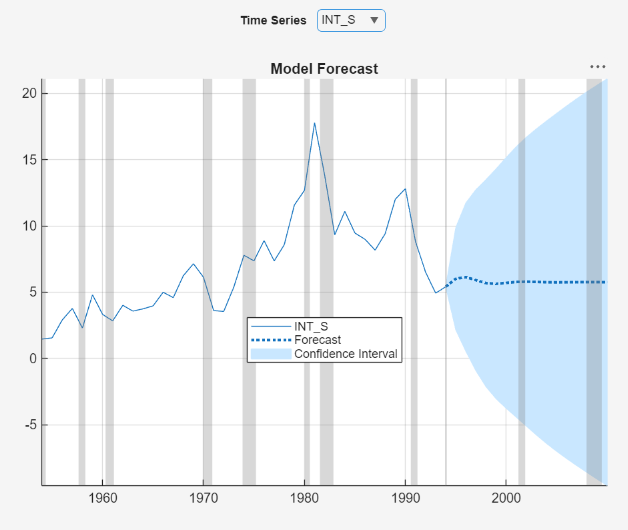

Separate time series plots of each series and forecasts generated from the VEC(1) model
