coder.asap2.AxisInfo
R2026bDescription
Create an axis info object to define axis for a lookup table element and export it to an ASAP2 file.
Creation
axis = coder.asap2.AxisInfo
Properties
Examples
This example shows how to programmatically customize ECU descriptions in an ASAP2 file by adding, modifying, and removing computation methods, characteristics, measurements, and lookup table parameters.
Use functions to create an ECU description object from a built model, find and filter its contents, and export a customized ASAP2 file.
In this example, you:
Build a model and create an ECU description object
Find and filter computation methods by properties
Add and modify a custom computation method
Add and modify a custom characteristic and measurement
Add a lookup table parameter with axis information
Export the customized ASAP2 file
Open and Build the Model

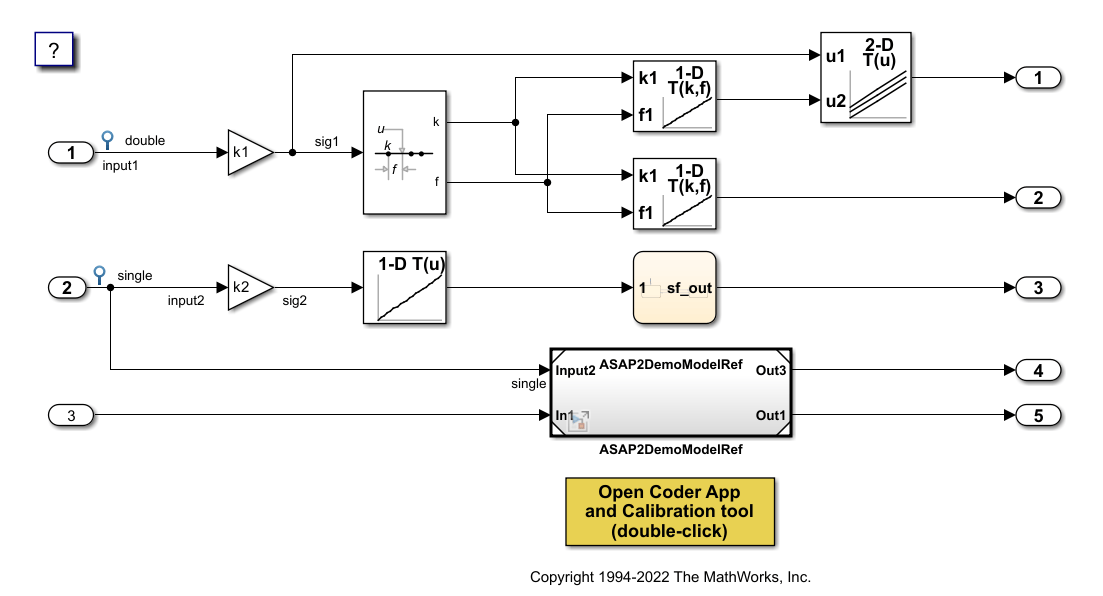

Open the example model ASAP2Demo and generate code from it. Building the model is a prerequisite for creating the ECU description object.
open_system("ASAP2Demo");
slbuild("ASAP2Demo");### Searching for referenced models in model 'ASAP2Demo'. ### Total of 2 models to build. ### Starting serial code generation build. ### Starting model reference code generation target build for: ASAP2DemoModelRef ### Successfully updated the model reference code generation target for: ASAP2DemoModelRef ### Starting top model code generation target build for: ASAP2Demo ### Successful completion of build procedure for: ASAP2Demo Build Summary Model reference code generation targets: Model Build Reason Status Build Duration ============================================================================================================ ASAP2DemoModelRef Target (ASAP2DemoModelRef.c) did not exist. Code generated and compiled. 0h 0m 8.5322s Top model targets: Model Build Reason Status Build Duration ============================================================================================ ASAP2Demo Target (ASAP2Demo.c) did not exist. Code generated and compiled. 0h 0m 16.383s 2 of 2 models built (0 models already up to date) Build duration: 0h 0m 27.316s
Create and Explore ECU Descriptions
Create the ECU description object for the built model. Use the find function to list available computation methods.
descObj = coder.asap2.getEcuDescriptions("ASAP2Demo");Export duration: 0h 0m 0s 227ms
find(descObj, "CompuMethod")ans = 1×9 string
"CM_double" "CM_double_m_per_U0028_s_U005E_2_U0029" "CM_double_rpm" "CM_int16_rpm" "CM_int32" "CM_single" "CM_single_m_per_U0028_s_U005E_2_U0029" "CM_single_rpm" "CM_uint8"
Filter the computation methods to get only those that use rpm as the unit.
find(descObj, "CompuMethod", Units="rpm")
ans = 1×3 string
"CM_double_rpm" "CM_int16_rpm" "CM_single_rpm"
Add a Custom Computation Method
Create a computation method with a linear conversion type and add it to the ECU description object.
CompuMethod_1 = coder.asap2.CompuMethod; CompuMethod_1.Name = 'CompuMethod_1'; CompuMethod_1.ConversionType = "LINEAR"; CompuMethod_1.Coefficients = [2 3]; CompuMethod_1.LongIdentifier = "longIdentifierTest"; CompuMethod_1.Format = "%2.3"; CompuMethod_1.Units = "s"; add(descObj, CompuMethod_1);
Verify the properties of the newly added computation method.
get(descObj, "CompuMethod", "CompuMethod_1")
ans =
CompuMethod with properties:
Name: 'CompuMethod_1'
LongIdentifier: "longIdentifierTest"
Format: "%2.3"
Units: "s"
Coefficients: [2 3]
ConversionType: "LINEAR"
CompuVTabValues: [1×1 struct]
CustomData: ""
Update the conversion type to TAB_VERB and define the corresponding CompuVTabValues. Use the set function to modify properties of an existing description.
set(descObj, "CompuMethod", "CompuMethod_1", ConversionType="TAB_VERB"); set(descObj, "CompuMethod", "CompuMethod_1", CompuVTabValues=struct("Literals", ["false" "true"], "Values", [0 1]));
Verify the modified fields.
modifiedProp = get(descObj, "CompuMethod", "CompuMethod_1")
modifiedProp =
CompuMethod with properties:
Name: 'CompuMethod_1'
LongIdentifier: "longIdentifierTest"
Format: "%2.3"
Units: "s"
Coefficients: [2 3]
ConversionType: "TAB_VERB"
CompuVTabValues: [1×1 struct]
CustomData: ""
modifiedProp.CompuVTabValues
ans = struct with fields:
Literals: ["false" "true"]
Values: [0 1]
Add a Custom Characteristic
Create a characteristic that represents a calibration parameter and add it to the ECU description object. Then update its UpperLimit property.
param1 = coder.asap2.Characteristic; param1.Name = "Custom_parameter1"; param1.LongIdentifier = "longIdentifierParam"; param1.UpperLimit = 255; param1.LowerLimit = 0; add(descObj, param1); get(descObj, "Characteristic", "Custom_parameter1")
ans =
Characteristic with properties:
Name: "Custom_parameter1"
LongIdentifier: "longIdentifierParam"
Type: 'VALUE'
EcuAddress: '0x0000'
CompuMethodName: 'NO_COMPU_METHOD'
LowerLimit: 0
UpperLimit: 255
EcuAddressComment: ""
EcuAddressExtension: []
CalibrationAccess: 'Calibration'
DisplayIdentifier: ""
Format: ""
BitMask: []
AxisInfo: []
RecordLayout: ""
Dimensions: []
Export: 1
MaxRefresh: [1×1 struct]
SymbolLink: [1×1 struct]
CustomData: ""
set(descObj, "Characteristic", "Custom_parameter1", UpperLimit=128)
Add a Custom Measurement
Create a measurement that represents a signal and add it to the ECU description object. Then update its CalibrationAccess property.
signal1 = coder.asap2.Measurement; signal1.Name = "Custom_signal1"; signal1.LongIdentifier = "longIdentifierSignal"; signal1.UpperLimit = 255; signal1.LowerLimit = 0; add(descObj, signal1); get(descObj, "Measurement", "Custom_signal1")
ans =
Measurement with properties:
Name: "Custom_signal1"
LongIdentifier: "longIdentifierSignal"
DataType: 'UBYTE'
EcuAddress: '0x0000'
CompuMethodName: ""
LowerLimit: 0
UpperLimit: 255
Raster: [1×1 struct]
EcuAddressComment: ""
EcuAddressExtension: []
CalibrationAccess: 'NoCalibration'
DisplayIdentifier: ""
Format: ""
BitMask: []
Dimensions: []
Export: 1
MaskData: [1×1 struct]
MaxRefresh: [1×1 struct]
SymbolLink: [1×1 struct]
CustomData: ""
set(descObj, "Measurement", "Custom_signal1", CalibrationAccess="Calibration")
Add a Lookup Table Parameter
Create a lookup table parameter of type MAP with two axes. Each axis requires a name, computation method, maximum number of axis points, and axis type.
lutParam = coder.asap2.Characteristic; lutParam.Name = "custom_lookup_table"; lutParam.Type = "MAP"; axisData = coder.asap2.AxisInfo; axisData(1).Name = "BP3"; axisData(2).Name = "Bp4"; axisData(1).CompuMethodName = "ASAP2Demo_CM_double"; axisData(2).CompuMethodName = "ASAP2Demo_CM_double"; axisData(1).MaxAxisPoints = "3"; axisData(2).MaxAxisPoints = "3"; axisData(1).AxisType = "STD_AXIS"; axisData(2).AxisType = "STD_AXIS"; lutParam.AxisInfo = axisData; add(descObj, lutParam)
Export the Customized ASAP2 File
Export the ASAP2 file using the updated ECU description object. Verify that the generated file contains the custom computation method, characteristic, measurement, and lookup table parameter.
coder.asap2.export("ASAP2Demo", CustomEcuDescriptions=descObj);Remove Custom Descriptions
Remove the custom descriptions from the ECU description object.
delete(descObj, "CompuMethod", "CompuMethod_1"); delete(descObj, "Characteristic", "Custom_parameter1"); delete(descObj, "Measurement", "Custom_signal1");
Version History
Introduced in R2022b
