Analyze Memory Usage of Compilers

Embedded Coder^® Support Package for Infineon^® AURIX™ TC3x Microcontrollers requires third-party compilers tool chains to develop single-core and multicore application models. You can specify the Toolchain parameter in the Configuration parameters dialog box.

To view the memory allocated for different program regions on Infineon AURIX microcontrollers during the compilation process using compiler-specific commands, follow these steps:

1. Locate the executable and linkable format (ELF) file generated after building the Simulink^® model.

2. From the Windows Start menu, open a Command Prompt window.

3. Navigate to bin folder in the compiler installation path. For example, for the TASKING^® compiler, navigate to ...\TASKING\TriCore v6.3r1\ctc\bin.

4. To view the total memory usage by the compiler. run the command for your compiler, run the command for your compiler. The table lists supported third-party compiler toolchains, their installation paths, and the compiler-specific commands for analyzing memory usage. Replace model.elf file with the path to your generated ELF files.

   Compiler	Command	Command Full Path
   TASKING(R) VX-toolset for TriCore	elfsize.exe [options] <model.elf file>	…\TASKING\SmartCode v6.3r1\ctc\bin
   HighTec TriCore® Development Platform	llvm-size.exe [options] <model.elf files>	…\HighTec\toolchains\tricore\v4.9.4.1\bin>
   GCC for AURIX TriCore based on AURIX Development Studio	tricore-elf-size.exe [options] [model.elf file(s)]	…\tools\Compilers\tricore-gcc11\bin

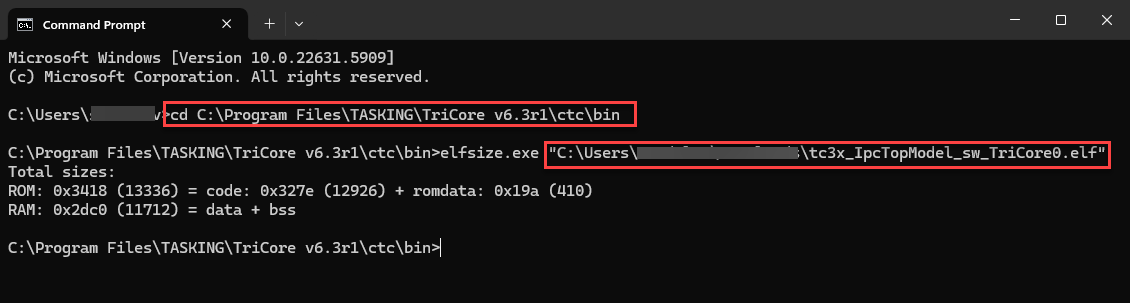

   For instance, this image shows the Command Prompt window with the commands for the TASKING compiler.

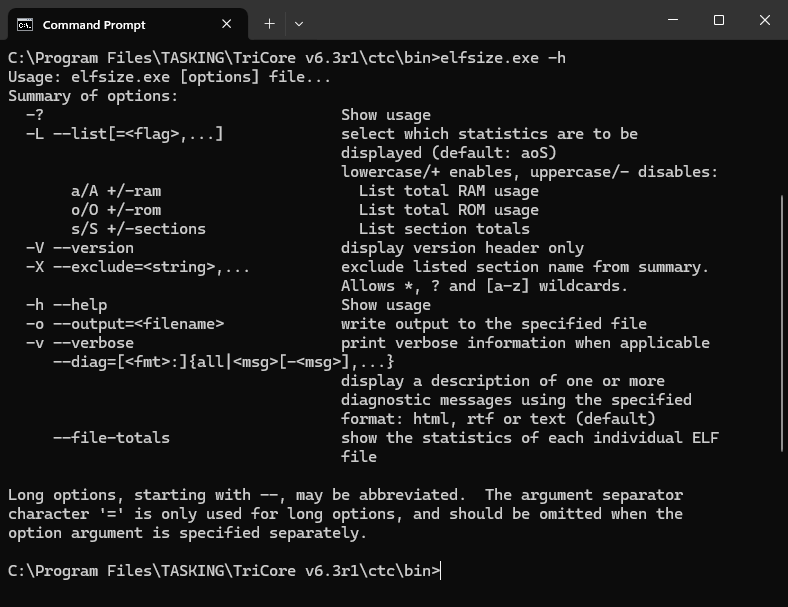

5. You can also explore other available compiler options by adding the -h flag to the compiler-specific command. For instance, list additional options for the TASKING compiler.

   elfsize.exe -h
