Generate C Code from Simulink Models

Open Model

This example shows you how to generate C code from a Simulink® model of a roll axis autopilot algorithm by using the Embedded Coder® product.

Use the Embedded Coder product to generate C or C++ code that is optimized for deployment on rapid-prototyping boards, embedded processors, or microprocessors. If you are new to Embedded Coder or your application code customization requirements are minimal, you can use graphical tools and default code configuration settings to quickly generate production-quality code. If you need to produce customized code for integration with existing external code or you want to meet code guidelines and standards, tooling is available to configure the code generator to meet requirements for interfacing, code appearance, packaging, and optimizations.

Generating and reviewing code for deployment to an embedded system can be as simple as preparing the model for code generation with the Quick Start tool. Then, with code tools accessible from the Simulink Editor, you can configure code interfaces, initiate code generation, and review the generated code.

Example Models

The tutorial uses example models RollAxisAutopilot and RollAxisAutopilotHarness. The model RollAxisAutopilot is configured to use a data code interface. For a comparison between data and service code interfaces and links to more information about data interfaces, see Choose Code Interface for Code Generation.

The models have been verified for simulation.

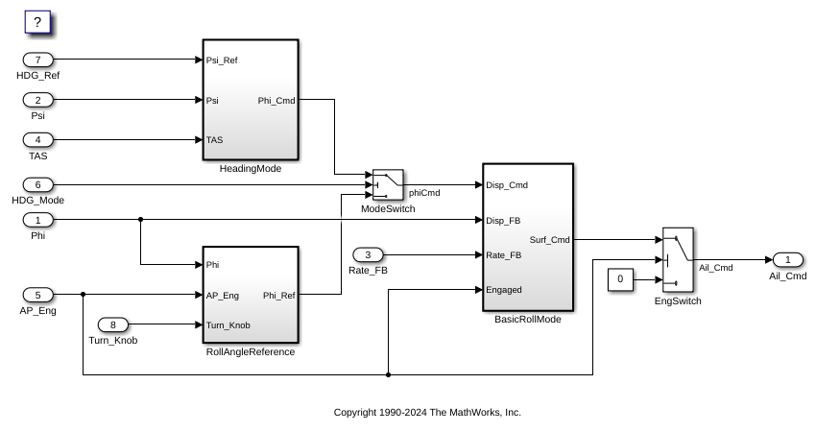

Open model RollAxisAutopilot.

open_system('RollAxisAutopilot.slx')

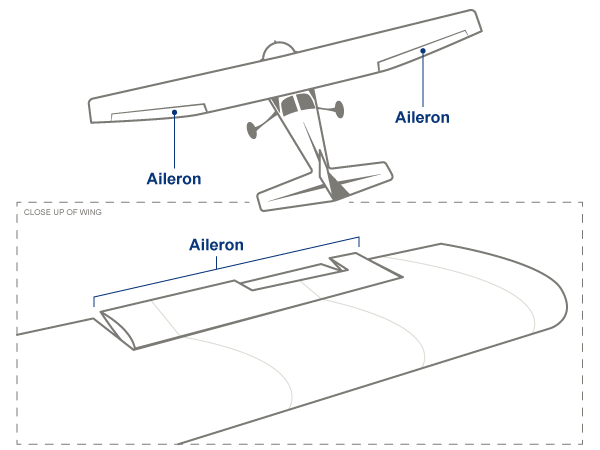

This model implements a basic roll axis autopilot algorithm, which controls the aileron position of an aircraft.

The model represents one component in the greater control system of an aircraft. Through the HDG_Mode signal, the control system places the model in one of two operating modes: roll attitude hold or heading hold. The RollAngleReference and HeadingMode subsystems calculate a roll attitude setpoint that supports one of the operating modes.

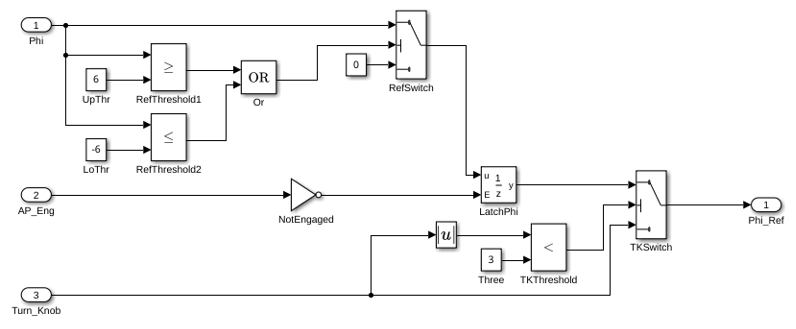

open_system('RollAxisAutopilot/RollAngleReference')

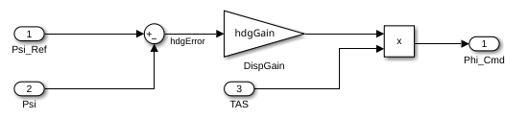

open_system('RollAxisAutopilot/HeadingMode')

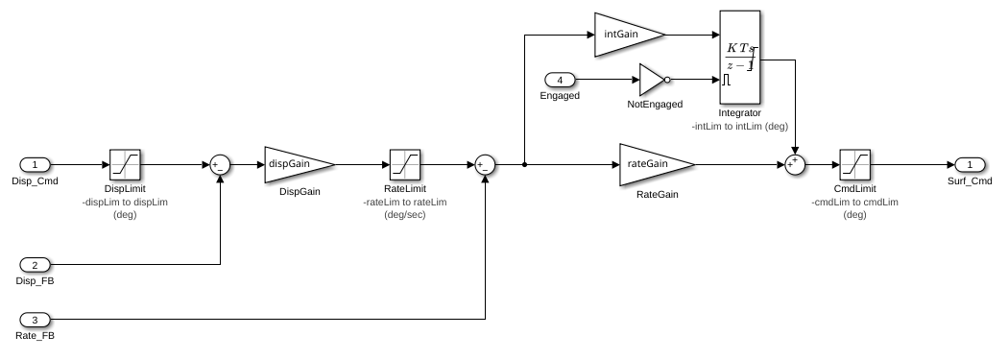

Then, the BasicRollMode subsystem, a PID controller, calculates an aileron position command based on the setpoint and on feedback that indicates the measured roll attitude and rate of change. The model is designed to operate at 40 Hz.

open_system('RollAxisAutopilot/BasicRollMode')

The tutorial uses model RollAxisAutopilotHarness to test RollAxisAutopilot.

You will learn how to:

  1. Generate code by using the Embedded Coder Quick Start tool.

  2. Configure the data interface.

  3. Configure a model parameter as a global variable for tuning during run time.

  4. Compare model simulation and generated code results for numeric equivalency.

  5. Deploy the generated code.

To start the tutorial, see Generate Code by Using Embedded Coder Quick Start.
