Discretetime, directform I transposed filter
hd = dfilt.df1t(b,a)
hd = dfilt.df1t
hd = dfilt.df1t(b,a)
returns
a discretetime, directform I transposed filter object hd
,
with numerator coefficients b
and denominator coefficients a
.
Make this filter a fixedpoint or singleprecision filter by
changing the value of the Arithmetic
property
for the filter hd
as follows:
To change to singleprecision filtering, enter
set(hd,'arithmetic','single');
To change to fixedpoint filtering, enter
set(hd,'arithmetic','fixed');
For more information about the property Arithmetic
,
refer to Arithmetic.
hd = dfilt.df1t
returns
a default, discretetime, directform I transposed filter object hd
,
with b
=1 and a
=1. This filter
passes the input through to the output unchanged.
The leading coefficient of the denominator a(1)
cannot
be 0. To allow you to change the arithmetic setting to fixed
or single
, a(1)
must
be equal to 1.

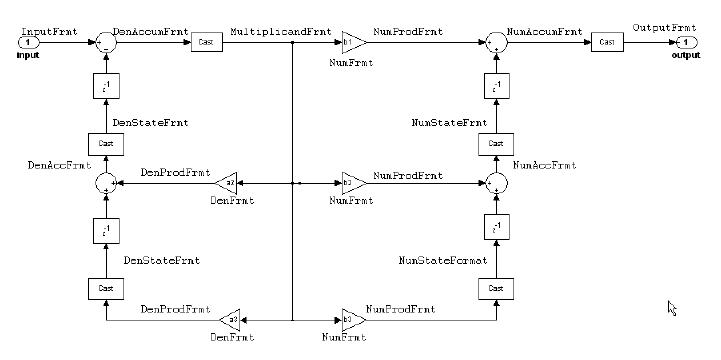

The following figure shows the signal flow for the transposed
directform I filter implemented by dfilt.df1t
.
To help you see how the filter processes the coefficients, input,
and states of the filter, as well as numerical operations, the figure
includes the locations of the formatting objects within the signal
flow.
To help you understand where and how the filter performs fixedpoint arithmetic during filtering, the figure shows various labels associated with data and functional elements in the filter. The following table describes each label in the signal flow and relates the label to the filter properties that are associated with it.
The labels use a common format — a prefix followed by the letters “frmt” (format). In this use, “frmt” means the word length and fraction length associated with the filter part referred to by the prefix.
For example, the InputFrmt label refers to the word length and
fraction length used to interpret the data input to the filter. The
format properties InputWordLength
and InputFracLength
(as
shown in the table) store the word length and the fraction length
in bits. Or consider NumFrmt, which refers to the word and fraction
lengths (CoeffWordLength
, NumFracLength
)
associated with representing filter numerator coefficients.
Signal Flow Label  Corresponding Word Length Property  Corresponding Fraction Length Property  Related Properties

DenAccumFrmt



DenFrmt



DenProdFrmt



DenStateFrmt



InputFrmt

 None
Multiplicandfrmt



NumAccumFrmt



NumFrmt



NumProdFrmt



NumStateFrmt



OutputFrmt



Most important is the label position in the diagram, which identifies where the format applies.
As one example, look at the label DenProdFrmt, which always
follows a denominator coefficient multiplication element in the signal
flow. The label indicates that denominator coefficients leave the
multiplication element with the word length and fraction length associated
with product operations that include denominator coefficients. From
reviewing the table, you see that the DenProdFrmt refers to the properties ProdWordLength
, ProductMode
and DenProdFracLength
that
fully define the denominator format after multiply (or product) operations.
In this table you see the properties associated with df1t implementation
of dfilt
objects.
The table lists all the properties that a filter can have. Many of the properties are dynamic, meaning they exist only in response to the settings of other properties. You might not see all of the listed properties all the time. To view all the properties for a filter at any time, use
get(hd)
hd
is
a filter.For further information about the properties of this filter
or any dfilt
object, refer to FixedPoint Filter Properties.
Property Name  Brief Description

 Determines how the accumulator outputs stored values.
Choose from full precision (
 Sets the word length used to store data in the accumulator/buffer.
 Defines the arithmetic the filter uses. Gives you the
options
 Specifies whether to cast numeric data to the appropriate accumulator format (as shown in the signal flow diagrams) before performing sum operations.
 Specifies whether the filter automatically chooses the
proper fraction length to represent filter coefficients without overflowing.
Turning this off by setting the value to
 Specifies the word length to apply to filter coefficients.
 Specifies the fraction length used to interpret data
in the accumulator used to hold the results of sum operations. You
can change the value for this property when you set
 Set the fraction length the filter uses to interpret
denominator coefficients.
 Holds the denominator coefficients for the filter.
 Specifies how the filter algorithm interprets the results
of product operations involving denominator coefficients. You can
change this property value when you set
 Specifies the fraction length used to interpret the states associated with denominator coefficients in the filter.
 Describes the signal flow for the filter object, including all of the active elements that perform operations during filtering — gains, delays, sums, products, and input/output.
 Specifies the fraction length the filter uses to interpret input data.
 Specifies the word length applied to interpret input data.
 Sets the fraction length for values (multiplicands) used in multiply operations in the filter.
 Sets the word length applied to the values input to a multiply operation (the multiplicands).
 Specifies how the filter algorithm interprets the results
of addition operations involving numerator coefficients. You can change
the value of this property after you set
 Holds the numerator coefficient values for the filter.
 Sets the fraction length used to interpret the value of numerator coefficients.
 Specifies how the filter algorithm interprets the results
of product operations involving numerator coefficients. Available
to be changed when you set
 For IIR filters, this defines the binary point location applied to the numerator states of the filter. Specifies the fraction length used to interpret the states associated with numerator coefficient operations in the filter.
 Determines how the filter interprets the filter output
data. You can change the value of
 Sets the mode the filter uses to scale the filtered data for output. You have the following choices:

 Determines the word length used for the output data.
 Sets the mode used to respond to overflow conditions
in fixedpoint arithmetic. Choose from either
 Determines how the filter handles the output of product
operations. Choose from full precision (
 Specifies the word length to use for multiplication operation
results. This property becomes writable (you can change the value)
when you set
 Specifies whether to reset the filter states and memory
before each filtering operation. Lets you decide whether your filter
retains states from previous filtering runs.
 Sets the mode the filter uses to quantize numeric values when the values lie between representable values for the data format (word and fraction lengths).
The choice you make affects only the accumulator and output arithmetic. Coefficient and input arithmetic always round. Finally, products never overflow — they maintain full precision.
 Specifies whether the filter uses signed or unsigned fixedpoint coefficients. Only coefficients reflect this property setting.
 Setting autoscaling for filter states to
 This property contains the filter states before, during, and after filter operations. States act as filter memory between filtering runs or sessions.
 Sets the word length used to represent the filter states.
Specify a secondorder directform I transposed filter structure
for a dfilt
object, hd
, with
the following code:
b = [0.3 0.6 0.3]; a = [1 0 0.2]; hd = dfilt.df1t(b,a); % Convert filter to singleprecision arithmetic set(hd,'arithmetic','single')
