designDDC

R2026b

Design digital downconverter filter cascade

Since R2026b

Syntax

H = designDDC

H = designDDC(Name=Value)

Description

H = designDDC designs a 3-stage digital downconverter filter cascade with default specifications and returns a dsp.DDC System object™. The default design uses decimation factors of [25 2 2], a passband ripple of 0.1 dB, a stopband attenuation of 60 dB, and a bandwidth of 90% of the output Nyquist rate.

H = designDDC(Name=Value) designs a DDC filter cascade with properties set using one or more name-value arguments. For example, designDDC(DecimationFactors=[1365 3],Bandwidth=0.01,StopbandAttenuation=80) designs a 2-stage DDC with a CIC decimation factor of 1365, a compensating FIR decimation factor of 3, and 80 dB of stopband attenuation.

Unless you specify the FilterOrders argument, the function uses minimum order design. Once you specify FilterOrders, the function uses the specified order design.

Examples

Design a DDC with Default Settings

Design a digital downconverter using default specifications. Display the resolved design parameters and visualize the filter response.

Design a 3-stage DDC with default specifications and display the resolved design parameters.

H = designDDC(Verbose=true)

designDDC(DecimationFactors=[25 2 2], Bandwidth=0.018000000000000002, PassbandRipple=0.1, StopbandAttenuation=60, InputSampleRate="normalized")

H =
  dsp.DDC with properties:

    NormalizedFrequency: true
             Oscillator: "Sine wave"
        CenterFrequency: 0
                 Filter: [1×1 dsp.FilterCascade]
          MixerDataType: "Same as input"

Visualize the frequency response of the filter cascade.

filterAnalyzer(H.Filter)

Design a 2-Stage DDC and Downconvert a Signal

Design a 2-stage dsp.DDC object with custom specifications. Use the resulting object to downconvert a signal from 50 kHz to baseband.

Design a 2-stage DDC with a total decimation factor of 4095, operating at a 1 MHz input sample rate.

Fs = 1e6;
M = [1365 3];
H = designDDC(DecimationFactors=M, ...
    InputSampleRate=Fs, ...
    StopbandAttenuation=80, ...
    Verbose=true);

designDDC(DecimationFactors=[1365 3], Bandwidth=219.7802197802198, PassbandRipple=0.1, StopbandAttenuation=80, InputSampleRate=1000000)

Set the center frequency to 50 kHz. Generate a test signal containing a tone at 50 kHz and downconvert it to baseband.

H.CenterFrequency = 50e3;
t = (0:4095*1000-1)'/Fs;
x = cos(2*pi*50e3*t);
y = H(x);

Visualize the spectrum before and after downconversion.

FsOut = Fs/prod(M);
window = hamming(floor(length(x)/10));
figure
pwelch(x,window,[],[],Fs,"centered")

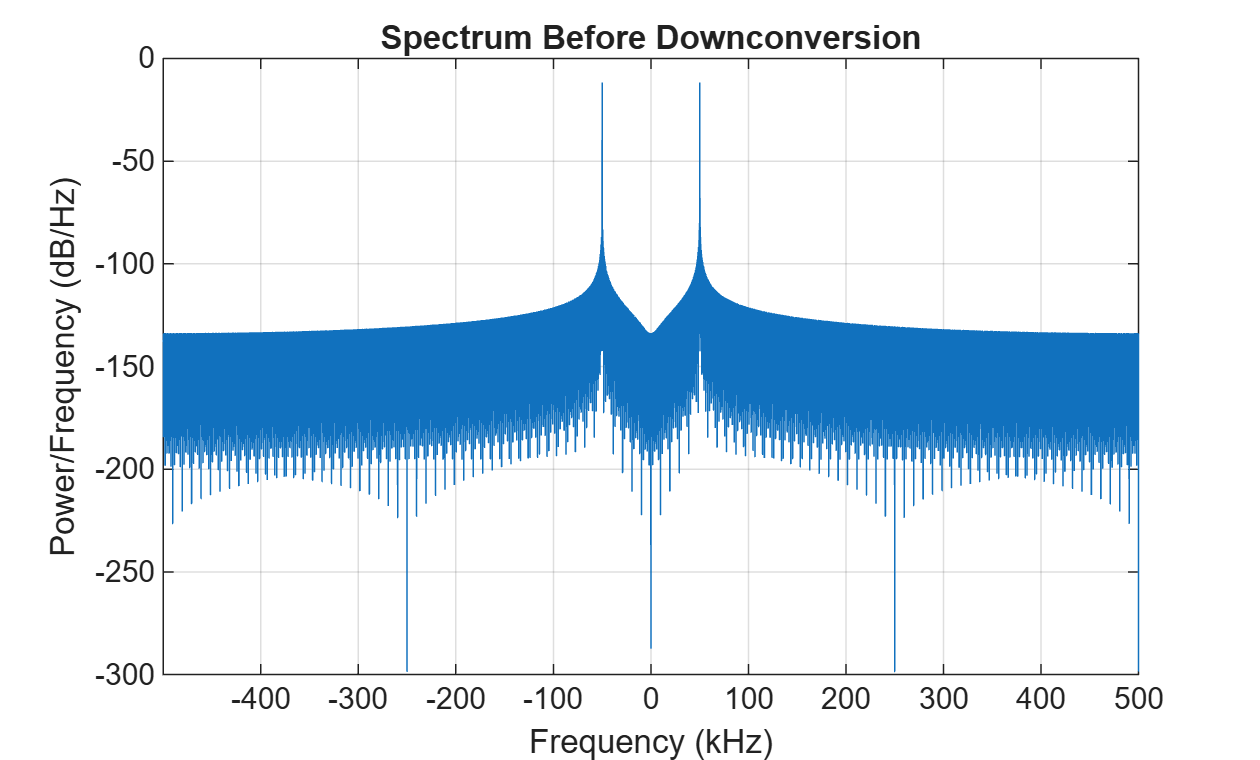

title("Spectrum Before Downconversion")

window = hamming(floor(length(y)/10));
figure
pwelch(y,window,[],[],FsOut,"centered")

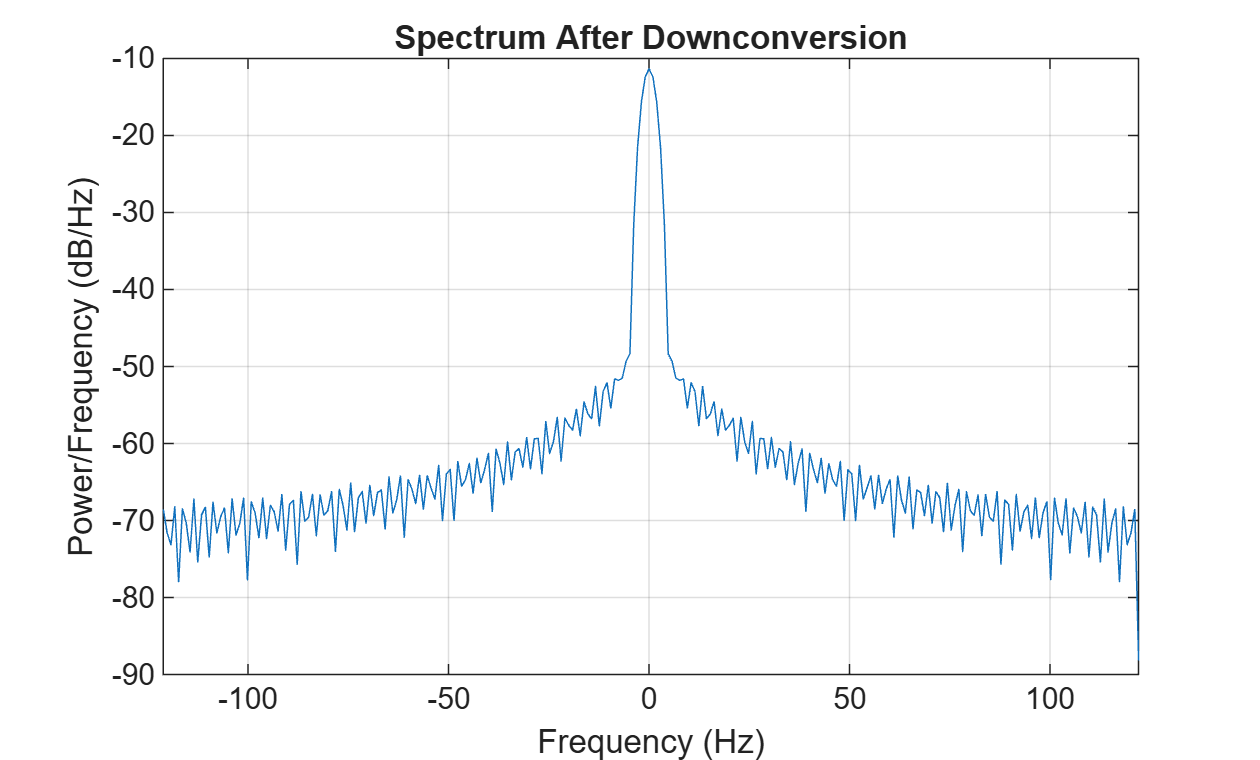

title("Spectrum After Downconversion")

Design a 3-Stage DDC with an Absolute Sample Rate

Design a 3-stage dsp.DDC object at a specific input sample rate and inspect the filter cascade.

Design a 3-stage DDC at 1 MHz with decimation factors [631 7 2].

M = [631 7 2];
H = designDDC(DecimationFactors=M, InputSampleRate=1e6, Verbose=true);

designDDC(DecimationFactors=[631 7 2], Bandwidth=101.87910346388952, PassbandRipple=0.1, StopbandAttenuation=60, InputSampleRate=1000000)

View the filter cascade information and frequency response.

info(H)

ans =
    'Digital Down Converter
     ----------------------------
     Input sample rate                    : 1 MHz
     Oscillator type                      : Sine wave
     Oscillator center frequency          : 0 Hz

     ----------------------------------------------------
     Filter type           : dsp.FilterCascade
     Rate conversion ratio : 1:8834

     Discrete-Time Filter Cascade
     ----------------------------
     Number of stages: 4
     Stage cloning: enabled
     ----------------------------
     Stage1: dsp.CICDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure    : Cascaded Integrator-Comb Decimator
     Decimation Factor   : 631
     Differential Delay  : 1
     Number of Sections  : 3
     Stable              : Yes
     Linear Phase        : Yes (Type 1)

     Stage2: double
     -------
     Stage3: dsp.FIRDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure   : Direct-Form FIR Polyphase Decimator
     Decimation Factor  : 7
     Polyphase Length   : 7
     Filter Length      : 43
     Stable             : Yes
     Linear Phase       : Yes (Type 1)

     Stage4: dsp.FIRDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure   : Direct-Form FIR Polyphase Decimator
     Decimation Factor  : 2
     Polyphase Length   : 38
     Filter Length      : 75
     Stable             : Yes
     Linear Phase       : Yes (Type 1)



     '

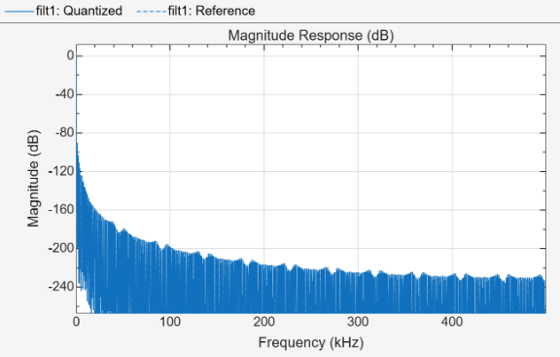

filterAnalyzer(H.Filter)

Design a DDC with Specified Filter Orders

Design a dsp.DDC object by specifying the filter orders for each stage instead of using minimum order design.

Design a 2-stage DDC with a CIC section count of 7 and a compensator FIR order of 50.

H = designDDC(DecimationFactors=[120 7], FilterOrders=[7 50], Verbose=true);

designDDC(DecimationFactors=[120 7], Bandwidth=0.002142857142857143, FilterOrders=[7 50], InputSampleRate="normalized")

Display the filter cascade information.

info(H)

ans =
    'Digital Down Converter
     ----------------------------
     Input sample rate                    : normalized
     Oscillator type                      : Sine wave
     Oscillator center frequency          : 0 (normalized)

     ----------------------------------------------------
     Filter type           : dsp.FilterCascade
     Rate conversion ratio : 1:840

     Discrete-Time Filter Cascade
     ----------------------------
     Number of stages: 3
     Stage cloning: enabled
     ----------------------------
     Stage1: dsp.CICDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure    : Cascaded Integrator-Comb Decimator
     Decimation Factor   : 120
     Differential Delay  : 1
     Number of Sections  : 7
     Stable              : Yes
     Linear Phase        : Yes (Type 2)

     Stage2: double
     -------
     Stage3: dsp.FIRDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure   : Direct-Form FIR Polyphase Decimator
     Decimation Factor  : 7
     Polyphase Length   : 8
     Filter Length      : 51
     Stable             : Yes
     Linear Phase       : Yes (Type 1)



     '

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: designDDC(DecimationFactors=[25 2 2],Bandwidth=0.009,StopbandAttenuation=60)

DecimationFactors — Decimation factors for each stage

1-by-2 vector of positive integers | 1-by-3 vector of positive integers

Decimation factors for each filter stage, specified as a 1-by-2 or 1-by-3 vector of positive integers. The first element is the CIC decimation factor. The second element is the CIC compensator FIR decimation factor. For a 3-stage design, the third element is the auxiliary FIR decimation factor, which must be 1 or 2.

When you specify a 1-by-2 vector, the function designs a 2-stage cascade (where the stages are the CIC and the compensator). When you specify a 1-by-3 vector, the function designs a 3-stage cascade (where the stages are the CIC, compensator, and auxiliary).

The default depends on the number of stages: [25 2 2] for a 3-stage design, or [50 2] for a 2-stage design when FilterOrders is specified as a 1-by-2 vector.

Data Types: double

Bandwidth — One-sided signal bandwidth

positive scalar

One-sided signal bandwidth, specified as a positive scalar. This value is the passband edge frequency of the equivalent single-stage lowpass filter.

The bandwidth must be less than the maximum bandwidth, which equals 1/prod(DecimationFactors) in normalized frequency mode or InputSampleRate/prod(DecimationFactors) in absolute frequency mode.

When you do not specify this argument, the function defaults to 90% of the maximum bandwidth.

Data Types: double

StopbandFrequency — Stopband edge frequency

positive scalar

Stopband edge frequency of the equivalent single-stage lowpass filter, specified as a positive scalar. When you do not specify this argument, the stopband frequency defaults to the Nyquist rate of the output sample rate.

Data Types: double

FilterOrders — Filter orders for each stage

1-by-2 vector of positive integers | 1-by-3 vector of positive integers

Filter orders for each stage, specified as a 1-by-2 or 1-by-3 vector of positive integers. The first element specifies the number of CIC sections. The subsequent elements specify the FIR filter orders for the compensator and optional auxiliary stages.

The length of FilterOrders must match the length of DecimationFactors.

Specifying this argument switches the design to specified order mode. You cannot specify this argument if you specify PassbandRipple or StopbandAttenuation.

Data Types: double

PassbandRipple — Maximum passband ripple

0.1 (default) | positive scalar

Maximum allowable passband ripple in dB, specified as a positive scalar. This argument applies only in minimum order design mode.

You cannot specify this argument if you specify FilterOrders.

Data Types: double

StopbandAttenuation — Minimum stopband attenuation

60 (default) | positive scalar

Minimum required stopband attenuation in dB, specified as a positive scalar. This argument applies only in minimum order design mode.

You cannot specify this argument if you specify FilterOrders.

Data Types: double

InputSampleRate — Input sample rate

"normalized" (default) | positive scalar

Input sample rate, specified as one of these options:

• "normalized" — Use normalized frequency. All frequency specifications are in normalized units in the range (0, 1).

• Positive scalar — Input sample rate in hertz. All frequency specifications are in hertz.

Data Types: double | char | string

Verbose — Option to display resolved design specifications

false (default) | true

Option to display the resolved design specifications, specified as one of these:

• false — The function does not display the design specifications.

• true — The function prints the complete function call including the default values of all arguments that were not explicitly specified. Use this argument to see all the values used by the function to design the filter cascade.

Data Types: logical

Output Arguments

H — Digital downconverter

dsp.DDC

Digital downconverter, returned as a dsp.DDC System object with these settings:

• Filter — A dsp.FilterCascade containing the designed CIC decimator, gain normalization scalar, CIC compensator FIR decimator, and optional auxiliary FIR decimator.

• CenterFrequency — Set to 0.

• InputSampleRate — Set to match the specified input sample rate.

Use the info object function or filterAnalyzer to inspect the designed filter cascade.

Algorithms

DDC Filter Cascade Structure

The designDDC function designs a multistage decimation filter cascade equivalent to a single-stage lowpass FIR filter followed by a rate-change element. The cascade consists of:

1. CIC Decimator — Performs the bulk of the decimation at a low computational cost.

2. Gain Normalization — A scalar that compensates for the CIC gain.

3. CIC Compensator FIR Decimator — Compensates for the CIC passband droop and provides additional decimation.

4. Auxiliary FIR Decimator (3-stage only) — Provides additional filtering and decimation by a factor of 1 or 2.

The following diagram shows the 3-stage filter cascade structure. For a 2-stage design, the auxiliary FIR decimator is not present.

The CIC decimator performs the bulk of the rate change with decimation factor M1. The CIC compensator FIR decimator corrects the passband droop introduced by the CIC stage and decimates by a factor of M2. The auxiliary FIR decimator, present only in 3-stage designs, provides additional filtering and decimates by a factor of M3 (1 or 2). The elements of the DecimationFactors argument correspond to [M1 M2] for a 2-stage design or [M1 M2 M3] for a 3-stage design.

Design Modes

The function supports two design modes:

• Minimum order (default) — The function determines the filter orders to meet the specified PassbandRipple and StopbandAttenuation tolerances.

• Specified order — You specify the filter orders for all stages using the FilterOrders argument. The function designs the filters with the given orders without regard to passband ripple or stopband attenuation constraints.

Version History

Introduced in R2026b
