Analyze Ambisonic Decoders

In this example, you derive objective metrics to analyze the performance of an ambisonic decoder.

You consider the following metrics:

• Amplitude spread.

• Energy spread.

• Velocity vector magnitude and direction.

• Energy vector magnitude and direction.

• Apparent source width.

You use these metrics to understand the effect of loudspeaker placement on ambisonic decoding, and to compare different ambisonic decoder algorithms.

T-Design Loudspeaker Setup

You start your analysis with an (optimal) t-design loudspeaker setup. T-designs ensure that the loudspeakers are evenly distributed over the surface of a sphere, providing uniform coverage and accurate spatial audio reproduction.

Get the cartesian coordinates of the t-design.

loudspeakerXYZ = getTDesign();

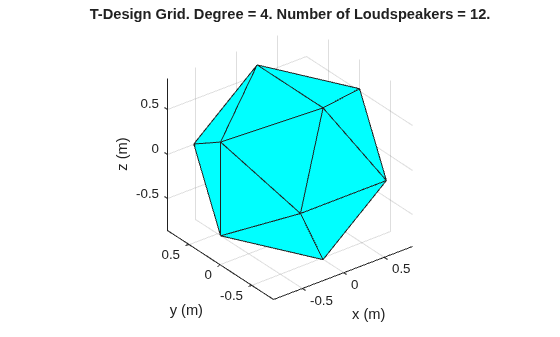

Plot the loudspeaker locations in space.

figure
k1 = convhull(loudspeakerXYZ(:,1),loudspeakerXYZ(:,2),loudspeakerXYZ(:,3),Simplify=true);
trisurf(k1,loudspeakerXYZ(:,1),loudspeakerXYZ(:,2),loudspeakerXYZ(:,3),FaceColor="cyan")
axis equal
xlabel("x (m)")
ylabel("y (m)")
zlabel("z (m)")

Convert the loudspeaker cartesian coordinates to spherical coordinates (in degrees).

loudspeakerSph = zeros(size(loudspeakerXYZ,1),2);
[loudspeakerSph(:,1),loudspeakerSph(:,2)] = cart2sph(loudspeakerXYZ(:,1),loudspeakerXYZ(:,2),loudspeakerXYZ(:,3));
loudspeakerSph = 180*loudspeakerSph/pi;

The sampling ambisonic decoder (SAD) algorithm is optimal for t-designs [1]. Design a SAD decoding matrix. Assume an ambisonic order of 2.

order = 2;
D = ambisonicDecoderMatrix(order,loudspeakerSph,Decoder="sad");

In the next few sections, you explore metrics used to analyze the performance of the decoder with this loudspeaker setup.

Amplitude Range

Assume that the signal from a sound source coming from a certain direction is encoded into an ambisonic signal, and then decoded onto the loudspeakers. The amplitude, or coherent sum of the decoded signal is given by:

$\mathit{A}={\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}$,

where ${\mathit{G}}_{\mathit{l}}$ is the decoded gain at the l-th loudspeaker.

A "good" decoder will yield a stable coherent sum at different source directions.

Derive the decoded amplitude for different source directions.

Start by creating a grid covering a range of azimuth and elevation ranges. Use an angular resolution of 5 degrees.

azimuthRange = [-180,180];
azimuthResolution = 5;
elevationRange = [-90 90];
elevationResolution = 5;

azimuthValues = azimuthRange(1):azimuthResolution:azimuthRange(2);
elevationValues = elevationRange(1):elevationResolution:elevationRange(2);
[azimuthGrid,elevationGrid] = meshgrid(azimuthValues, elevationValues);
sources = [azimuthGrid(:) elevationGrid(:)];

size(sources)

ans = 1×2

        2701           2

Create an ambisonic encoder matrix for all source directions.

E = ambisonicEncoderMatrix(order,sources);

Decode the sources.

Y = E*D;
size(Y)

ans = 1×2

        2701          12

Each row in Y holds the loudspeaker gains associated with one source direction.

Compute and normalize the decoded amplitude for every source direction.

P = sum(Y,2);
P = P./max(abs(P));

Compute the range of the amplitudes. Notice the range is tiny, which indicates that this decoder is performing well.

fprintf("Max amplitude: %f\n",max(P))

Max amplitude: 1.000000

fprintf("Min amplitude: %f\n",min(P))

Min amplitude: 1.000000

fprintf("Amplitude dynamic range: %f\n",max(P)-min(P))

Amplitude dynamic range: 0.000000

Visualize the amplitude at different source directions. Include the locations of the loudspeakers in the plot for reference.

figure;
plotMetric(P, "Amplitude Range", azimuthValues,elevationValues,loudspeakerSph);

Energy Range

The energy metric is similar to the amplitude metric and is considered a superior criterion for evaluating decoders [2].

For a specific source direction, the energy is defined as:

$\mathit{E}={\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}^2$.

A "good" decoder yields stable energy for all source directions.

Compute and normalize the decoded energy for every source direction.

E = sum(Y.^2,2);
ENorm = E./max(E);

Compute the range of the energy over all source directions.

fprintf("Max amplitude: %f\n",max(ENorm))

Max amplitude: 1.000000

fprintf("Min amplitude: %f\n",min(ENorm))

Min amplitude: 1.000000

fprintf("Amplitude dynamic range: %f\n",max(ENorm)-min(ENorm))

Amplitude dynamic range: 0.000000

Visualize the amplitude at different source directions.

figure;

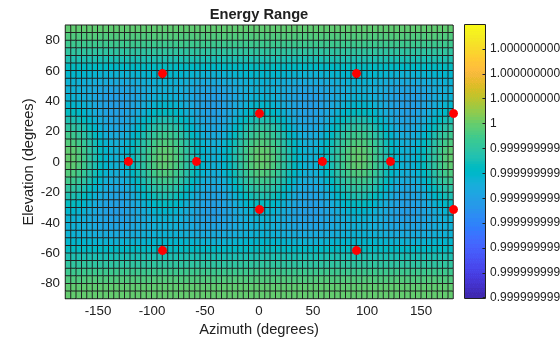

plotMetric(ENorm, "Energy Range", azimuthValues,elevationValues,loudspeakerSph);

Velocity Vector Magnitude

The velocity vector is a popular metric for decoder accuracy at low frequencies [2].

The velocity vector is defined as:

${\mathit{r}}_{\mathit{V}}=\frac{{\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}.{\mathit{u}}_{\mathit{l}}}{{\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}}$,

where ${\mathit{u}}_{\mathit{l}}$ is the unit vector pointing to speaker l.

Compute and normalize the magnitude of the velocity vector at all source directions.

rV = (Y*loudspeakerXYZ)./(P*ones(1,3));
rVMag = sqrt(sum(rV.^2,2));
rVMag = rVMag./max(rVMag);

Compute the range of the vector magnitude over all source directions.

fprintf("Max amplitude: %f\n",max(rVMag))

Max amplitude: 1.000000

fprintf("Min amplitude: %f\n",min(rVMag))

Min amplitude: 1.000000

fprintf("Amplitude dynamic range: %f\n",max(rVMag)-min(rVMag))

Amplitude dynamic range: 0.000000

Visualize the velocity vector magnitude at different source directions.

figure;
plotMetric(rVMag, "Velocity Vector Magnitude", azimuthValues,elevationValues,loudspeakerSph);

Velocity Vector Angular Error

The direction of the velocity vector must match the source direction.

The angular error between the source direction and the velocity vector direction is a popular quality metric at low frequencies [2].

Convert the source directions from spherical coordinates to cartesian coordinates.

sourceXYZ = zeros(size(sources,1),3);
[sourceXYZ(:,1),sourceXYZ(:,2),sourceXYZ(:,3)] = sph2cart(pi*sources(:,1)/180,pi*sources(:,2)/180,1);

Compute the angular error, in degrees.

U_rV = rV./(sqrt(sum(rV.^2,2))*ones(1,3));
dot_rV = sum(U_rV.*sourceXYZ,2);
dot_rV(dot_rV>1) = 1;
dot_rV(dot_rV<-1) = -1;
rVAng = acos(dot_rV)*180/pi;

Display the range of the velocity vector angular error over all source directions.

fprintf("Max angular error (degrees): %f\n",max(rVAng))

Max angular error (degrees): 0.000001

fprintf("Min angular error (degrees): %f\n",min(rVAng))

Min angular error (degrees): 0.000000

fprintf("Amplitude dynamic range (degrees): %f\n",max(rVAng)-min(rVAng))

Amplitude dynamic range (degrees): 0.000001

Visualize the angular error at different source directions.

figure;

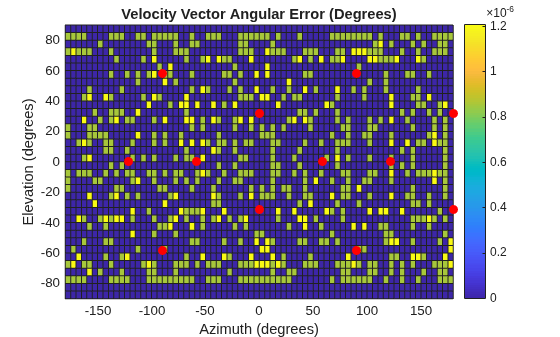

plotMetric(rVAng, "Velocity Vector Angular Error (Degrees)", azimuthValues,elevationValues,loudspeakerSph);

Energy Vector Magnitude

The energy vector is a better metric compared to the velocity vector at high frequencies [2].

The energy vector is defined as:

${\mathit{r}}_{\mathit{E}}=\frac{{\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}^2.{\mathit{u}}_{\mathit{l}}}{{\sum }_{\mathit{l}=0}^{\mathit{L}-1}{\mathit{G}}_{\mathit{l}}^2}$.

Compute and normalize the magnitude of the energy vector at all source directions.

rE = (Y.^2*loudspeakerXYZ)./(E*ones(1,3));
rEMag = sqrt(sum(rE.^2,2));
rEMagNorm = rEMag./max(rEMag);

Compute the range of the vector magnitude over all source directions.

fprintf("Max amplitude: %f\n",max(rEMagNorm))

Max amplitude: 1.000000

fprintf("Min amplitude: %f\n",min(rEMagNorm))

Min amplitude: 1.000000

fprintf("Amplitude dynamic range: %f\n",max(rEMagNorm)-min(rEMagNorm))

Amplitude dynamic range: 0.000000

Visualize the energy vector magnitude at different source directions.

figure;

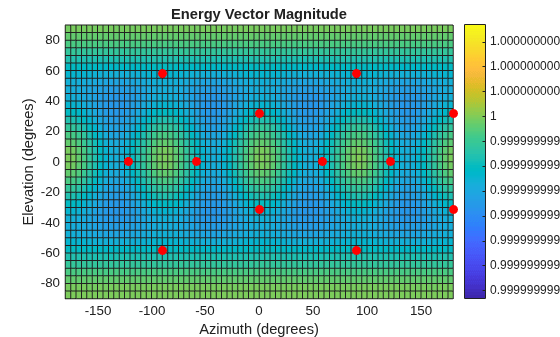

plotMetric(rEMagNorm, "Energy Vector Magnitude", azimuthValues,elevationValues,loudspeakerSph);

Energy Vector Angular Error

The energy vector angular error is preferred to the velocity vector error at high frequencies [2].

Compute the angular error, in degrees.

U_rE = rE./(sqrt(sum(rE.^2,2))*ones(1,3));
dot_rE = sum(U_rE.*sourceXYZ,2);
dot_rE(dot_rE>1) = 1;
dot_rE(dot_rE<-1) = -1;
rEAng = acos(dot_rE)*180/pi;

Compute the range of the velocity vector angular error over all source directions.

fprintf("Max angular error (degrees): %f\n",max(rEAng))

Max angular error (degrees): 0.000001

fprintf("Min angular error (degrees): %f\n",min(rEAng))

Min angular error (degrees): 0.000000

fprintf("Amplitude dynamic range (degrees): %f\n",max(rEAng)-min(rEAng))

Amplitude dynamic range (degrees): 0.000001

Visualize the angular error at different source directions.

figure;

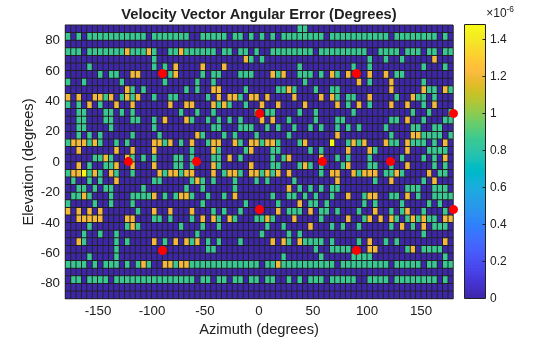

plotMetric(rEAng, "Velocity Vector Angular Error (Degrees)", azimuthValues,elevationValues,loudspeakerSph);

Apparent Source Width

Apparent source width (ASW) refers to the perceived spatial extent of a sound source. It quantifies how wide or narrow a sound appears to a listener.

The apparent source width is defined as (equation 2.11 in [1]):

$$\mathrm{ASW}=\frac{5}{8}.2.\arccos \left(\Vert {\mathit{r}}_{\mathit{E}}\Vert \right)$$.

Compute ASW for all source directions.

ASW = (5/8)*(180/pi)*2*acos(rEMag);

Compute the ASW range over all source directions.

fprintf("Max ASW (degrees): %f\n",max(ASW))

Max ASW (degrees): 65.630938

fprintf("Min ASW (degrees): %f\n",min(ASW))

Min ASW (degrees): 65.630938

fprintf("ASW dynamic range (degrees): %f\n",max(ASW)-min(ASW))

ASW dynamic range (degrees): 0.000000

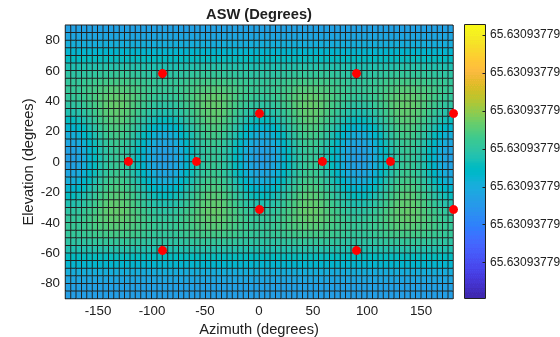

Visualize ASW for all source directions.

figure;
plotMetric(ASW, "ASW (Degrees)", azimuthValues,elevationValues,loudspeakerSph);

Dodecahedron Loudspeaker Setup

You have verified that the SAD decoder is optimal for a t-design loudspeaker setup.

Next, you verify the performance of the SAD decoder for a dodecahedron loudspeaker setup.

Define the loudspeaker locations.

loudspeakerSph = getDodecahedron;

Design the ambisonic decoder for this loudspeaker setup. Assume an order of 3.

order = 3;
D = ambisonicDecoderMatrix(order, loudspeakerSph, Decoder="SAD");

In this section, you use the helper object ambisonicAnalyzer. The object encapsulates the metric computations from the previous section.

Define the ambisonic analyzer.

analyzer = ambisonicAnalyzer(Loudspeakers=loudspeakerSph,...
                             DecoderMatrix = D,...
                             AzimuthRange = [-180,180],...
                             AzimuthStep = 5,...
                             ElevationRange = [-90 90],...
                             ElevationStep = 5);

You can execute the following object methods to perform analysis similar to the previous section:

• showLoudspeakers: Plot the loudspeaker setup.

• amplitudeRange: Analyze amplitude range.

• energyRange: Analyze energy range.

• velocityVectorMagnitude: Analyze the velocity vector magnitude.

• velocityVectorAngularError: Analyze the velocity vector angular error.

• energyVectorMagnitude: Analyze the energy vector magnitude.

• energyVectorAngularError: Analyze the energy vector angular error.

• apparentSourceWidth: Analyze ASW.

Analyze SAD

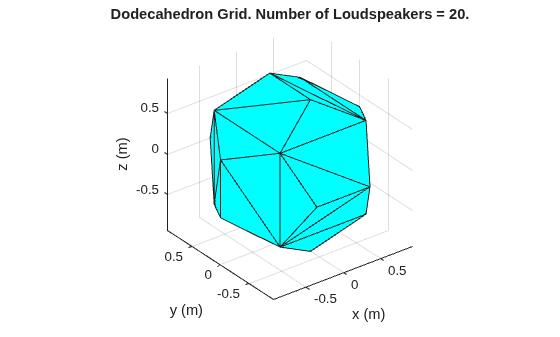

Show the non-uniform loudspeaker setup.

figure;
showLoudspeakers(analyzer)

View the energy vector magnitude for different source directions.

figure;

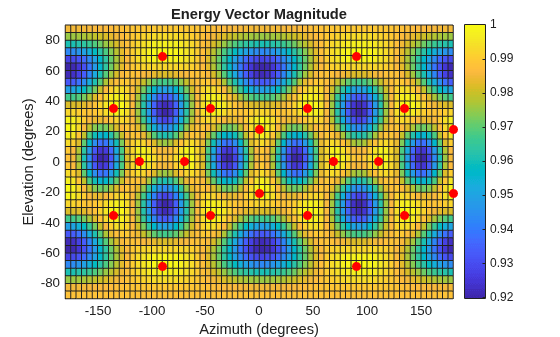

energyVectorMagnitude(analyzer)

Energy Vector Magnitude min: 0.919767
Energy Vector Magnitude max: 1.000000
Energy Vector Magnitude dynamic range: 0.080233

Notice that the vector magnitude shows higher variance with the source direction compared to the optimal t-design loudspeaker layout. The vector magnitude is maximized at the directions of the loudspeakers.

View the energy vector angular error for different source directions.

figure;

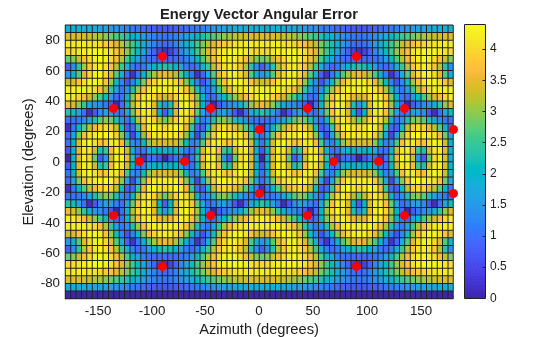

energyVectorAngularError(analyzer)

Energy Vector Angular Error min: 0.000000
Energy Vector Angular Error max: 4.393603
Energy Vector Angular Error dynamic range: 4.393603

Notice that the angular error is non-trivial for certain source directions. The angular error is minimized at the direction of the loudspeakers.

Analyze SAD with Max-RE Weighting

Max energy vector magnitude (Max-RE) weighting is often applied to ambisonic decoders to boost the magnitude of the energy vector [1], which is believed to reduce localization blur.

Compare the SAD decoder with max-RE weighting to the unweighted decoder for the same dodecahedron loudspeaker setup.

Design a SAD decoder with max-RE weighting.

D = ambisonicDecoderMatrix(order, loudspeakerSph, Decoder="SAD",ApplyMaxREWeighting=true);

Create a new ambisonic analyzer for this decoder.

analyzerMaxRE = ambisonicAnalyzer(Loudspeakers=loudspeakerSph,...
                             DecoderMatrix = D,...
                             AzimuthRange = [-180,180],...
                             AzimuthStep = 5,...
                             ElevationRange = [-90 90],...
                             ElevationStep = 5);

Plot the energy vector magnitude for different source locations. Notice that the vector magnitude is boosted compared to the unweighted SAD case.

figure;

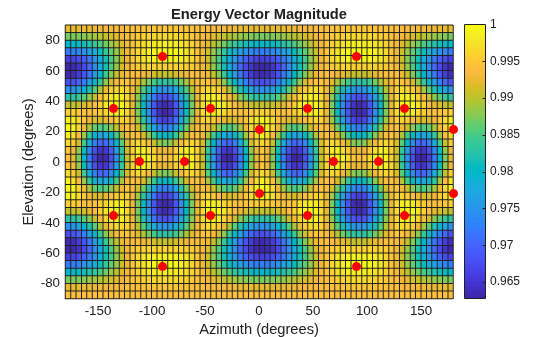

energyVectorMagnitude(analyzerMaxRE)

Energy Vector Magnitude min: 0.962782
Energy Vector Magnitude max: 1.000000
Energy Vector Magnitude dynamic range: 0.037218

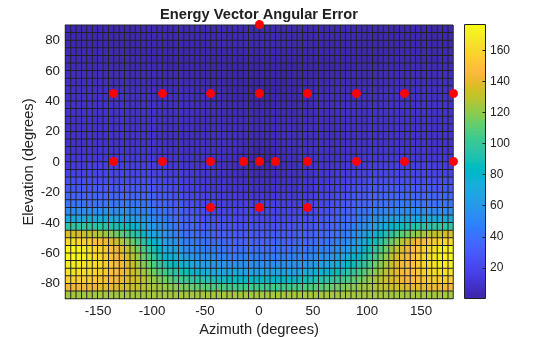

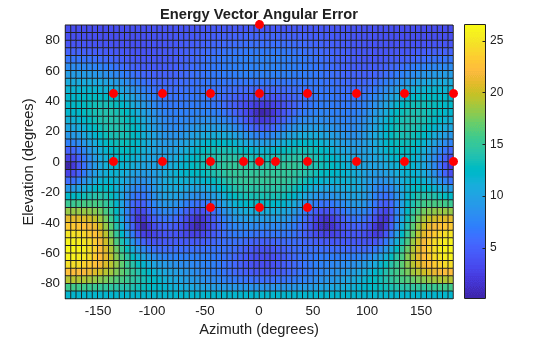

Plot the energy vector angular error for different source locations. Notice that the error is reduced compared to the unweighted SAD case.

figure;
energyVectorAngularError(analyzerMaxRE)

Energy Vector Angular Error min: 0.000000
Energy Vector Angular Error max: 1.181464
Energy Vector Angular Error dynamic range: 1.181464

Irregular Loudspeaker Setup

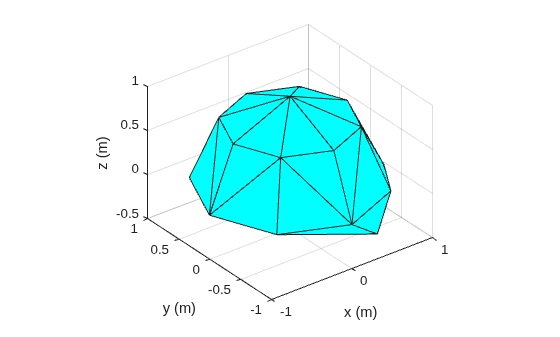

Finally, consider an irregular loudspeaker setup.

loudspeakerSph = [45 -45 0 135 -135 15 -15 90 -90 180 45 -45  0 135 -135 90 -90 180  0  45 -45   0;
                  0   0 0   0    0  0   0  0   0   0 45  45 45  45   45 45  45  45 90 -30 -30 -30]';

Analyze SAD Decoder

Design the ambisonic decoder for this loudspeaker setup. Assume an order of 3.

order = 3;
D = ambisonicDecoderMatrix(order, loudspeakerSph, Decoder="SAD");

Define the ambisonic analyzer.

analyzerSAD = ambisonicAnalyzer(Loudspeakers=loudspeakerSph,...
                             DecoderMatrix = D,...
                             AzimuthRange = [-180,180],...
                             AzimuthStep = 5,...
                             ElevationRange = [-90 90],...
                             ElevationStep = 5);

View the loudspeaker setup.

figure;
showLoudspeakers(analyzerSAD)

Analyze the energy vector angular error.

figure
energyVectorAngularError(analyzerSAD)

Energy Vector Angular Error min: 0.349203
Energy Vector Angular Error max: 176.519964
Energy Vector Angular Error dynamic range: 176.170761

Analyze AllRAD Decoder

The All-Round Ambisonic Decoder (AllRAD) is an advanced decoder that combines SAD decoding with vector-base amplitude panning (VBAP). The AllRAD decoder can outperform the SAD decoder for irregular loudspeaker setups and yield lower directional error.

Create the AllRad decoder matrix.

D = ambisonicDecoderMatrix(order, loudspeakerSph, Decoder="allrad");

Define the corresponding ambisonic analyzer.

analyzerAllRAD = ambisonicAnalyzer(Loudspeakers=loudspeakerSph,...
                             DecoderMatrix = D,...
                             AzimuthRange = [-180,180],...
                             AzimuthStep = 5,...
                             ElevationRange = [-90 90],...
                             ElevationStep = 5);

Analyze the energy vector angular error. Notice that is significantly reduced compared to the SAD decoder.

figure
energyVectorAngularError(analyzerAllRAD)

Energy Vector Angular Error min: 0.129477
Energy Vector Angular Error max: 26.561196
Energy Vector Angular Error dynamic range: 26.431719

Helper Functions

function xyz = getTDesign()
% Order-4 t-design loudspeaker setup

% "McLaren's Improved Snub Cube and Other New Spherical Designs in
% Three Dimensions", R. H. Hardin and N. J. A. Sloane, Discrete and
% Computational Geometry, 15 (1996), pp. 429-441.

xyz = [0.850650808352000               0  -0.525731112119000
   0.525731112119000  -0.850650808352000                   0
                   0  -0.525731112119000   0.850650808352000
   0.850650808352000                   0   0.525731112119000
  -0.525731112119000  -0.850650808352000                   0
                   0   0.525731112119000  -0.850650808352000
  -0.850650808352000                   0  -0.525731112119000
  -0.525731112119000   0.850650808352000                   0
                   0   0.525731112119000   0.850650808352000
  -0.850650808352000                   0   0.525731112119000
   0.525731112119000   0.850650808352000                   0
                   0  -0.525731112119000  -0.850650808352000];
end

function sph = getDodecahedron()

gr = (1 + sqrt(5))/2; % golden ratio

u = [1     1      -1
    -1     1      -1
    -1     1       1
    -1    -1       1
     1    -1       1
     1    -1      -1
    -1    -1      -1
     1     1       1
     0     1/gr   -gr
     0    -1/gr    gr
     0    -1/gr   -gr
     0     1/gr    gr
     1/gr  gr      0
    -1/gr  gr      0
     1/gr -gr      0
    -1/gr -gr      0
    -gr    0      -1/gr
    -gr    0       1/gr
     gr    0       1/gr
     gr    0      -1/gr ] / sqrt(3);

[sph(:,1),sph(:,2)] = cart2sph(u(:,1),u(:,2),u(:,3));
sph = 180*sph/pi;
end

function plotMetric(metric, metricType, azimuthValues,elevationValues,Loudspeakers)
surf(azimuthValues, elevationValues, reshape(metric,numel(elevationValues),numel(azimuthValues)))
view(2)
colorbar
hold on
plot3(Loudspeakers(:,1), Loudspeakers(:,2), 2*max(metric(:))*ones(length(Loudspeakers),1), 'ro', 'MarkerFaceColor','r')
title(metricType)
xlabel("Azimuth (degrees)")
ylabel("Elevation (degrees)")
axis tight
end

References

[1] "All-Round Ambisonic Decoding: Spread and Correlation", F. Zotter et al, DAGA, 2022.

[2] "Optimized Decoders for Mixed-Order Ambisonics", A. Heller et al, Paper 10507, 150th Audio Engineering Society Convention, May 2021.
