getFilter

Return filter object with design parameters set

collapse all in page

Syntax

filter = getFilter(obj)

Description

filter = getFilter(obj) returns an dsp.SOSFilter object. The SOSMatrix and ScaleValues properties of the filter object are set as specified by the obj System object™.

Use getFilter for the design capabilities of the obj System object and the processing capabilities of the dsp.SOSFilter System object.

example

Examples

collapse all

Open Live Script

Create an octaveFilter System object™. Call getFilter on your object to return a dsp.SOSFilter object with design parameters specified by your octaveFilter System object.

octFilt = octaveFilter;
biquad = getFilter(octFilt)
biquad =
  dsp.SOSFilter with properties:

            Structure: 'Direct form II transposed'
    CoefficientSource: 'Property'
            Numerator: [3×3 double]
          Denominator: [3×3 double]
       HasScaleValues: false

  Show all properties
Open Live Script

Create a weightingFilter System object™.

weightFilt = weightingFilter;

Call getFilter on your object to return a dsp.SOSFilter object with design parameters specified by your weightingFilter System object. Use freqz to visualize the biquad filter.

biquad = getFilter(weightFilt)
biquad =
  dsp.SOSFilter with properties:

            Structure: 'Direct form II transposed'
    CoefficientSource: 'Property'
            Numerator: [3×3 double]
          Denominator: [3×3 double]
       HasScaleValues: true
          ScaleValues: [4×1 double]

  Show all properties


freqz(biquad)

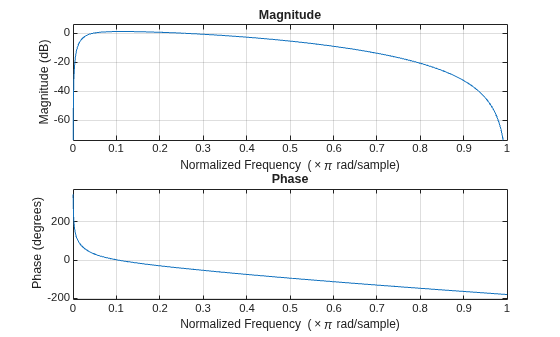

Figure contains 2 axes objects. Axes object 1 with title Phase, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Phase (degrees) contains an object of type line. Axes object 2 with title Magnitude, xlabel Normalized Frequency (\times\pi rad/sample), ylabel Magnitude (dB) contains an object of type line.

Input Arguments

collapse all

System object that you want to get filter object from.

Output Arguments

collapse all

Version History

Introduced in R2016b
