Multiband Parametric EQ
Libraries:
Audio Toolbox /
Filters
Description
The Multiband Parametric EQ block performs multiband parametric equalization independently across each channel of input using specified center frequencies, gains, and quality factors. You can configure this block with up to 10 bands. You can add low-shelf and high-shelf filters as well as highpass (low-cut) and lowpass (high-cut) filters.
Examples

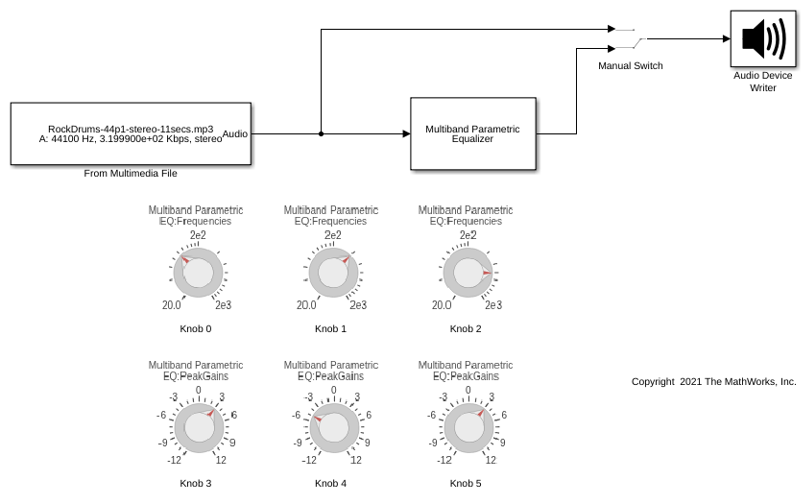

Visualize Filter Response of Multiband Parametric Equalizer Block
Perform multiband parametric equalization independently across each channel of an input using specified center frequencies, gains, and quality factors.
Ports
Input
Port_1 — Audio input to equalizer
matrix | vector
Audio input to the equalizer, specified as one of the following:
Matrix input –– The block treats each column of the input as an independent channel.
Vector input –– The block treats the input as having a single channel.
Data Types: single
| double
Output
Port_1 — Audio output from equalizer
matrix
Audio output from the equalizer, returned as a matrix. If you specify the input as a matrix, the block returns the output with the same size as matrix input. If you specify the input as a vector then the output is N-by-1 matrix.
Data Types: single
| double
Parameters
Main
EQ order — Order of individual equalizer bands
2
(default) | even positive integer
Order of individual equalizer bands, specified as an even positive integer. All equalizer bands have the same order.
Number of bands — Number of equalizer bands
3
(default) | integer in the range [1,10]
Number of equalizer bands, specified as an integer in the range
[1,10]
. The number of equalizer bands does not include shelving
filters, highpass filters, or lowpass filters.
Specify frequencies from input port — Specify frequencies from input port
off
(default) | on
Select this parameter to specify frequencies from the input port.
Frequencies (Hz) — Center frequencies of equalizer bands
[100,181,325]
(default) | row vector of length equal to Number of bands
Center frequencies of equalizer bands in Hz, specified as a row vector of length
equal to Number of
bands. The vector consists of real scalars in the range
0
to Input sample rate
(Hz)/2.
Tunable: Yes
Dependencies
To enable this parameter, set Specify input
frequencies from input port to off
.
Specify peak gains from input port — Specify peak gains from input port
off
(default) | on
Select this parameter to specify peak gains from input port.
Peak Gains (dB) — Peak or dip filter gains
[0,0,0]
(default) | row vector of length equal to Number of bands
Peak or dip filter gains, specified as a row vector of length equal to
Number of
bands in dB. The vector consists of real scalars in the range
[–inf,20]
.
Tunable: Yes
Dependencies
To enable this parameter, set Specify peak gains
from input port to off
.
Specify quality factors from input port — Specify quality factors from input port
off
(default) | on
Select this parameter to specify quality factors from the input port.
Quality factors — Quality factors of equalizer bands
[1.6,1.6,1.6]
(default) | row vector
Quality factors of equalizer bands, specified as a row vector of length equal to Number of bands.
Tunable: Yes
Dependencies
To enable this parameter, set Specify quality
factor from input port to off
.
Inherit sample rate from input — Specify sample rate from input port
off
(default) | on
Select this parameter to specify sample rate from the input port.
Input sample rate (Hz) — Input sample rate
44100
(default) | positive scalar
Input sample rate, specified as a positive scalar in Hz.
Tunable: Yes
Dependencies
To enable this parameter, set Inherit sample rate
from input port to off
.
Visualize filter response — Visualize magnitude response of equalizer
button
This button plots the filter responses of low-shelf, high-shelf, highpass (low-cut), and lowpass (high-cut) filters in a magnitude (dB) vs. frequencies (Hz) plot.
Note
The block does not support filter visualization if any parameters are specified from input ports or the sample rate is inherited.
Variable name — Variable name of exported filter
myFilt
(default) | valid variable name
Name of the variable in the base workspace to contain the filter when it is exported. The name must be a valid MATLAB® variable name.
Overwrite variable if it already exists — Overwrite variable if it already exists
on
(default) | off
When you select this parameter, exporting the filter overwrites the variable
specified by the Variable name parameter if it already exists in
the base workspace. If you do not select this parameter and the specified variable
already exists in the workspace, exporting the filter creates a new variable with an
underscore and a number appended to the variable name. For example, if the variable
name is var
and it already exists, the exported variable will be
named var_1
.
Export filter to workspace — Export filter to workspace
button
Export the filter to the base workspace in the variable specified by the Variable name parameter.
Tips
You cannot export the filter if you have enabled the Inherit sample rate from input parameter and the model is not running.
You cannot export the filter if you are specifying filter characteristics from input ports.
Advanced
Add low-shelf filter — Add low-shelf filter to equalizer
off
(default) | on
Select this parameter to add a low-shelf filter to your equalizer.
Specify low-shelf cutoff from input port — Specify low-shelf cutoff frequency from input port
off
(default) | on
Select this parameter to specify the cutoff frequency of the low-shelf filter from the input port.
Dependencies
To enable this parameter, set Add low-shelf
filter to on
.
Low-shelf cutoff frequency (Hz) — Low-shelf cutoff frequency
200
(default) | scalar
The cutoff frequency of the low-shelf filter, specified as a scalar greater than
or equal to 0
in Hz.
Tunable: Yes
Dependencies
To enable this parameter, set Add low-shelf
filter to on
and Specify low-shelf
cutoff from input port to off
.
Specify low-shelf slope from input port — Specify low-shelf slope
off
(default) | on
Select this parameter to specify low-shelf slope from the input port.
Dependencies
To enable this parameter, set Add low-shelf
filter to on
.
Low-shelf filter slope — Low-shelf slope
1.5
(default) | positive scalar
The slope of the low-shelf filter, specified as a positive scalar.
Tunable: Yes
Dependencies
To enable this parameter, set Add low-shelf
filter to on
and Specify low-shelf
slope from input port to off
.
Specify low-shelf gain from input port — Specify low-shelf gain from input port
off
(default) | on
Select this parameter to specify the gain of the low-shelf filter from the input port.
Dependencies
To enable this parameter, set Add low-shelf
filter to on
.
Low-shelf filter gain (dB) — Low-shelf gain
0
(default) | real scalar
The gain of the low-shelf filter, specified as a real scalar.
Tunable: Yes
Dependencies
To enable this parameter, set Add low-shelf
filter to on
and Specify low-shelf
gain from input port to off
.
Add high-shelf filter — Add high-shelf filter to equalizer
off
(default) | on
Select this parameter to add a high-shelf filter to your equalizer.
Specify high-shelf cutoff from input port — Specify high-shelf cutoff frequency from input port
off
(default) | on
Select this parameter to specify the cutoff frequency of the high-shelf filter from the input port.
Dependencies
To enable this parameter, set Add high-shelf
filter to on
.
High-shelf cutoff frequency (Hz) — High-shelf cutoff frequency
15e3
(default) | scalar
The cutoff frequency of the high-shelf filter, specified as a scalar greater than
or equal to 0
in Hz.
Tunable: Yes
Dependencies
To enable this parameter, set Add high-shelf
filter to on
and Specify high-shelf
cutoff from input port to off
.
Specify high-shelf slope from input port — Specify high-shelf slope from input port
off
(default) | on
Select this parameter to specify the slope of the high-shelf filter from the input port.
Dependencies
To enable this parameter, set Add high-shelf
filter to on
.
High-shelf filter slope — High-shelf slope
1.5
(default) | positive scalar
The slope of the high-shelf filter, specified as a positive scalar.
Tunable: Yes
Dependencies
To enable this parameter, set Add high-shelf
filter to on
and Specify high-shelf
slope from input port to off
.
Specify high-shelf gain from input port — Specify high-shelf gain from input port
off
(default) | on
Select this parameter to specify the gain of the high-shelf filter from the input port.
Dependencies
To enable this parameter, set Add high-shelf
filter to on
.
High-shelf filter gain (dB) — High-shelf gain
0
(default) | real scalar
The gain of the high-shelf filter, specified as a real scalar.
Tunable: Yes
Dependencies
To enable this parameter, set Add high-shelf
filter to on
and Specify high-shelf
gain from input port to off
.
Add lowpass filter — Add lowpass filter to equalizer
off
(default) | on
Select this parameter to add a lowpass filter to your equalizer.
Specify lowpass cutoff from input port — Specify lowpass cutoff frequency from input port
off
(default) | on
Select this parameter to specify the cutoff frequency of the lowpass filter from the input port.
Dependencies
To enable this parameter, set Add lowpass
filter to on
.
Lowpass cutoff frequency (Hz) — Lowpass cutoff frequency
18e3
(default) | scalar
The cutoff frequency of the lowpass filter, specified as a scalar greater than or
equal to 0
in Hz.
Tunable: Yes
Dependencies
To enable this parameter, set Add lowpass
filter to on
and Specify lowpass
cutoff from input port to off
.
Specify lowpass slope from input port — Specify lowpass slope from input port
off
(default) | on
Select this parameter to specify the slope of the lowpass filter from the input port.
Dependencies
To enable this parameter, set Add lowpass
filter to on
.
Lowpass filter slope — Lowpass slope
12
(default) | real scalar in the range [0:6:48]
The slope of the lowpass filter, specified as a real scalar in the range
[0:6:48]
in dB/octave. Values that are not multiples of 6 are
rounded to the nearest multiple of 6.
Tunable: Yes
Dependencies
To enable this parameter, set Add lowpass
filter to on
and Specify lowpass
slope from input port to off
.
Add highpass filter — Add highpass filter to equalizer
off
(default) | on
Select this parameter to add a highpass filter to your equalizer.
Specify highpass cutoff from input port — Specify highpass cutoff frequency from input port
off
(default) | on
Select this parameter to specify the cutoff frequency of the highpass filter cutoff from the input port.
Dependencies
To enable this parameter, set Add highpass
filter to on
.
Highpass cutoff frequency (Hz) — Highpass cutoff frequency
20
(default) | nonnegative real scalar
The cutoff frequency of the highpass filter, specified as a real scalar greater
than or equal to 0
in Hz.
Tunable: Yes
Dependencies
To enable this parameter, set Add highpass
filter to on
and Specify highpass
cutoff from input port to off
.
Specify highpass slope from input port — Specify highpass slope from input port
off
(default) | on
Select this parameter to specify the slope of the highpass filter from the input port.
Dependencies
To enable this parameter, set Add highpass
filter to on
.
Highpass filter slope — Highpass slope
30
(default) | real scalar in the range [0:6:48]
The slope of the highpass filter, specified as a real scalar in the range
[0:6:48]
in dB/octave. Values that are not multiples of 6 are
rounded to the nearest multiple of 6.
Tunable: Yes
Dependencies
To enable this parameter, set Add highpass
filter to on
and Specify highpass
slope from input port to off
.
Oversample — Oversample toggle
off
(default) | on
Oversample toggle, specified as one of the following:
off
–– Run the multiband parametric equalizer at the input sample rate.on
–– Run the multiband parametric equalizer at two times the input sample rate. Oversampling minimizes the frequency-warping effects introduced by the bilinear transformation.
A halfband interpolator implements oversampling before equalization. A halfband decimator reduces the sample rate back to the input sampling rate after equalization.
Simulate using — Specify type of simulation to run
Code generation
(default) | Interpreted execution
Type of simulation to run, specified as one of the following:
Interpreted execution
–– Simulate model using the MATLAB interpreter. This option shortens startup time and has simulation speed comparable toCode generation
. In this mode, you can debug the source code of the block.Code generation
–– Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time but the speed of the subsequent simulations is faster thanInterpreted execution
.
Tunable: No
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2021b
MATLAB コマンド
次の MATLAB コマンドに対応するリンクがクリックされました。
コマンドを MATLAB コマンド ウィンドウに入力して実行してください。Web ブラウザーは MATLAB コマンドをサポートしていません。
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
