Cepstral Feature Extractor

Extract cepstral features from audio segment

  • Library:
  • Audio Toolbox / Measurements

Description

The Cepstral Feature Extractor block extracts cepstral features from an audio segment. Cepstral features are commonly used to characterize speech and music signals.

Ports

Input

expand all

Audio input to the cepstral feature extractor, specified as a column vector or a matrix. If specified as a matrix, the columns are treated as independent audio channels.

Data Types: single | double

Output

expand all

Cepstral coefficients, returned as a column vector or a matrix. If the coefficients matrix is an N-by-M matrix, N is determined by the values you specify in the Number of coefficients to return and Log energy usage parameters. M equals the number of input audio channels.

When the Log energy usage parameter is set to:

  • Append –– The block prepends the log energy value to the coefficients vector. The length of the coefficients vector is 1 + NumCoeffs, where NumCoeffs is the value specified in the Number of coefficients to return parameter.

  • Replace –– The block replaces the first coefficient with the log energy of the signal. The length of the coefficients vector is NumCoeffs.

  • Ignore –– The block does not calculate or return the log energy.

This port is unnamed until you select Output delta parameter, the Output delta-delta parameter, or both.

Data Types: single | double

Change in coefficients over consecutive calls to the algorithm, returned as a column vector or a matrix. The delta array is of the same size and data type as the coeffs array.

Dependencies

To enable this port, select the Output delta parameter.

Data Types: single | double

Change in delta values over consecutive calls to the algorithm, returned as a column vector or a matrix. The deltaDelta array is the same size and data type as the coeffs and delta arrays.

Dependencies

To enable this port, select the Output delta-delta parameter.

Data Types: single | double

Parameters

expand all

If a parameter is listed as tunable, then you can change its value during simulation.

Type of filter bank, specified as either Mel or Gammatone:

  • Mel –– The block computes the mel frequency cepstral coefficients (MFCC).

  • Gammatone –– The block computes the gammatone cepstral coefficients (GTCC).

Tunable: No

Input signal domain, specified as either Time or Frequency.

Tunable: No

Number of coefficients to return, specified as an integer in the range [2, v], where v is the number of valid passbands. The number of valid passbands depends on the type of filter bank:

  • Mel –– The number of valid passbands is defined as sum(κ <= floor(fs/2))-2, where κ is the number of band edges in the mel filter bank and fs is the sample rate.

  • Gammatone –– The number of valid passbands is defined as ceil(hz2erb(R(2))-hz2erb(R(1))), where R is the frequency range of the gammatone filter bank.

Tunable: No

Data Types: single | double

When you select this parameter, the FFT length is equal to the number of rows in the input signal.

Tunable: No

Dependencies

To enable this parameter, set Domain of the input signal to Time.

FFT length, specified as a positive integer. The default, [], means that the FFT length is equal to the number of rows in the input signal.

Tunable: No

Dependencies

To enable this parameter, set Domain of the input signal to Time and select the Inherit FFT length from input dimensions parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify how the log energy is shown in the coefficients vector output, specified as:

  • Append –– The block prepends the log energy to the coefficients vector. The length of the coefficients vector is 1 + NumCoeffs, where NumCoeffs is the value specified in the Number of coefficients to return parameter.

  • Replace –– The block replaces the first coefficient with the log energy of the signal. The length of the coefficients vector is NumCoeffs.

  • Ignore –– The block does not calculate or return the log energy.

Tunable: No

When you select this parameter, an additional output port, delta, is added to the block. This port outputs the change in coefficients over consecutive calls to the algorithm.

Tunable: No

When you select this parameter, an additional output port, deltaDelta, is added to the block. This port outputs the change in delta values over consecutive calls to the algorithm.

Tunable: No

When you select this parameter, the block inherits its sample rate from the input signal. When you clear this parameter, you specify the sample rate in Input sample rate (Hz) parameter.

Tunable: No

Input sample rate in Hz, specified as a real positive scalar.

Tunable: Yes

Dependencies

To enable this parameter, clear the Inherit sample rate from input parameter.

  • Code generation –– Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to Interpreted execution.

  • Interpreted execution –– Simulate model using the MATLAB® interpreter. This option shortens startup time but has a slower simulation speed than Code generation. In this mode, you can debug the source code of the block.

Tunable: No

Advanced Tab

Frequency range of the gammatone filter bank in Hz, specified as a positive, monotonically increasing two-element row vector. The maximum frequency range can be any finite number. The center frequencies of the filter bank are equally spaced across the frequency range on the ERB scale.

Tunable: No

Dependencies

To enable this parameter, set Filter bank type to Gammatone.

Band edges of the filter bank in Hz, specified as a nonnegative monotonically increasing row vector in the range [0, ∞). The maximum bandedge frequency can be any finite number. The number of bandedges must be in the range [4, 80].

The default band edges are spaced linearly for the first ten and then logarithmically thereafter. The default band edges are set as recommended by [1].

Tunable: No

Dependencies

To enable this parameter, set Filter bank type to Mel.

Mel filter bank design domain, specified as either Hz or Bin. The filterbank is designed as overlapped triangles with band edges specified by the Band edges of filter bank (Hz) parameter.

The band edges are specified in Hz. When you set the design domain to:

  • Hz –– Filter bank triangles are drawn in Hz and are mapped onto bins.

    For details, see [1].

  • Bin –– The band edge frequencies in Hz are converted to bins. The filter bank triangles are drawn symmetrically in bins.

    For details, see [2].

Tunable: No

Dependencies

To enable this parameter, set Filter bank type to Mel.

Normalization technique used to normalize the weights of the filter bank, specified as:

  • Bandwidth –– The weights of each bandpass filter are normalized by the corresponding bandwidth of the filter.

  • Area –– The weights of each bandpass filter are normalized by the corresponding area of the bandpass filter.

  • None –– The weights of the filter are not normalized.

Tunable: No

Block Characteristics

Data Types

double | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

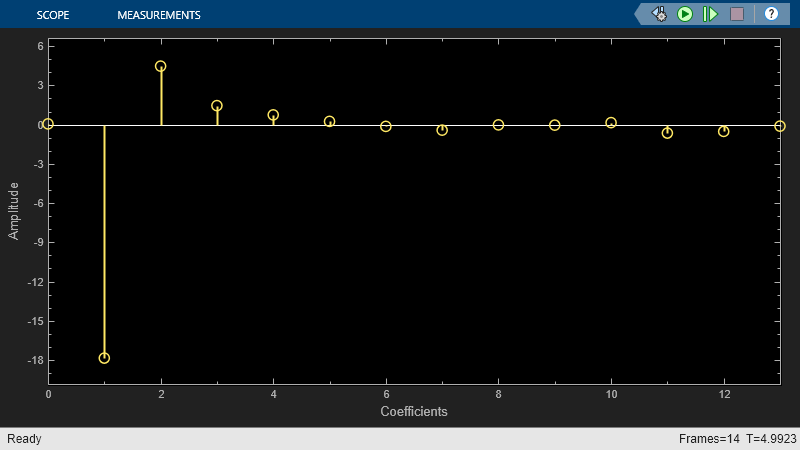

Algorithms

expand all

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Introduced in R2018a
