hide

Hide site from Site Viewer

collapse all in page

Syntax

hide(site)

hide(___,Name,Value)

Description

hide(site) hides the location of the specified antenna site from the current Site Viewer.

example

hide(___,Name,Value) hides the site with additional options specified by one or more name-value pairs.

example

Examples

collapse all

Show and Hide Transmitter Site

Open Live Script

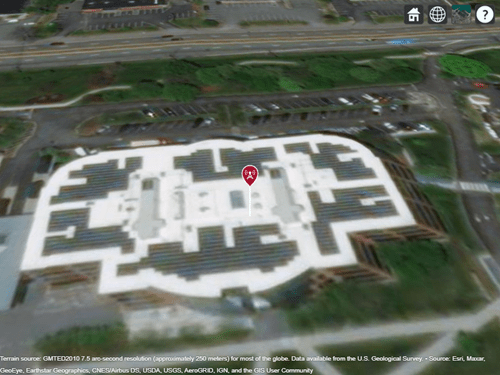

Create and show a transmitter site.

tx = txsite('Name','MathWorks Apple Hill',...
       'Latitude',42.3001, ...
       'Longitude',-71.3504);
show(tx)

Hide the transmitter site.

hide(tx)

Show and Hide Sites with Cartesian Coordinates

Open Live Script

Import and view an STL file. The file models a small conference room with one table and four chairs.

viewer = siteviewer('SceneModel','conferenceroom.stl');

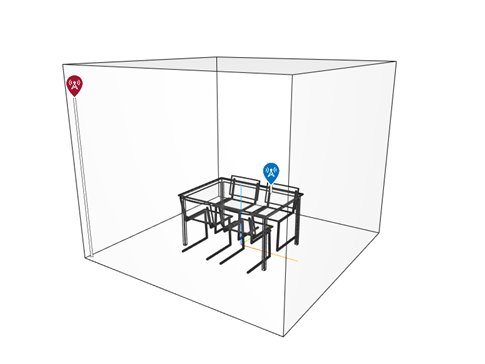

Create a transmitter site near the upper corner of the room and a receiver site above the table. Specify the position using Cartesian coordinates in meters. Then, visualize the sites.

tx = txsite('cartesian', ...
    'AntennaPosition',[-1.46; -1.42; 2.1]);
rx = rxsite('cartesian', ...
    'AntennaPosition',[0.3; 0.3; 0.85]);

show(tx)
show(rx)

Pan by left-clicking, zoom by right-clicking or by using the scroll wheel, and rotate the visualization by clicking the middle button and dragging or by pressing Ctrl and left-clicking and dragging.

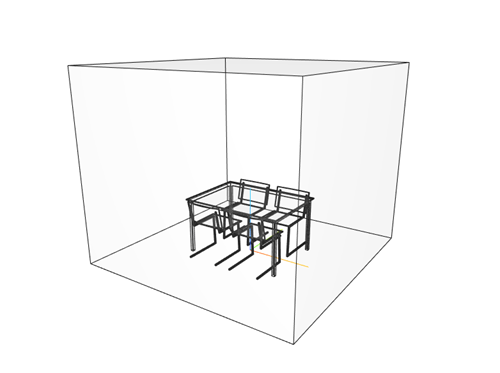

Hide the sites.

hide(tx)
hide(rx)

Input Arguments

collapse all

`site` — Transmitter or receiver site
`txsite` or `rxsite` object | array of `txsite` or `rxsite` objects

Transmitter or receiver site, specified as a txsite or rxsite object or an array of txsite or rxsite objects.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Map','siteviewer1'

`Map` — Map for visualization of surface data
`siteviewer` object

Map for visualization of surface data, specified as a siteviewer object.¹

Data Types: char | string

Version History

Introduced in R2017b
