successors
後続ノード
説明
例
後続ノード

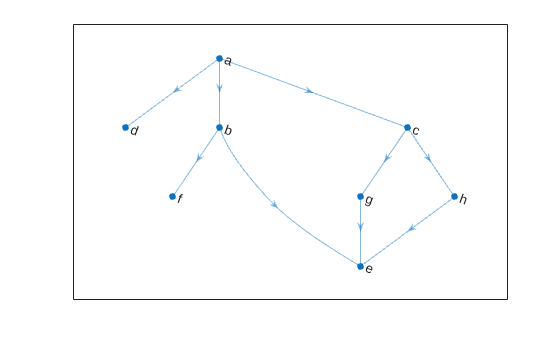

有向グラフを作成してプロットし、ノード 'a'
の後続ノードを求めます。
s = [1 1 1 2 2 3 3 7 8]; t = [2 3 4 5 6 7 8 5 5]; names = {'a' 'b' 'c' 'd' 'e' 'f' 'g' 'h'}; G = digraph(s,t,[],names); plot(G)
sucIDs = successors(G,'a')
sucIDs = 3x1 cell
{'b'}
{'c'}
{'d'}
入力引数
出力引数
sucIDs
— 後続ノード ID
ノード インデックス | ノード名
後続ノード ID。ノード インデックスまたはノード名として返されます。
nodeID
が数値ノード インデックスの場合、sucIDs
は数値ノード インデックスを含みます。nodeID
がノード名の場合、sucIDs
はノード名を含みます。
ヒント
同じ 2 つのノード間に複数のエッジがある多重グラフでは、一部の後続ノードへの出方向エッジが複数存在する可能性があるため、
outedges
の出力がsuccessors
の出力より長くなる場合があります。
拡張機能
C/C++ コード生成
MATLAB® Coder™ を使用して C および C++ コードを生成します。
使用上の注意事項および制限事項:
ノード識別子
nodeID
は、入力グラフG
の数値のノード インデックスでなければなりません。ノード名はサポートされません。
バージョン履歴
R2015b で導入
参考
neighbors
| predecessors
| digraph
| outdegree
| outedges
