Create Event-Based Timing Patterns

Use event-based temporal logic to control chart execution based on recurring events. By using events with temporal logic operators, you can create timing patterns that respond to specific events rather than absolute time.

You can implement event-based timing patterns using these operators:

after(n,E): Returns true when event E has occurred at least n times since the associated state became active
at(n,E): Returns true when event E has occurred exactly n times since the associated state became active
before(n,E): Returns true when event E has occurred fewer than n times since the associated state became active
every(n,E): Returns true on every nth occurrence of event E since the associated state became active
temporalCount(E): Returns the number of occurrences of event E since the associated state became active

Implementation Guidelines

Identify or create the event that will serve as your timing mechanism. You can use either explicit events from other parts of your model or implicit events like change, enter, or exit.

Each temporal logic operator has an associated state, which is the state where the action appears or from which the transition path originates. The timing counter used by each operator resets whenever the associated state reactivates.

You can use two notations for event-based temporal logic in transitions:

Trigger notation
Conditional notation

Choose Appropriate Syntax

Trigger Notation:

temporalLogicOperator(n,E)[C]

With this notation, the transition occurs when the chart processes a broadcast of the base event E.

Conditional Notation:

E1[temporalLogicOperator(n,E2) && C]

With this notation, the transition can occur when the chart processes a broadcast of the nonbase event E1 or the event E2.

Periodic Actions

To execute tasks at regular intervals, use the temporal logic operator every. Use every(n,E) to perform tasks on every nth occurrence of event E. Self-loop transitions with the every operator maintain the active state between executions. State variables combined with event counting create nested periodic patterns. Multiple actions at different frequencies can be coordinated using the same event base.

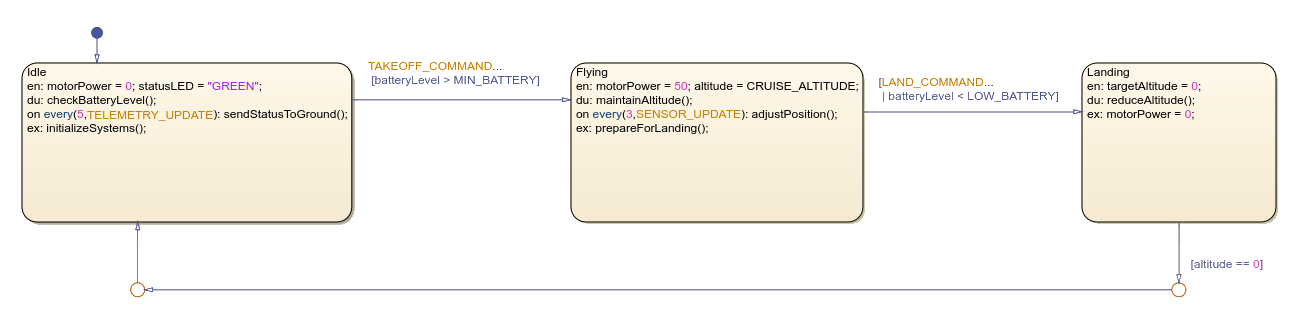

Chart that shows the every operator used with an event.

This example shows a simple drone flight controller with three states, Idle, Flying, and Landing. The model uses the every operator to execute periodic actions like position adjustments during flight and status updates during idle state.

Sequential Timing

To trigger actions at specific event counts, use the at operator. You can implement a sequence using on at(n,E) actions with increasing values of n to perform tasks in order as events occur. Transitions with at(n,E) conditions allow states to progress through a sequence based on event counts.

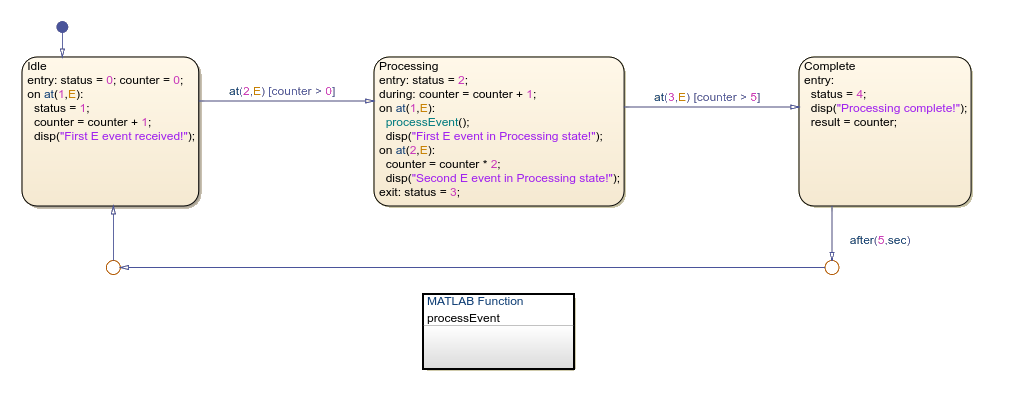

Chart that shows sequential timing with the at operator.

This example shows how a chart uses temporal logic to respond to event occurrences. The chart transitions through three states, Idle, Processing, and Complete, based on specific event counts using the at operator. Each state performs distinct actions when events occur an exact numbers of times.

Event Counting

To track occurrences of events, use the temporalCount operator which returns the number of times event E has occurred since the state became active. You can store this count in variables to implement custom timing logic based on event frequency. You can also use transition conditions to check these count values and execute state changes. The count persists through the active lifecycle of the state until the state becomes inactive or the chart resets.

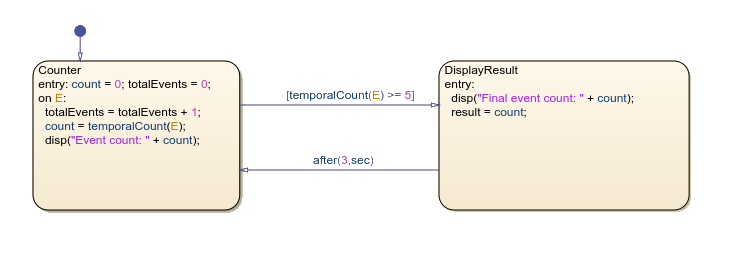

Stateflow chart that shows event counting.
