Communicating with LEGO MINDSTORMS EV3 Hardware

Introduction

When you are developing algorithms, it is often necessary to determine appropriate values of critical algorithm parameters in iterative fashion. Simulink's External mode feature enables you to accelerate the process by letting you change certain parameter values while the model is running on target hardware, without stopping the model. When you change parameter values from within Simulink®, the modified parameter values are communicated to the target hardware immediately. The effects of the parameters tuning activity may be monitored by viewing algorithm signals on scopes or displays in Simulink.

This example introduces the Simulink External mode feature by showing you how to:

Prerequisites

We recommend completing Getting Started with LEGO MINDSTORMS EV3 Hardware example.

Required Hardware

You will need the following hardware:

Task 1 - Set Up the Network Connection

Please refer to Task 1 and 2 in Getting Started with LEGO MINDSTORMS EV3 Hardware example and make a note the IP address of the EV3 brick.

Task 2 - Monitor and Tune Your Simulink Model

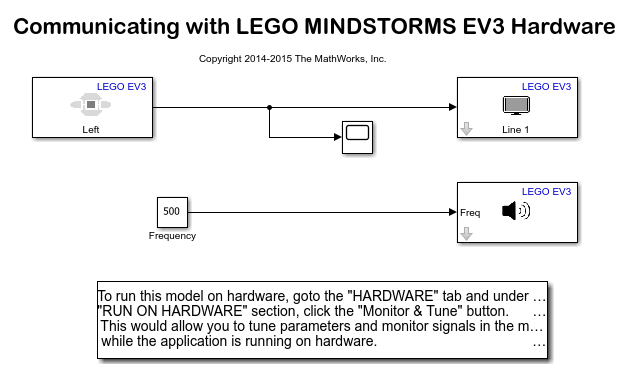

1. Open the ev3_communication Simulink model.

2. In the Hardware tab, click the Monitor & Tune button.

Task 3 - Communicate with the Model

This task shows you how to tune the parameter and monitor the execution of hardware from the model.

1. Open the Scope block. The scope displays the value of signal from the left button on the EV3 brick. Press the left button. The scope shows the value of the signal change from 0 to 1.

2. Double-click the Frequency block in the model and change the value of the Constant value parameter to 600. When you click OK or Apply, the tone coming from the speaker of EV3 brick changes

Task 4 - Stop Communication

1. Click the Stop button in the Simulink model. This stops both the application on the EV3 brick and the simulation on your host machine.
