Battery Charging and Discharging
This example shows how to use a constant current and constant voltage algorithm to charge and discharge a battery. The Battery CC-CV block is charging and discharging the battery for 10 hours. The initial state of charge (SOC) is equal to 0.3. When the battery is charging, the current is constant until the battery reaches the maximum voltage and the current decreases to 0. When the battery is discharging, the model uses a constant current.

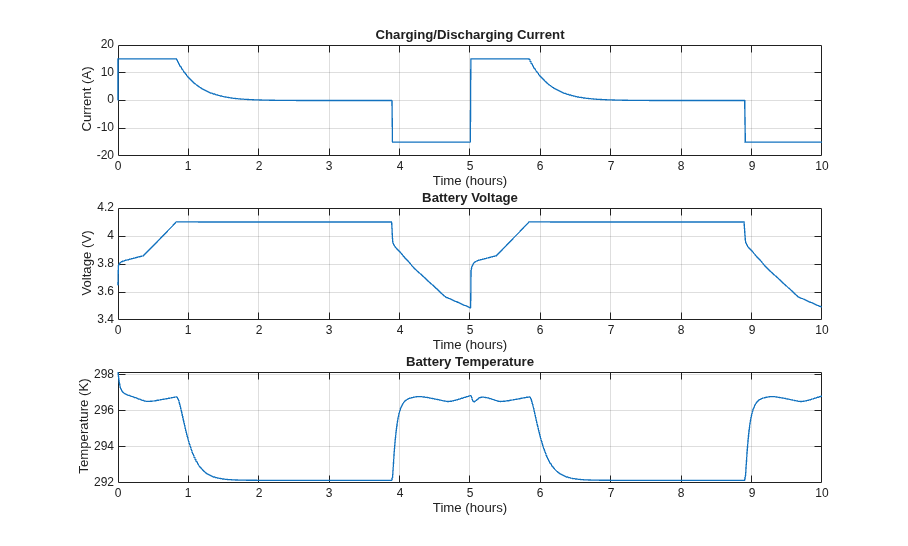

This plot shows the current, voltage, and temperature of the battery under test.
Results from Real-Time Simulation
This example was tested on a Speedgoat Performance real-time target machine with an Intel® 3.5 GHz i7 multi-core CPU. This model can run in real time with a step size of 50 microseconds.
