open

Open the metal or dielectric catalog

Since R2021a

collapse all in page

    Syntax

    open(catalog)

    Description

    open(catalog) opens the catalog catalog.

    example

    Examples

    collapse all

    Open Live Script

    Open the metal catalog.

    mc = MetalCatalog;
open(mc)

    Figure Metal Materials contains objects of type uimenu, uitoolbar, uitable.

    List the properties of the metal material Aluminium.

    s = find(mc,'Aluminium')
    s = struct with fields:
            Name: 'Aluminium'
    Conductivity: 37700000
       Thickness: 30
           Units: 'mil'
        Comments: ''

    Use the above metal in a coplanar waveguide.

    m = metal('Aluminium');
waveguide = coplanarWaveguide('Conductor',m)
    waveguide =
  coplanarWaveguide with properties:

              Length: 0.0231
               Width: 0.0039
             Spacing: 2.0000e-04
          ViaSpacing: [0.0011 0.0070]
         ViaDiameter: 5.0000e-04
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]
          IsShielded: 0

    View the waveguide using show function.

    figure;
show(waveguide)

    Figure contains an axes object. The axes object with title coplanarWaveguide element, xlabel x (mm), ylabel y (mm) contains 48 objects of type patch, surface. These objects represent Aluminium, feed, Teflon.

    Open Live Script

    Open the dielectric catalog.

    dc = DielectricCatalog;
open(dc)

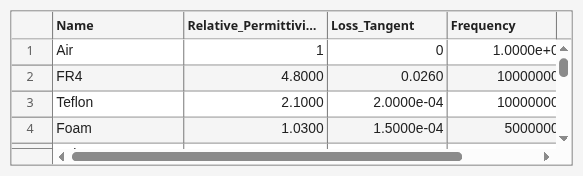

    Figure Dielectric Materials contains objects of type uimenu, uitoolbar, uitable.

    List the properties of the dielectric substrate Foam.

    s = find(dc,'Foam')
    s = struct with fields:
                     Name: 'Foam'
    Relative_Permittivity: 1.0300
             Loss_Tangent: 1.5000e-04
                Frequency: 50000000
                 Comments: ''

    Use the substrate Foam in coplanar waveguide.

    d = dielectric('Foam');
waveguide = coplanarWaveguide('Substrate',d)
    waveguide =
  coplanarWaveguide with properties:

              Length: 0.0231
               Width: 0.0039
             Spacing: 2.0000e-04
          ViaSpacing: [0.0011 0.0070]
         ViaDiameter: 5.0000e-04
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]
          IsShielded: 0

    View the waveguide.

    figure;
show(waveguide)

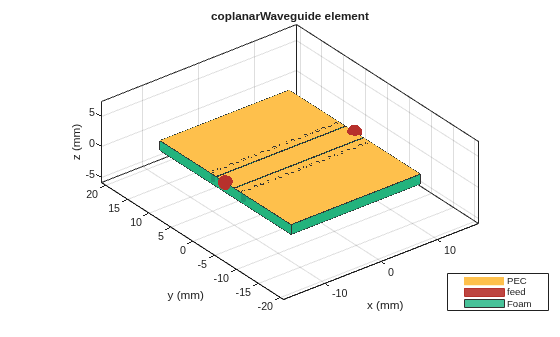

    Figure contains an axes object. The axes object with title coplanarWaveguide element, xlabel x (mm), ylabel y (mm) contains 48 objects of type patch, surface. These objects represent PEC, feed, Foam.

    Input Arguments

    collapse all

    Catalog, specified as either a MetalCatalog or DielectricCatalog object.

    Version History

    Introduced in R2021a
