Multidomain Geometry Reconstructed from Mesh

This example shows how to split a single-domain block geometry into two domains. The first part of the example generates a mesh and divides the mesh elements into two groups. The second part of the example creates a two-domain geometry based on this division.

Generate Mesh and Split Its Elements into Two Groups

Create a block geometry.

`gmSingleDomain = fegeometry("Block.stl");`

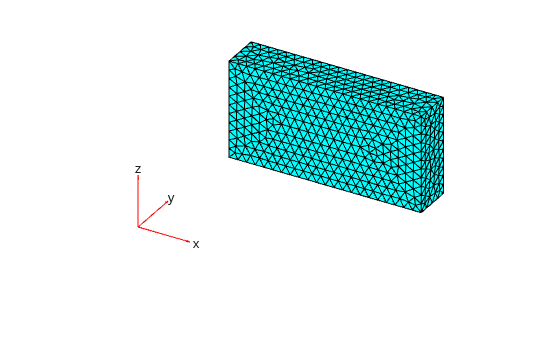

Generate and plot a mesh.

```gmSingleDomain = generateMesh(gmSingleDomain); figure pdemesh(gmSingleDomain)```

Obtain the nodes and elements of the mesh.

```msh = gmSingleDomain.Mesh; nodes = msh.Nodes; elements = msh.Elements;```

Find the x-coordinates of the geometric centers of all elements of the mesh. First, create an array of the same size as `elements` that contains the x-coordinates of the nodes forming the mesh elements. Each column of this vector contains the x-coordinates of 10 nodes that form an element.

`elemXCoords = reshape(nodes(1,elements),10,[]);`

Compute the mean of each column of this array to get a vector of the x-coordinates of the element geometric centers.

`elemXCoordsGeometricCenter = mean(elemXCoords);`

Assume that all elements have the same region ID and create a matrix `ElementIdToRegionId`.

`ElementIdToRegionId = ones(1,size(elements,2));`

Find IDs of all elements for which the x-coordinate of the geometric center exceeds 60.

`idx = elemXCoordsGeometricCenter > 60;`

For the elements with centers located beyond x = 60, change the region IDs to 2.

`ElementIdToRegionId(idx) = 2;`

Create Geometry with Two Cells

Create a new geometry from the mesh nodes and elements and assign the elements to two cells of the geometry based on their IDs.

`gmTwoDomains = fegeometry(nodes',elements',ElementIdToRegionId)`
```gmTwoDomains = fegeometry with properties: NumFaces: 74 NumEdges: 151 NumVertices: 80 NumCells: 2 Vertices: [80x3 double] Mesh: [1x1 FEMesh] ```

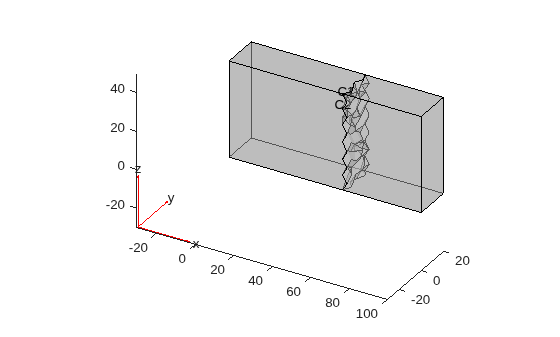

Plot the geometry, displaying the cell labels.

`pdegplot(gmTwoDomains,CellLabels="on",FaceAlpha=0.5)`

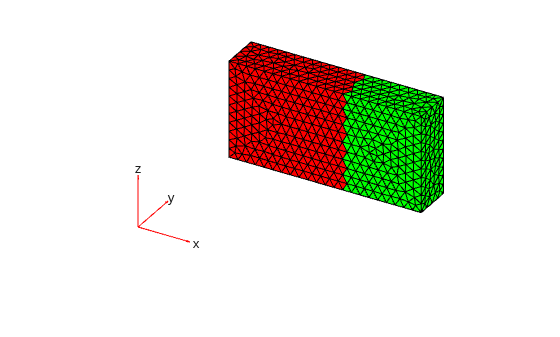

Highlight the elements from cell 1 in red and the elements from cell 2 in green.

```elementIDsCell1 = findElements(gmTwoDomains.Mesh,"region",Cell=1); elementIDsCell2 = findElements(gmTwoDomains.Mesh,"region",Cell=2); figure pdemesh(gmTwoDomains.Mesh.Nodes, ... gmTwoDomains.Mesh.Elements(:,elementIDsCell1), ... FaceColor="red") hold on pdemesh(gmTwoDomains.Mesh.Nodes, ... gmTwoDomains.Mesh.Elements(:,elementIDsCell2), ... FaceColor="green")```

When you divide mesh elements into groups and then create a multidomain geometry based on this division, the mesh might be invalid for the multidomain geometry. For example, elements in a cell might be touching by only a node or an edge instead of sharing a face. In this case, `fegeometry` throws an error saying that neighboring elements in the mesh are not properly connected.
