Find faces belonging to specified cells
Since R2021a
FaceID = cellFaces(g,RegionID)
FaceID = cellFaces(g,RegionID,FilterType)
FaceID = cellFaces(g,RegionID) finds faces belonging to the cells with ID numbers listed in RegionID.
FaceID
g
RegionID
example
FaceID = cellFaces(g,RegionID,FilterType) returns internal, external, or all faces belonging to the cells with ID numbers listed in RegionID.
FilterType
collapse all
Find faces belonging to two cuboids in a geometry consisting of four stacked cuboids.
Create a geometry that consists of four stacked cuboids.
gm = multicuboid(5,10,[1 2 3 4],"ZOffset",[0 1 3 6])
gm = DiscreteGeometry with properties: NumCells: 4 NumFaces: 21 NumEdges: 36 NumVertices: 20 Vertices: [20×3 double]

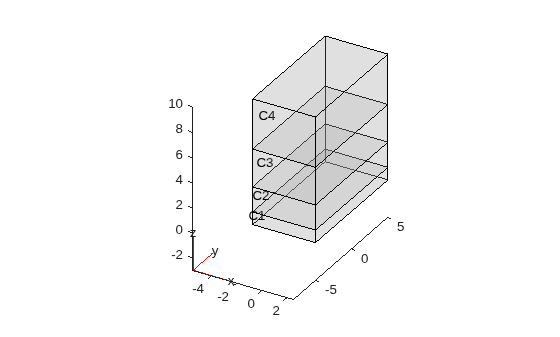

Plot the geometry with the cell labels.
pdegplot(gm,"CellLabels","on","FaceAlpha",0.2)
Find faces belonging to cells 1 and 3.
faceIDs = cellFaces(gm,[1 3])
faceIDs = 1×12 1 2 3 4 5 6 7 12 13 14 15 16
Plot the geometry with the face labels.
pdegplot(gm,"FaceLabels","on","FaceAlpha",0.2)
Find faces belonging to the outer cuboid in a geometry consisting of two nested cuboids.

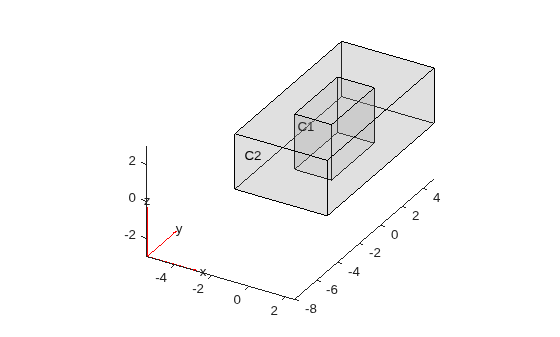

Create a geometry that consists of two nested cuboids of the same height.
gm = multicuboid([2 5],[4 10],3)
gm = DiscreteGeometry with properties: NumCells: 2 NumFaces: 12 NumEdges: 24 NumVertices: 16 Vertices: [16×3 double]

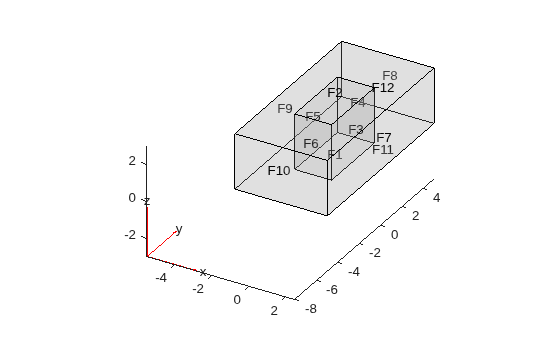

Find all faces belonging to the outer cell.
faceIDs = cellFaces(gm,2)
faceIDs = 1×10 3 4 5 6 7 8 9 10 11 12
Find only the internal faces belonging to the outer cell. Internal faces are faces shared between multiple cells.
faceIDs_int = cellFaces(gm,2,"internal")
faceIDs_int = 1×4 3 4 5 6
Find only the external faces belonging to the outer cell.
faceIDs_ext = cellFaces(gm,2,"external")
faceIDs_ext = 1×6 7 8 9 10 11 12
fegeometry
DiscreteGeometry
3-D geometry, specified as an fegeometry object or a DiscreteGeometry object.
Cell ID, specified as a positive number or a vector of positive numbers. Each number represents a cell ID.
"all"
"internal"
"external"
Type of faces to return, specified as "internal", "external", or "all". Depending on this argument, cellFaces returns these types of faces:
cellFaces
"internal" — Internal faces, that is, faces shared between multiple cells.
"external" — External faces, that is, faces not shared between multiple cells.
"all" — All faces belonging to the specified cells.
IDs of faces belonging to the specified cells, returned as a positive number or a vector of positive numbers.
expand all
cellFaces now accepts geometries specified by fegeometry objects.
cellEdges
faceEdges
facesAttachedToEdges
nearestEdge
nearestFace
AnalyticGeometry
