Shuttle Valve (IL)

One-way switching valve in an isothermal liquid system

•

Libraries:
Simscape / Fluids / Isothermal Liquid / Valves & Orifices / Directional Control Valves

Description

The Shuttle Valve (IL) block models a one-way pressure control valve or switching component in an isothermal liquid network. Flow through the valve travels from port A or port A1 to port B. When the pressure differential between A and A1, p_AA1, is above a specified threshold pressure, the path between ports A and B is open to flow and the port at A1 closes. The path has been fully changed when the pressure reaches the Pressure at which A-B is fully open and A1-B is fully closed. When p_AA1 falls below the threshold pressure, the flow inlet switches to port A1.

Mass Flow Rate Equation

Mass is conserved through the valve:

$${\dot{m}}_A+{\dot{m}}_{A1}+{\dot{m}}_B=0.$$

There is no flow between ports A and A1.

The mass flow rate through the valve is calculated as:

$$\dot{m}=\frac{C_d{A}_{valve}\sqrt{2\overline{\rho }}}{\sqrt{P{R}_{loss}\left(1-{\left(\frac{A_{valve}}{A_{port}}\right)}^2\right)}}\frac{\Delta p}{{\left[\Delta p^2+\Delta p_{crit}^2\right]}^{1/4}},$$

where:

• C_d is the Discharge coefficient.

• A_valve is the valve open area, either between ports A and B or ports A1 and B.

• A_port is the Cross-sectional area at ports A and B.

• $$\overline{\rho }$$ is the average fluid density.

• Δp is the valve pressure difference. Depending on the flow path through the valve, this is either p_A – p_B, p_A1 – p_B, or the normalized pressure when switching between the two inlet ports, $$\widehat{p}$$, defined below.

The critical pressure difference, Δp_crit, is the pressure differential associated with the Critical Reynolds number, Re_crit, and is also dependent on the flow path through the valve:

$$\Delta p_{crit}=\frac{\pi \overline{\rho }}{8A_{valve}}{\left(\frac{\nu {\mathrm{Re}}_{crit}}{C_d}\right)}^2.$$

The critical Reynolds number is the flow regime transition point between laminar and turbulent flow.

Pressure loss describes the reduction of pressure in the valve due to a decrease in area, and can change if different valve flow paths have different areas. PR_loss is calculated as:

$$P{R}_{loss}=\frac{\sqrt{1-{\left(\frac{A_{valve}}{A_{port}}\right)}^2\left(1-C_d^2\right)}-C_d\frac{A_{valve}}{A_{port}}}{\sqrt{1-{\left(\frac{A_{valve}}{A_{port}}\right)}^2\left(1-C_d^2\right)}+C_d\frac{A_{valve}}{A_{port}}}.$$

Pressure recovery describes the positive pressure change in the valve due to an increase in area. If you do not want to capture this increase in pressure, set the Pressure recovery to Off. In this case, PR_loss is 1.

The opening area, A_valve, is also impacted by the valve opening dynamics.

Opening Parameterization

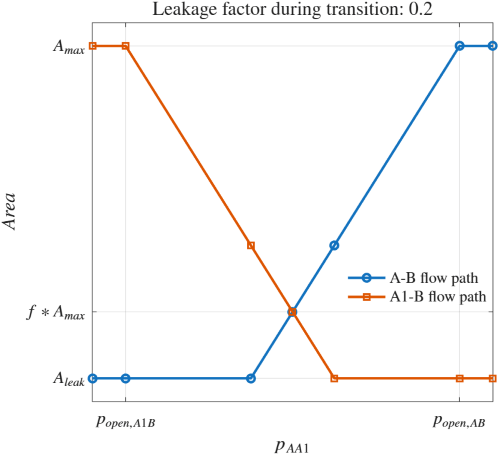

The linear parameterization of the valve area depends on the flow path through the valve. The dynamic area is based on a normally open path between ports A and B:

$$A_{valve,AB}=\widehat{p}\left(A_{\max }-A_{leak}\right)+A_{leak}.$$

The normalized pressure, $$\widehat{p}$$, is

$$\widehat{p}=\frac{p_{AA1}-p_{open,A1B}}{p_{open,AB}-p_{open,A1B}},$$

when p_AA1 is between the parameters Pressure at which A-B is fully closed and A1-B is fully open and Pressure at which A-B is fully open and A1-B is fully closed. If p_AA1 is below Pressure at which A-B is fully closed and A1-B is fully open, $$\widehat{p}$$ is 0. If p_AA1 is above Pressure at which A-B is fully open and A1-B is fully closed, $$\widehat{p}$$ is 1.

When the valve inlet switches from port A to port A1, the valve opening area is:

$$A_{valve,A1B}=A_{\max }+A_{leak}-A_{valve,AB}.$$

When the valve is in a near-open or near-closed position in the linear parameterization, you can maintain numerical robustness in your simulation by adjusting the Smoothing factor parameter. If the Smoothing factor parameter is nonzero, the block smoothly saturates the normalized control pressure between 0 and 1. For more information, see Numerical Smoothing.

Opening Dynamics

When you select Opening dynamics, the block applies a first-order filter to the valve area based on the Opening time constant parameter, τ. The valve area, A_valve, becomes the dynamic area, A_dyn,

$${\dot{A}}_{dyn}=\frac{A_{valve}-A_{dyn}}{\tau }.$$

When you select Opening dynamics, the valve does not respond to changes instantaneously. This figure shows an example valve area in response to a step in the valve input pressure with and without opening dynamics:

• When you clear Opening dynamics, the valve area mirrors the step change in the pressure at the input.

• When you select Opening dynamics and set Opening time constant to 0.1 s, the valve area asymptotically approaches its limit.

Specifying a nonzero value for the Smoothing factor parameter provides additional numerical stability when the valve area is changing and in the near-closed or near-open position. For more information, see Numerical Smoothing.

Examples

Hydrostatic CVT

Model, parameterize, and test a hydrostatic continuously variable transmission (CVT) with a swash angle shift command. When you run the plot function, it generates a comparison plot between the engine and the achieved rotational velocity in the hydraulic axial piston motor with respect to the time. Construction and agricultural equipment manufacturers use these transmissions.

• Open Model

Ports

Conserving

A — Liquid port

isothermal liquid

Entry port to the valve.

A1 — Liquid port

isothermal liquid

Entry port to the valve.

B — Liquid port

isothermal liquid

Exit port from the valve.

Parameters

Pressure at which A-B is fully closed and A1-B is fully open — Threshold pressure for fully open inlet A1

-0.01 MPa (default) | scalar

Pressure threshold between ports A and A1, below which the flow path between ports A1 and B is fully open and the flow path between ports A and B is fully closed.

Pressure at which A-B is fully open and A1-B is fully closed — Threshold pressure for fully open inlet A

0.01 MPa (default) | scalar

Pressure threshold between ports A and A1, above which the flow path between ports A and B is fully open and the flow path between ports A1 and B is fully closed.

Maximum opening area — Maximum valve area

1e-4 m^2 (default) | positive scalar

Maximum open area of the valve. This value is used to determine the normalized valve pressure and the valve opening area during operation.

Leakage area — Gap area when in fully closed position

1e-10 m^2 (default) | positive scalar

Sum of all gaps when the valve is in the fully closed position. Any area smaller than this value is saturated to the specified leakage area. This contributes to numerical stability by maintaining continuity in the flow.

Cross-sectional area at ports A and B — Area at conserving ports

inf m^2 (default) | positive scalar

Areas at the entry and exit ports A, A1, and B, which are used in the pressure-flow rate equation that determines the mass flow rate through the valve.

Discharge coefficient — Discharge coefficient

0.64 (default) | positive scalar

Correction factor accounting for discharge losses in theoretical flows.

Critical Reynolds number — Upper Reynolds number limit for laminar flow

150 (default) | positive scalar

Upper Reynolds number limit for laminar flow through the orifice.

Smoothing factor — Numerical smoothing factor

0.01 (default) | positive scalar in the range [0,1]

Continuous smoothing factor that introduces a layer of gradual change to the flow response when the valve is in near-open or near-closed positions. Set this value to a nonzero value less than one to increase the stability of your simulation in these regimes.

Pressure recovery — Whether to account for pressure increase in area expansions

Off (default) | On

Whether to account for pressure increase when fluid flows from a region of smaller cross-sectional area to a region of larger cross-sectional area.

Opening dynamics — Whether to introduce flow lag due to valve opening

Off (default) | On

Whether to account for transient effects to the fluid system due to opening the valve. Setting Opening dynamics to On approximates the opening conditions by introducing a first-order lag in the flow response. The Opening time constant also impacts the modeled opening dynamics.

Opening time constant — Valve opening time constant

0.1 s (default) | positive scalar

Constant that captures the time required for the fluid to reach steady-state conditions when opening or closing the valve from one position to another. This parameter impacts the modeled opening dynamics.

Dependencies

To enable this parameter, set Opening dynamics to On.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2020a

R2024b: Opening dynamics applies first order filter to valve area

When you select Opening dynamics, the block applies a first-order filter to the valve area. Previously, the block applied the first-order filter to the control pressure, which can cause opening dynamics that are more rapid than expected based on the value of the Opening time constant parameter.
