リアルタイムのワークフロー
このセクションでは、複数の Simscape Fluids ドメインにおけるリアルタイムのモデル構成の例を確認できます。
注目の例

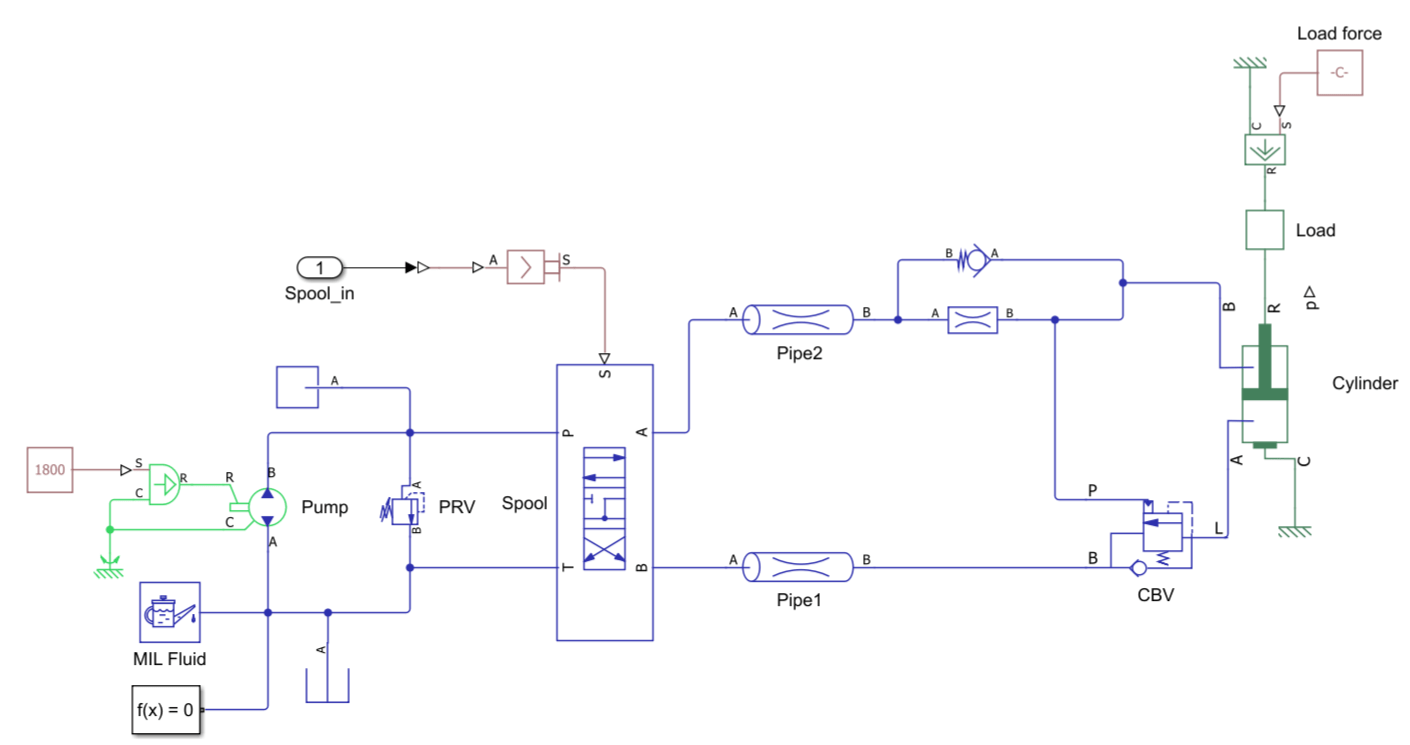

Configure a Hydraulic Lift Model for Real-Time Simulation
Configure a model for real-time simulation. To simulate in real-time, you must convert the model into a fixed-step model. In this example, you choose a step size, convert the model, examine the results, and test and adjust the model robustness.
Optimize Pressure Reducing Valve Model for Real-Time Simulation
Identify simulation slowdowns, resolve performance issues, and configure a Simscape Fluids™ model for real-time simulation. This example uses the Pressure Reducing Valve In Punching Operation model, PressureReducingValveInPunchingOperation which is called here as the original model. In this example, you measure the simulation time, identify the factors that affect simulation speed, optimize the model, and prepare the model for code generation.
