MCAL DIO Channel Group Read

R2026b

Read value of a specified DIO channel group identifier

Since R2026a

•

MCAL DIO Channel Group Read block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Embedded Coder Support Package for Renesas RH850 Microcontrollers / Microcontroller Abstraction Layer (MCAL) Blocks

Description

Use the MCAL DIO Channel Group Read block to read a subset of contiguous bits from a port, as specified by the channel group identifier. The channel group must be configured in the CDF (Configuration Description File).

Before using this block, configure pin modes and DIO channels, select the Configuration Description File (CDF) in Simulink model configuration, and then integrate the block into your target-specific model for code generation and deployment. For information on configuring correct and portable Digital Input/Output (DIO) workflow using the MCAL DIO module in Simulink and AUTOSAR-based projects, see Getting Started With DIO Using MCAL.

Examples

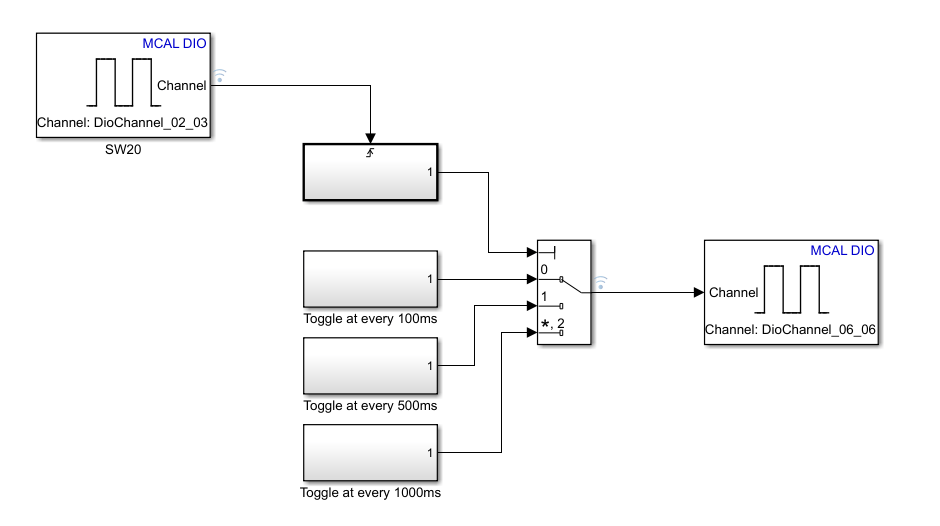

Getting Started with MCAL DIO Blocks on Renesas RH850 Microcontrollers

Control a digital output on a Renesas RH850/U2A16 Microcontroller using the AUTOSAR MCAL DIO Channel Write block in Simulink. The example uses an onboard LED to demonstrate how MCAL DIO configuration and model-based design work together to generate, deploy, and run the model on RH850 hardware to drive an LED.

• Open Live Script

Ports

Output

ChannelGroup — Channel group value

scalar

Reads a subset of contiguous bits from a port and outputs the value using the selected data type.

Data Types: uint16 | uint8 | uint32

Parameters

Channel group identifier — Specific group of digital input/output channels to read

'DioChannelGroup' (default)

Specify the unique identifier for the DIO channel group to be read. Click Get dio channel groups to view and select from the list of available channel group names configured in the CDF.

Programmatic Use

Block Parameter: Port

Data type — Select output data type

uint16 (default) | uint8 | uint32

Select the output data type for the channel group value.

Programmatic Use

Block Parameter: PortDataType

Sample time — Frequency at which block reads value

-1 (default) | non-negative real value

Specify how often (in seconds) the block reads the logical value. Enter a value greater than zero. When you specify this parameter as -1, Simulink^® determines the best sample time for the block based on the block context within the model.

Programmatic Use

Block Parameter: SampleTime

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"rh850mcallib/MCAL DIO Channel Group Read"

Example: add_block("rh850mcallib/MCAL DIO Channel Group Read","myModel/myBlock",MakeNameUnique="on")

Version History

Introduced in R2026a
