randtop

Random layer topology function

Syntax

pos = randtop(dimensions)

Description

randtop calculates the neuron positions for layers whose neurons are arranged in an N-dimensional random pattern.

pos = randtop(dimensions) takes one argument:

dimensions

Row vector of dimension sizes

and returns an N-by-S matrix of N coordinate vectors, where N is the number of dimensions and S is the product of dimensions.

Examples

collapse all

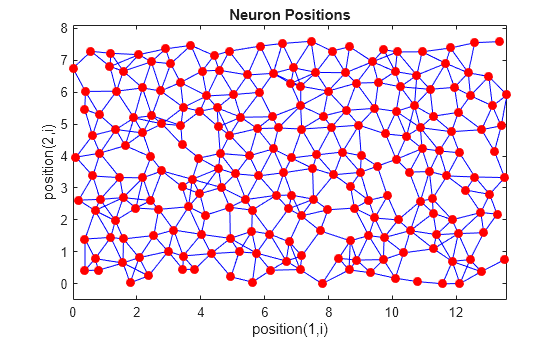

This shows how to display a two-dimensional layer with neurons arranged in a random pattern.

pos = randtop([18 12]);
plotsom(pos)

See Also

| |

Introduced before R2006a
